Tekmar 507 User Brochure

- User Brochure
Thermostats 507 - 509

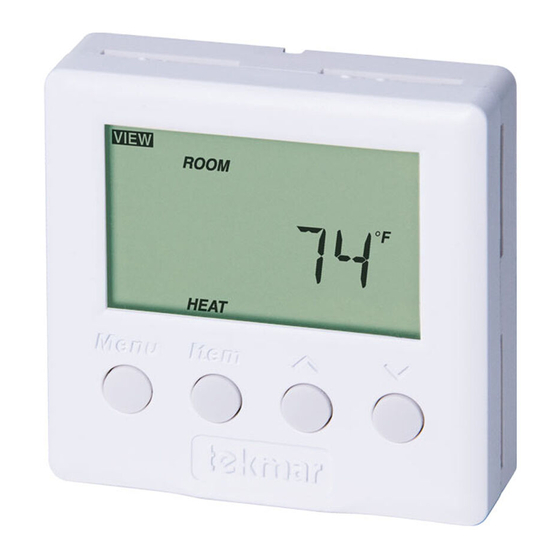

Congratulations on the installation of your tekmar Control Systems' thermostat. This thermostat has been
designed with state of the art technology and packaged in a compact and attractive enclosure. The large
display and easy to use buttons make this thermostat extremely user friendly. This tekmar Control Systems'
thermostat is designed to increase the comfort level of your home. At the same time these thermostats have
been designed to be simple to use.
Table of Contents
Display Operation....................................................... pg 1
Viewing the Current Temperature .............................. pg 2
Setting the Temperatures ........................................... pg 2
Display / Keypad Operation
The thermostat's display has four distinct fields. These fields are the Menu field, the Item field, the Number field and the Status
field. The four buttons on the face of the thermostat are used to navigate through the menus and items to view and/or adjust the
desired settings.
Displays the
current
menu
Displays the current
status of the
thermostat's inputs,
outputs and operation
Away Override
Units of Display........................................................... pg 2
Setting the Mode of Operation ................................... pg 2
Displays an abbreviated
name of the selected item
AWAY Y Y
Displays the current value
of the selected item
Selects Menus, Items
and adjusts settings
1 of 2
............................................ pg 2
(508 Only)
Display Symbols
Warning
Displays when an error exists.
Access Level (508 Only)
Displays when in the user
access level.
Heat One
Displays when the heat contact
is on.
