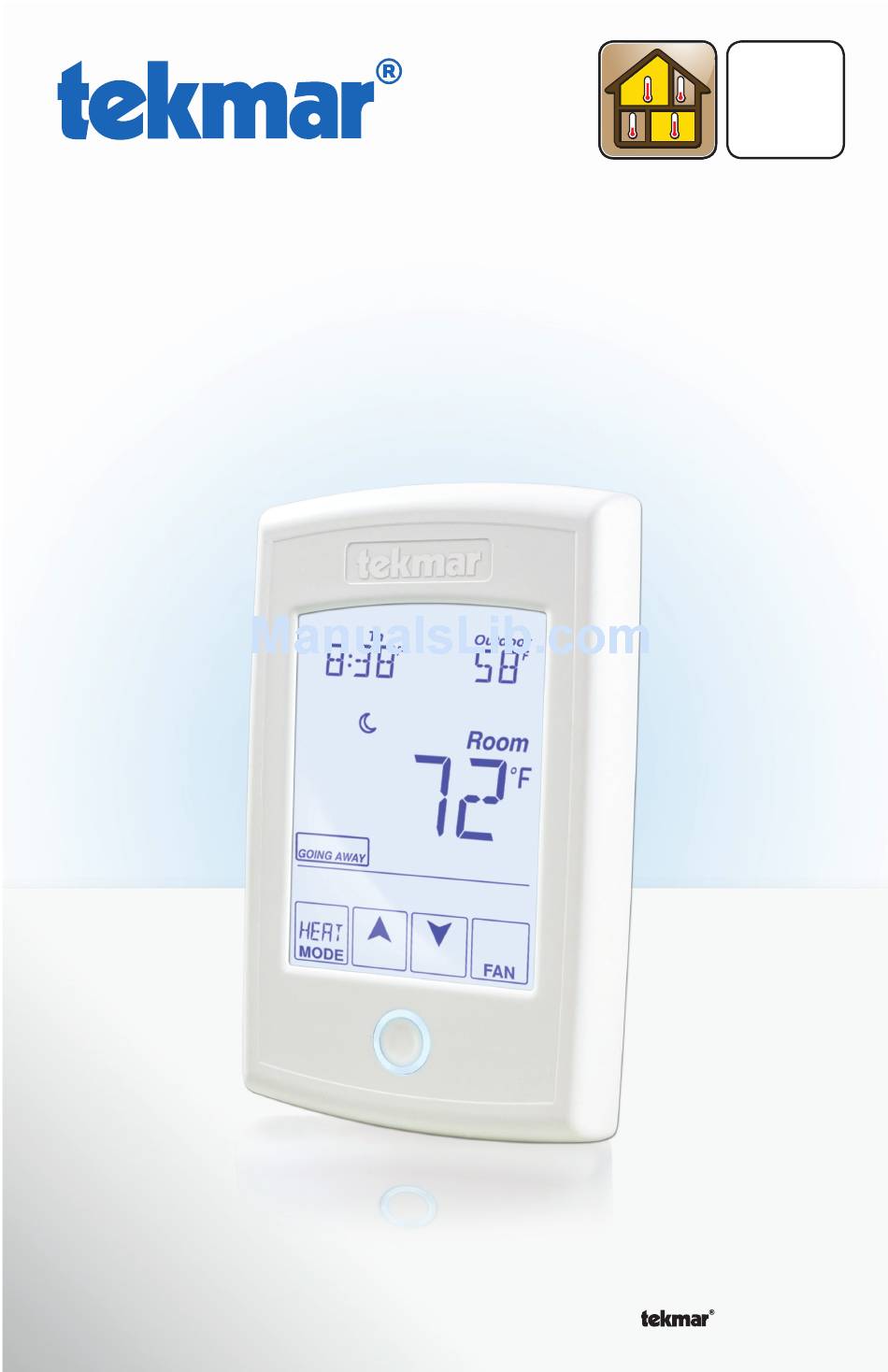

Page 1: User Manual
554 _ U 02/15 tekmarNet ® Thermostat 554 Zoning Replaces: New User Manual 1 of 12 A Watts Water Technologies Company © 2015 554_U - 02/15... - Page 2 Please visit tekmarControls.com for more detailed information on this or any other tekmar product. The information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer.
-
Page 3: Warning Symbol
Display Symbols This thermostat displays symbols on its screen to indicate what mode it is in, what temperature it is operating at, or what equipment it is trying to turn on. This section describes each of those symbols. HEAT ON Heat is turned on. -
Page 4: Adjust The Temperature
Adjust the Temperature To change the heating or cooling set temperature, touch the arrows to select a preferred temperature setting. Press the Home button to accept the setting or leave the screen untouched for several seconds. To toggle between changing the heating or cooling setting, press the H <>... -
Page 5: Mode Of Operation
Mode of Operation This thermostat has 4 operating modes: Heat, Cool, Auto and Off. Touch the Mode key on the screen to select the desired mode of operation. Auto mode will automatically switch between heating and cooling as required. The temperature is not adjustable while the thermostat is off. -
Page 6: Access Levels
Programmable Schedule — Day and Night This thermostat is capable of running at a lower temperature setting when you are asleep or out of the building. When the schedule setting is on, day and night temperature settings will display on the screen. If you adjust the temperature while the sun is displayed, the day setting changes. - Page 7 Program Menu Settings To Enter the Programming Menus - - - - - - - - - - - - -- -- -- - -- - - -- - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Press and hold the Home button for 3 seconds to enter the programming menus.
-
Page 8: Set Temp Menu
Screen Clean Menu Entering the Screen Clean menu gives you 30 seconds to clean the thermostat and display with a moist cloth. Do not use solvents to clean the thermostat. Set Temp Menu Entering the Set Temp menu allows you to permanently change both the day and night temperature settings for both heating and cooling. - Page 9 Time Menu Settings Set date, month and year Required for daylight savings time. Daylight Save Automatic daylight saving time update for the spring and fall. Time Mode Select either 12-hour or 24-hour time format. Clock Select on to display the time clock in the Home menu (available when schedules are not used).
- Page 10 Schedule Menu Settings (Continued) The schedules can be repeated every: • 24 hours • 7 days (week) A 7-day schedule allows a unique time to be set to change the temperature for each day of the week. The schedule also includes a “SKIP” option that allows the programmable schedule to skip a temperature change and remain at the previous temperature setting.
-
Page 11: Monitor Menu
Monitor Menu The monitor menu allows you to view the following temperatures and running hours: • Outdoor temperature highs and lows • Room temperature highs and lows • Floor temperature highs and lows (requires floor sensor to be installed) • Filter Hours = Number of hours since the air filter was last replaced •... -
Page 12: Frequently Asked Questions
More detailed information can be found in this product’s Installation and Operation Manual (554_D) at tekmarControls.com Product design, software and literature are Copyright ©2015 by tekmar Control Systems Ltd., A Watts Water Technologies Company. Head Offi ce: 5100 Silver Star Road, Vernon, B.C.
