Tekmar U 508 User Brochure

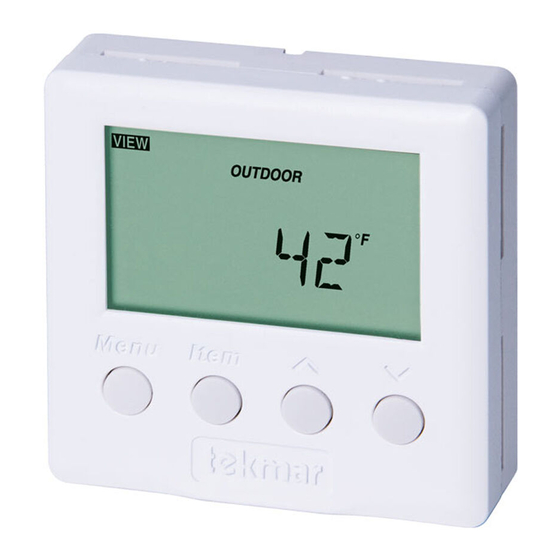

Thermostat 508
Congratulations on the installation of your tekmar Control Systems' thermostat. This thermostat
has been designed with state of the art technology and packaged in a compact and attractive
enclosure. The large display and easy to use buttons make this thermostat extremely user
friendly. This tekmar Control Systems' thermostat is designed to increase the comfort level of
your home. At the same time these thermostats have been designed to be simple to use.
Table of Contents
Display / Keypad Operation .................pg 1
Viewing the Current Temperature ........pg 2
Setting the Temperatures ....................pg 2
Away Override .....................................pg 3
Display / Keypad Operation
The thermostat's display has four distinct fields. These fields are the Menu field, the Item field,
the Number field and the Status field. The four buttons on the face of the thermostat are used
to navigate through the menus and items to view and/or adjust the desired settings.
Displays the
current
menu
Displays the current
status of the
thermostat's inputs,
outputs and operation
- User Brochure
Canceling the Away Override ..............pg 3
Units of Display ....................................pg 3
Setting the Mode of Operation ............pg 3
Warranty ..............................................pg 4
Displays an abbreviated
name of the selected item
AWAY
Selects Menus, Items
and adjusts settings
1 of 4
U 508
Displays the current value
of the selected item
© 2007 U 508 - 05/07
05/07
