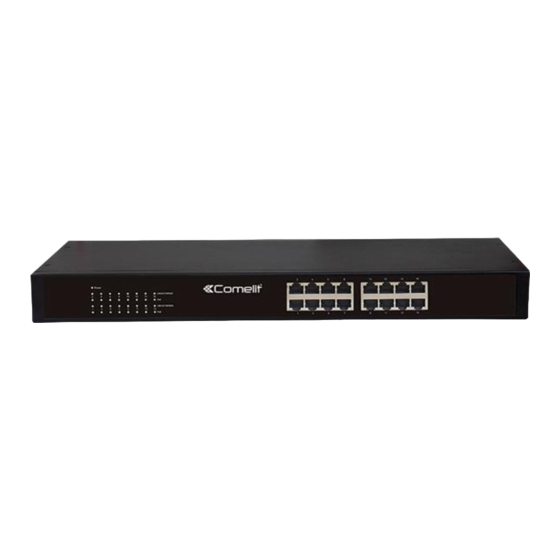

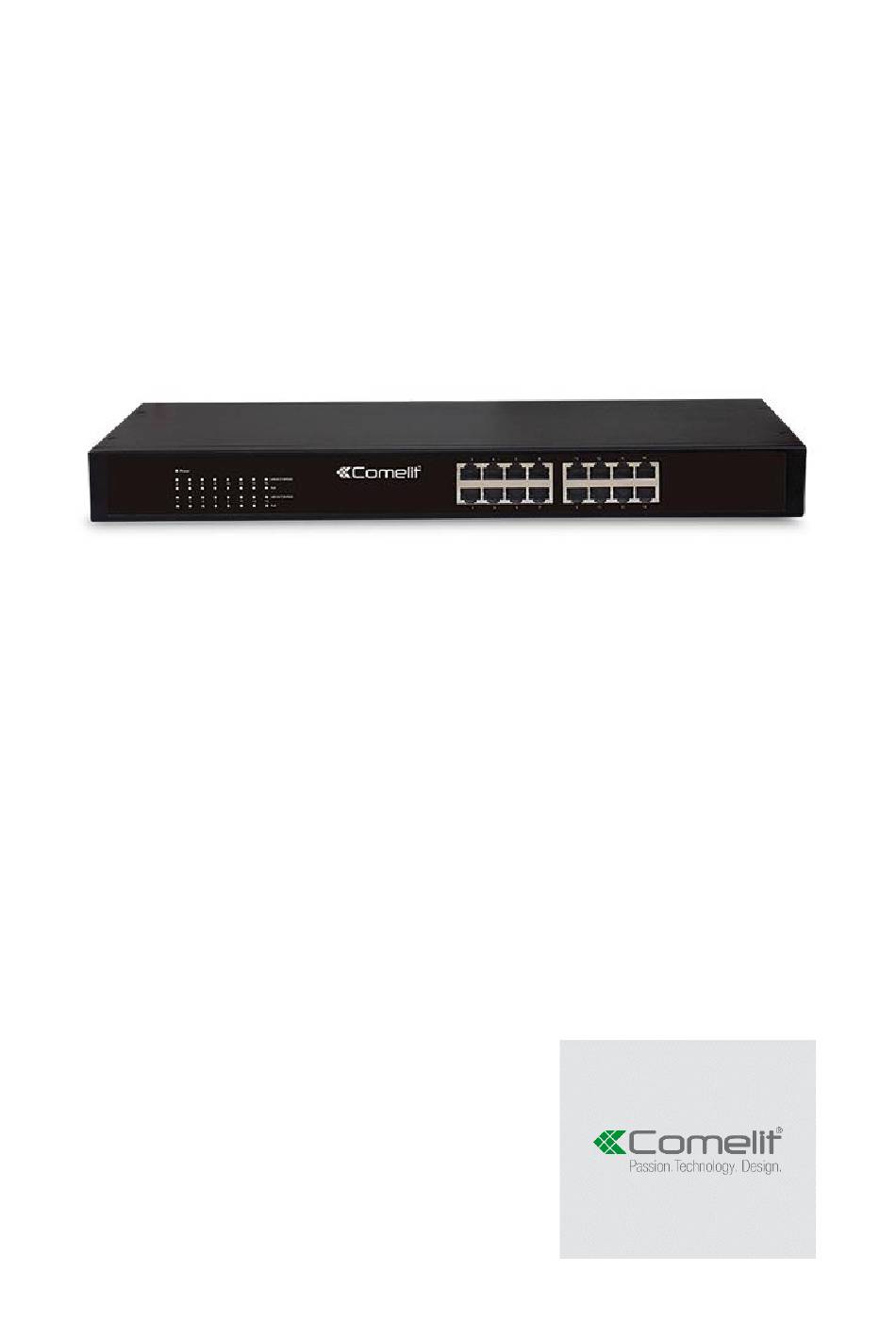

- Page 1 SWITCH, 16 POE GIGABIT PORTS ART. IPSWP160A Please read this manual thoroughly before use and keep it for future reference...
- Page 2 Table of Contents 1 Product Introduction .................. 2 1.1 Product Overview ................2 1.2 Front and rear panel description ............2 1.3 LED Indicator description ..............3 1.4 Switch Features and Specifications ............. 4 2 Hardware installation .................. 5 2.1 Power cord ..................5 2.2 Connect Computer (NIC) to the switch ..........
- Page 3 1 Product Introduction 1.1 Product Overview Thank you for choosing our company's switch, this product is a 16-port 10/100/1000M Unmanaged PoE Gigabit Ethernet switch. The product is desktop design, all-metal chassis and elegant appearance. This product is easy to install, can rack, plug and play, no management; dynamic LED indicator to monitor switch status and troubleshooting work.
- Page 4 Rear panel: 1.3 LED Indicator description Switch indicators includes Link / Act/Speed, PoE, power status indicator. Link / Act, PoE light is green, the power status indicator is red. You can learn the switch work status by LED indicators. The following table shows these indicators’...
- Page 5 1.4 Switch Features and Specifications Features: Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE ● 802.3af ,IEEE802.3at standards Supports IEEE802.3x flow control for full-duplex mode and backpressure ● for half-duplex transfer mode Support Storage - forward technology ● 16 port 10/100/1000Mbps Auto -negotiation MDI/MDIX RJ45 ports ●...
- Page 6 2 Hardware installation Before installing the switch, make sure that the following "packing list" listed OK. If any part is lost and damaged, please contact your local agent immediately. In addition, make sure that you have the tools install switches and cables by your hands.
- Page 7 2.3 Switch Cascade Connection The any port of switch can automatically identify straight cable and cross cable, so no matter which port can be cascaded. Among switch, another switch, hub can be connected by many ways, either connect any port of this switch to any port of another switch by straight cable or you can also connect any port of one switch to any port of another switch by unshield twisted pair RJ45, realize all switch cascade connection.
- Page 8 B_RX - (Receive） PoE Power+ PoE Power+ 2.6 Notes Switch support auto-negotiation function, while connecting other network devices, the port LED indicators status depends on the negotiation results of the operation mode, please refer to previous page status indicator table. If the connection is OK, but the indicator does not light, please try to check if other network devices, network cable is OK.
