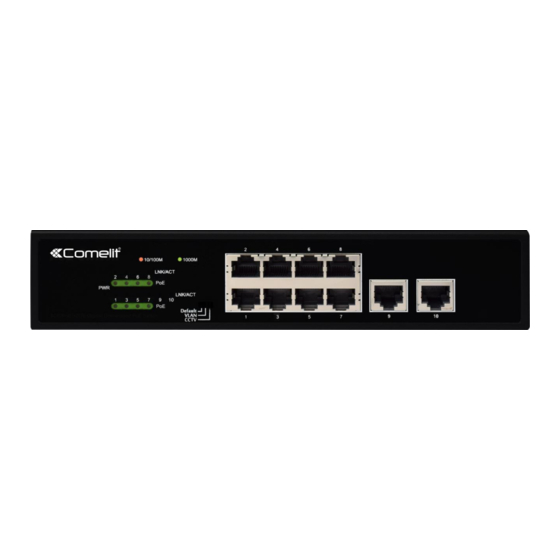

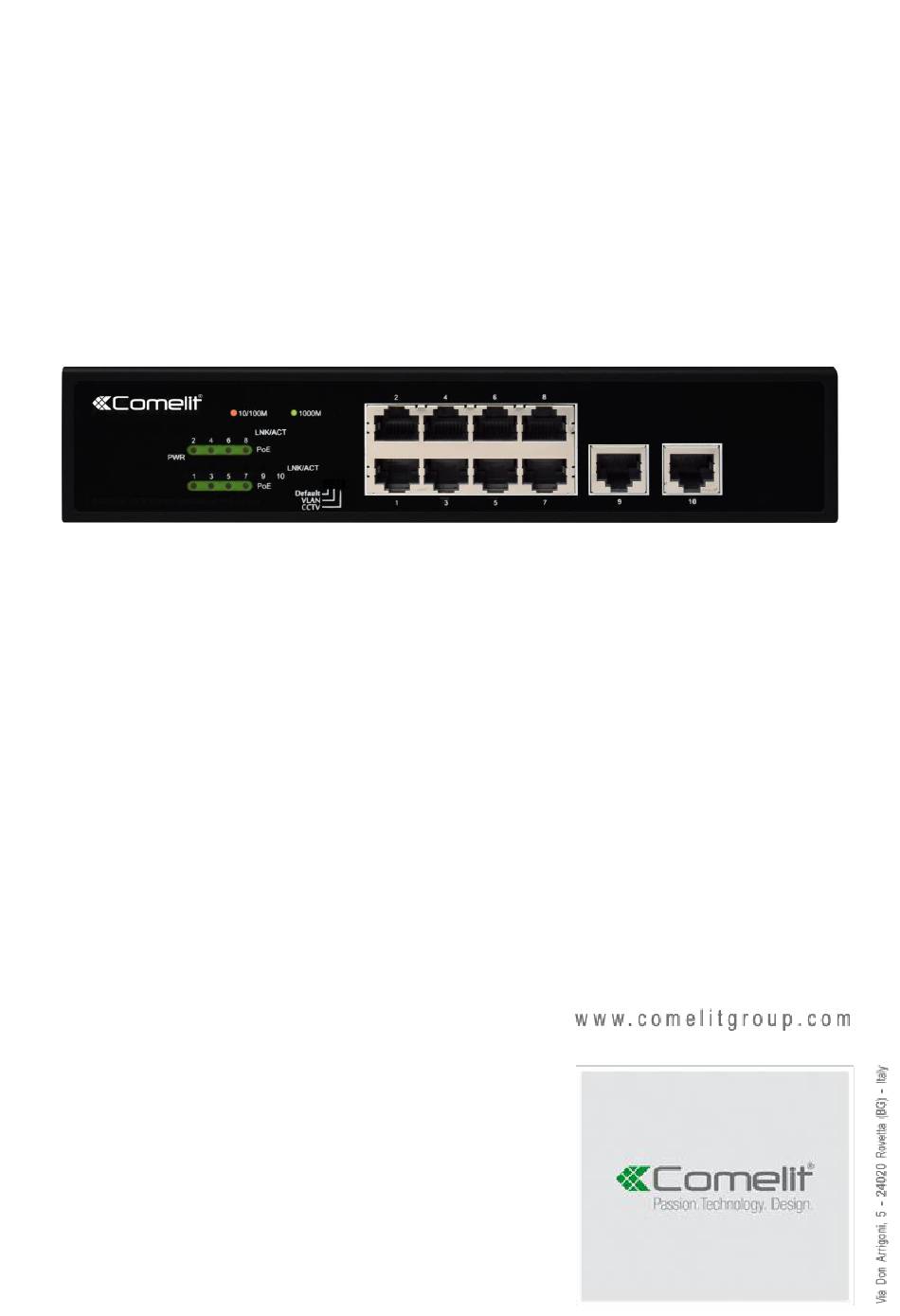

- Page 1 SWITCH, 8 (PoE) + 2 GIGABIT PORTS ART. IPSWP10N01A Please read this manual thoroughly before use and keep it for future reference...
- Page 2 Package contents Check the contents of your package: PoE switch x 1 User manual x1 Power cord x 1 Accessories If any part is lost and damaged, please contact your dealer. Introduction The device have 8 (PoE) +2 Fast uplink 10/100/1000Mbit/s RJ45 ports that increase the speed of your network server and backbone connections, made Gigabit connection to a server or uplink a network.
- Page 3 OFF: no device connected to the corresponding port. ON: the link through the port is successfully established at Green 1000Mbit/s. Blink: the switch is sending or receiving data. OFF: no PoE (PD) connected. Orange ON: PD successfully connected to the port. Blink: abnormal PoE supply.
- Page 4 Wall-mounted installation Fix the switch on the wall with 2 screws Turn ON the switch When powered, the switch start automatically, the led lights up as follows: the Power led lights up the data led blink for one second (represents the system reset) Note: make sure that the voltage is correct before power ON, otherwise the switch will be damaged.
