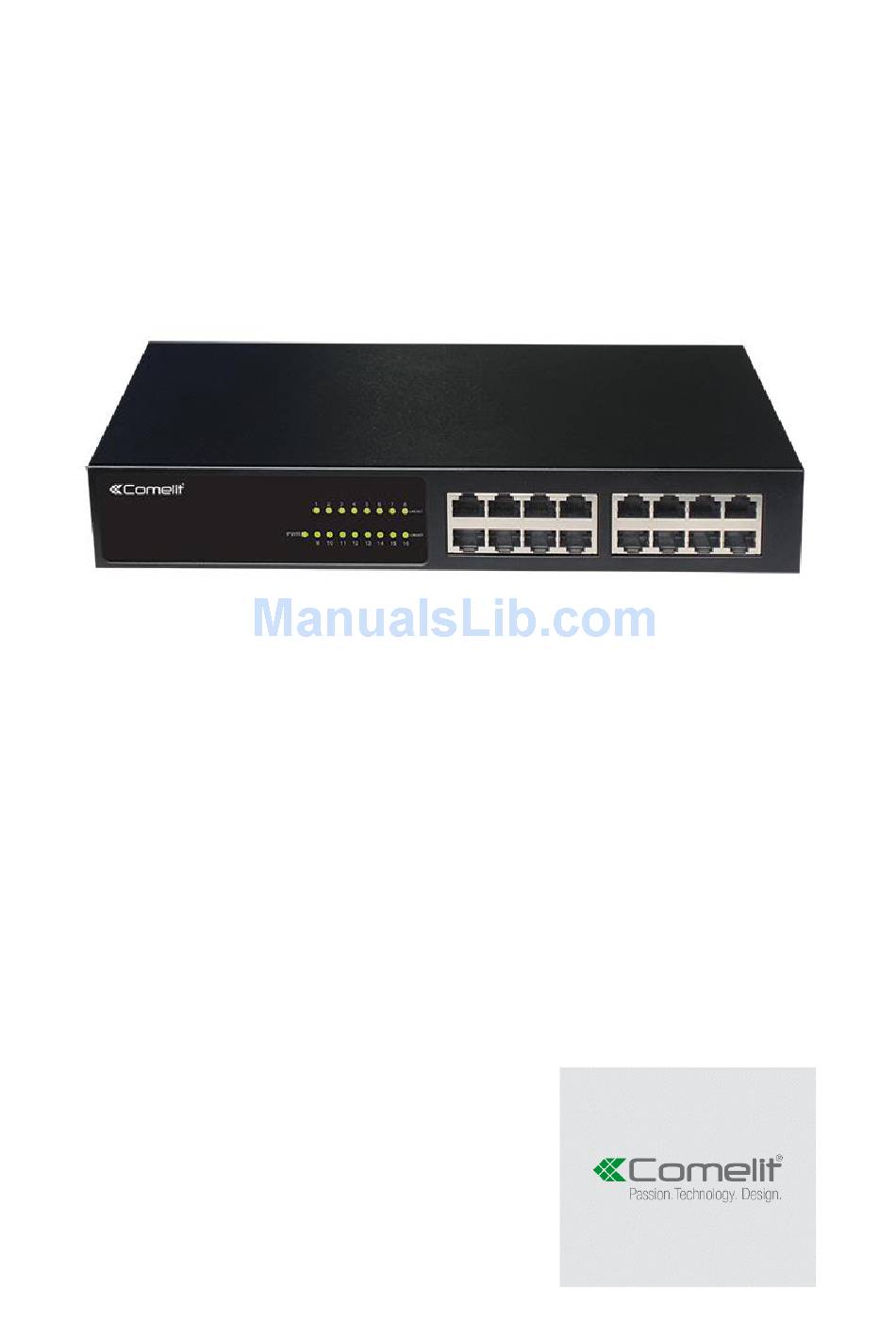

  • Page 1 SWITCH, 16 GIGABIT PORTS ART. IPSWC160A Please read this manual thoroughly before use and keep it for future reference...

  • Page 2: Product Introduction

    Product Introduction Congratulations on your purchase of the 16-Port 10/100/1000Mbps Green Switch! The 10/100/1000Mbps switch is an easy-to-install network switch which helps you to extend your network structure quickly and reliably. All Sixteen ports are auto speed negotiating, and have automatic MDI/MDI-X crossover detection, so you don't have to worry about the cable type.
  • Page 3 Figure 1-1 Front Panel view of the Switch  10/100M/1000Mbps Ports (Port 1~16): these ports support 10/100/1000Mbps, and can operate in Half/Full Duplex transfer modes. These ports also support automatic MDI/MDI-X crossover detection, giving true “plug and play” capability.  LED Indicators: comprehensive LED indicators display the status of the Switch and the network (see Section 1.2.3).

  • Page 4: Installing The Switch

     Port 1~16 10/100/1000Mbps Status LEDs Status Color Solid Blinking The respective port is connected The port is LINK/ but no activities transmitting or Green on the receiving data at link 10/100/1000Mbps 10/100/1000Mbps Ethernet network 2 Installing the switch The site where you place the switch may greatly affect its performance. 2.1 Installation Please follow the below guidelines to install the switch: ...

  • Page 5: Power On The Switch

    2.4 Power ON the switch The switch has a universal power supply ranging from 100V to 240V AC, 50 ~ 60Hz power source. The AC power connector is located at the rear of the unit. The switch’s power supply will adjust to the local power source automatically. NOTE: Do not cover or put anything on or surrounding the switch while the Switch is operating.

  • Page 6: Technical Specifications

    turned ON.  Check the network cable; make sure it is properly connected to the switch and the network device.  Check the network cable; make sure the UTP cables comply with the specifications described in section 5. 5 Technical Specifications Standards ...

  • Page 7: Rack Mount

    Rack Mount  11-Inch Rack-Mountable with mounting kits Dimensions  L x D x H: 280 x 180 x 44.3 mm (11 x 7 x 1.74 in) Weight  1460 g Physical and Environmental  Power Input: 100~240V AC, 50~60Hz ...
