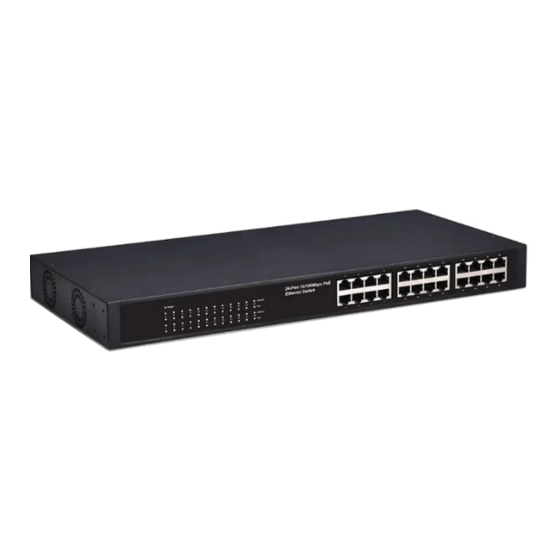

- Page 1 TECHNICAL MANUAL Power Switch 24PoE+2G 10/100/1000 Mbps 24 non-standard SPOE 24 VDC ports switch art. IPSWSP24A...
- Page 2 • Comelit Group S.p.A. accepts no liability for any purpose other than the intended use, or failure to observe the indications and warnings contained in this manual / instruction sheet. Comelit Group S.p.A. reserves the right to change the information provided in this manual / instruction sheet at any time and without prior notice.
- Page 3 • Maximum power available 24W for each POE port • Use SPOE ports to connect the art. 6804W, 6814W, 6844W, 6854W, 6944W, SHMAN010W. • Connections among uplink ports and 1440 only with Comelit red cable 1449. Technical specifications Product name...
- Page 4 Basic wiring diagram IPSWSP24A 110-240 V IPSWSP24A Use SPOE ports to 110- 240 V connectthe art. 6804W, 6814W, 6844W, 6854W, 6944W, SHMAN010W. 6804W 6844W ORANGE 6814W WHITE ORANGE 6854W GREEN WHITE GREEN 6944W SHMAN010W 1595 100-240 V TX TX RX RX...
- Page 5 110-240 V • Use SPOE ports to connect the IPSWSP24A 110- 240 V art. 6804W, 6814W, 6844W, 6854W, SHMAN010W 6944W, • Connections among uplink ports and 1440 only with Comelit red 6804W cable 1449. 6844W 6814W 6854W ORANGE WHITE ORANGE...
- Page 6 Variant with PoE standard switch IPSWSP24A 110-240 V SPOE ports IPSWSP24A 110- 240 V connect the art. 6804W, 6814W, 6844W, 6854W, SHMAN010W 6944W, 6804W 6844W 6814W 6854W 6944W SHMAN010W STANDARD SWITCH BROWN & WHITE BROWN BLUE & WHITE BLUE ORANGE...
