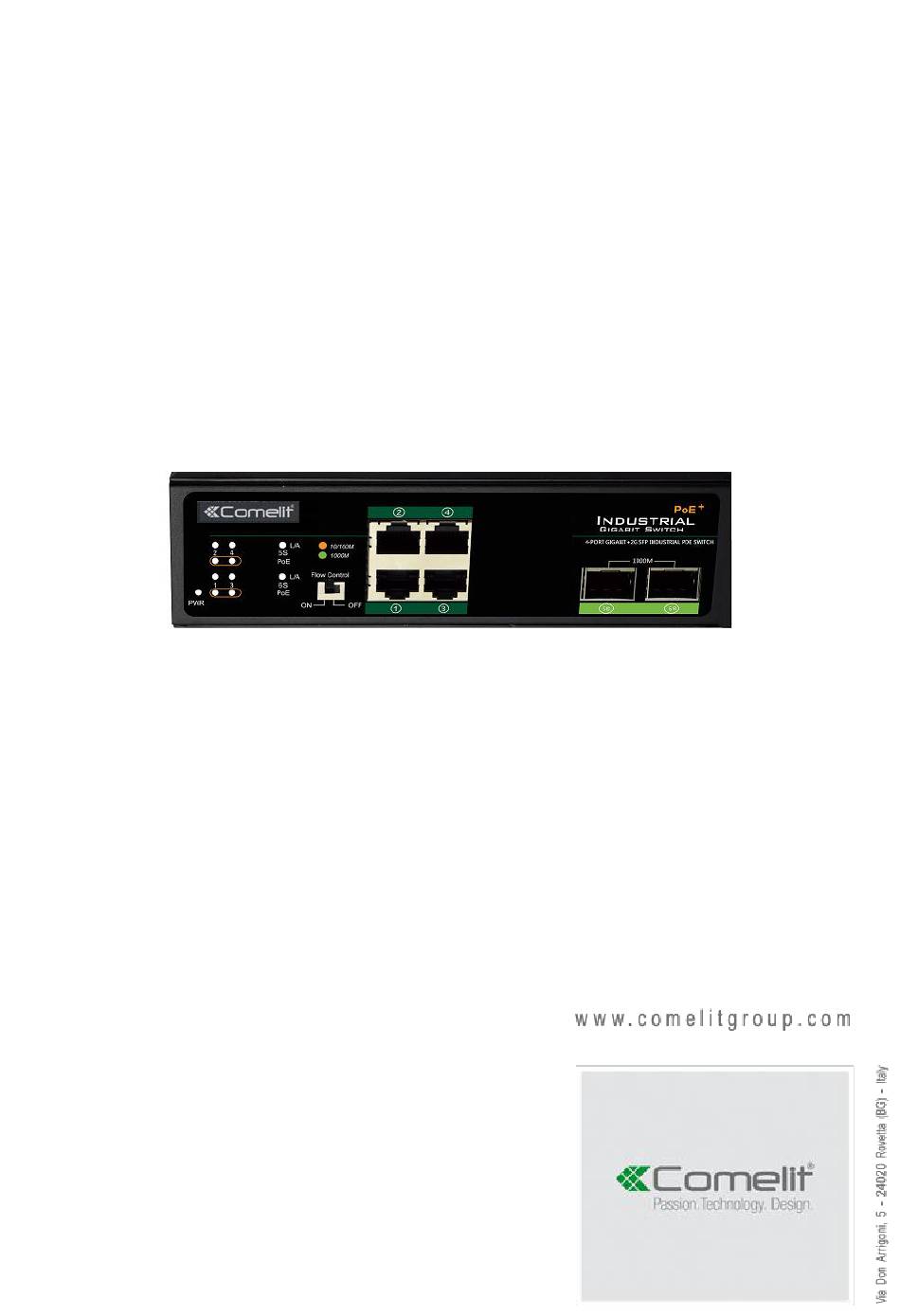

- Page 1 SWITCH, 4 (PoE) GIGABIT PORTS + 2 SFP SLOTS ART. IPSWP06N02A Please read this manual thoroughly before use and keep it for future reference...
-
Page 2: Package Contents
Package contents Check the contents of your package : Switch x 1 User manual x 1 If any part is lost and damaged, please contact your dealer. Introduction The device have 4 (PoE) RJ45 ports + 2 SFP slots 10/100/1000Mbit/s. The PoE ports (1-4) automatically detect and power the IEEE 802.3af/at compliant Powered Devices (PD). - Page 3 ON: the link through the port is successfully established at 10/100Mbit/s. Blink: the switch is sending or receiving data. Orange OFF: no PoE (PD) connected. ON: PD successfully connected to the port. Blink: abnormal PoE supply. Rear panel The rear panel have the terminals to connect the DC power input (standard redundant power backup 5 pinhole terminals).
-
Page 4: Specifications
Turn ON the switch When powered, the switch start and reset automatically Specifications IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, Supported standards IEEE802.3at, IEEE 802.3ab, IEEE 802.3z 10BASE-T: UTP category 3,4,5 cable (≤100m) 100BASE-TX: UTP category 5 cable (≤100m) 1000BASE-T: UTP category 5e, 5 cable（≤100m） Network cables 1000BASE-TX : Gigabit SFP optical RJ45 electrical module 1000BASE-SX : Gigabit SFP multimode (850nm, LC, DDM)
