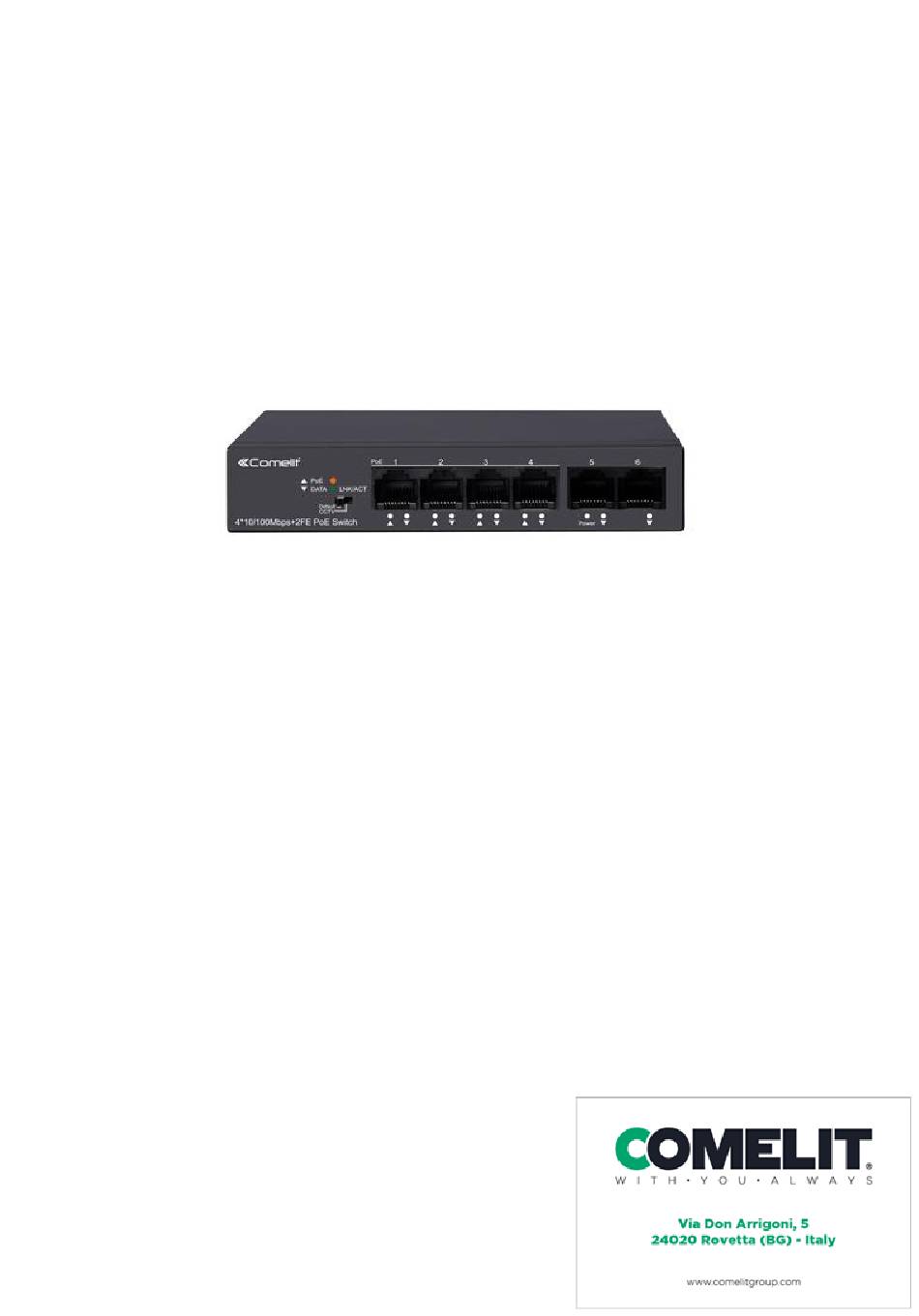

- Page 1 IPSWP06N100A SWITCH 4 POE PORTS + 2 UPLINK 10/100 Please read this manual thoroughly before use and keep it for future reference...
-
Page 2: Package Contents

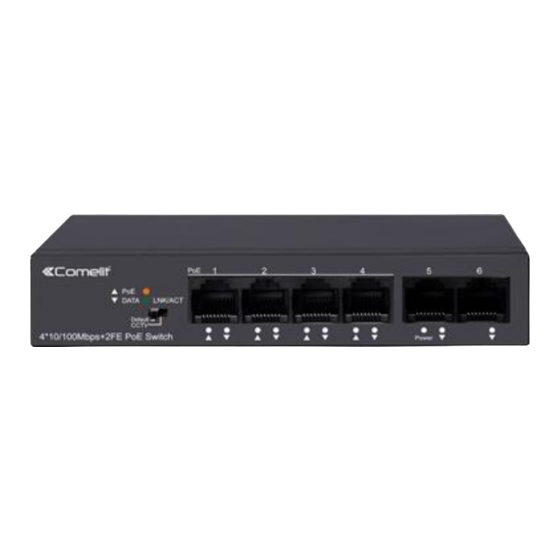

Package Contents Check the following contents of your package: ⚫ PoE Switch x 1 ⚫ User Guide x 1 ⚫ Power Cord x 1 Hardware Description Front Panel The Front Panel of 4*10/100Mbps+2FE Consists of 6-Port 10/100Mbps Ethernet RJ45 Ports. The LED indicators are also located on the panel. - Page 3 Light: There is a PoE PD connected to be port, which supply power successfully. Blink: Indicates port abnormal power supply. Rear Panel The rear panel of 4+2 100Mbps indicates AC inlet power socket, Select different power supplies corresponding to different voltage inputs as follows: Note: the lightning protection grounding column is located on the left side of the rear panel, please make sure to use the conductor to ground in case of lightning!
-
Page 4: Specifications
Turn on the switch The PoE switch can be used with AC power supply. Powering on the switch, it will automatically initialize and its LED indicators will respond as follows: Firstly, the Power LED indicator will light up. Then, the data LED indicators will flash for one second, which represents a resetting of the system. Specifications Model 4*10/100Mbps+2FE PoE Switch... - Page 5 - 4 -...
