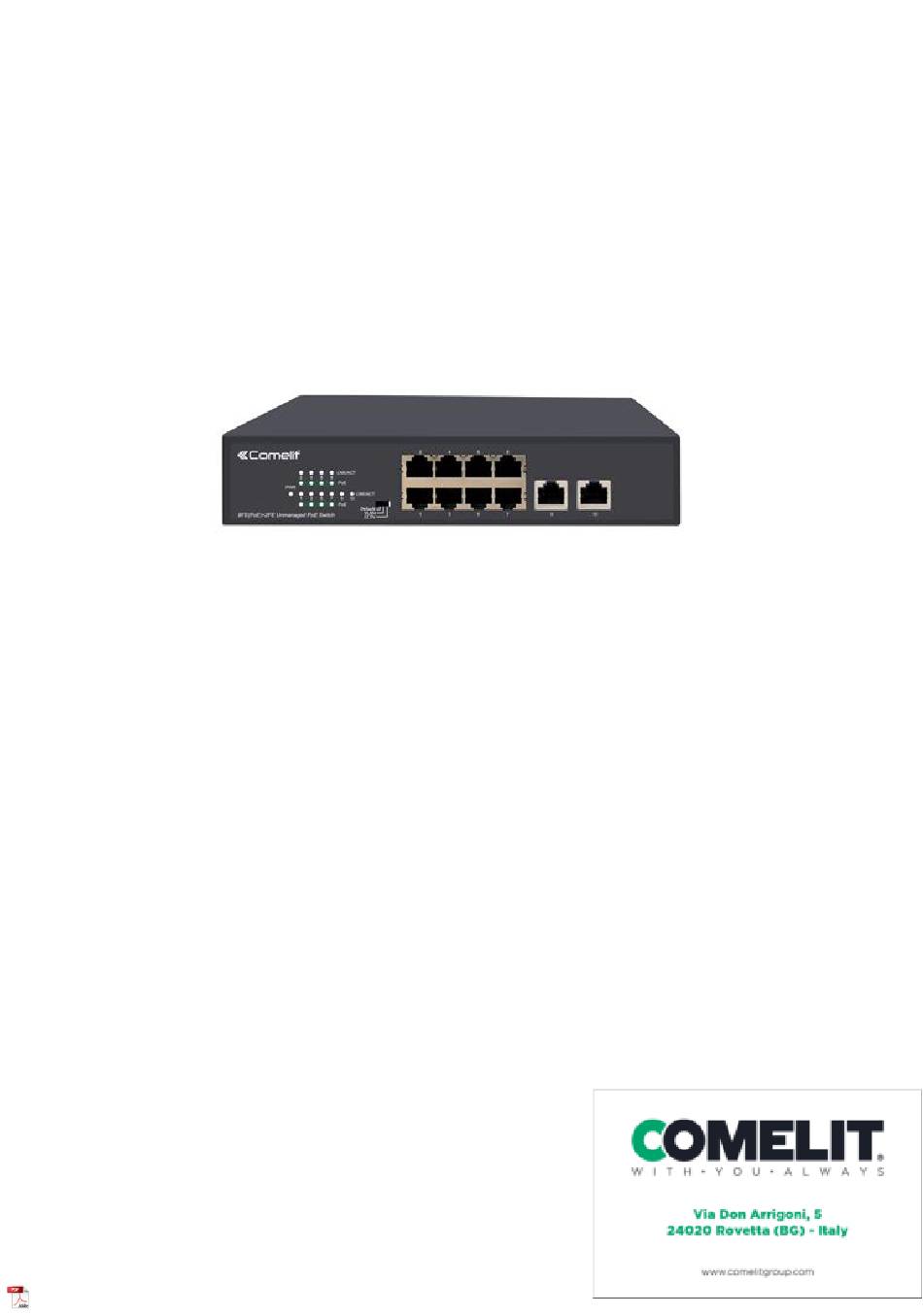

- Page 1 IPSWP08N100A SWITCH 8 POE PORTS + 2 UPLINK 10/100 Please read this manual thoroughly before use and keep it for future reference...

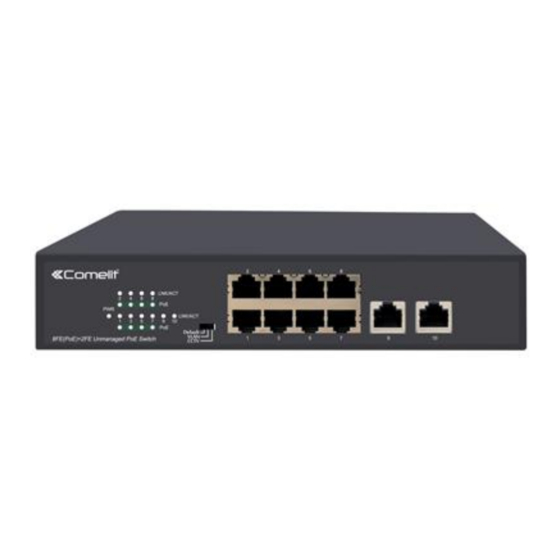

- Page 2 Package Contents Check the following contents of your package: ⚫ PoE Switch x 1 ⚫ User Guide x1 ⚫ Power Cord x1 ⚫ Accessories(Rubber Feet*4) Hardware Description Front Panel DIP Switch Default: the factory default mode, can normal communication between port 1~10. VLAN: 1-8 port can be isolated each other but 1-8 port can connect to 9/10 port after open VLAN to stop broadcast Storm to increase forwarding rate of frame.
- Page 3 LED indicator Color Function Off: No Power supply. Green Light: Indicates the switch has power. Off: No device is connected to the corresponding port. Light: Indicates the link through that port is successfully Green Established at 10/100Mbps. LNK/ACT Blink: Indicates that the Switch is actively sending or Receiving data over that port.
- Page 4 ⚫ Before cleaning the switch, unplug the power plug of the switch first. Do not clean the switch with wet cloth or liquid; ⚫ Do not place the switch near water or any damp area. Prevent water or moisture from entering the switch chassis;...
- Page 5 Turn on the switch Connect the AC power cord into the rear of the switch and to an electrical outlet (preferably one that is grounded ). When the switch is power on, the LED indicators flash for one second, which represents a resetting of the system. The Power LED indicator turns on green.
