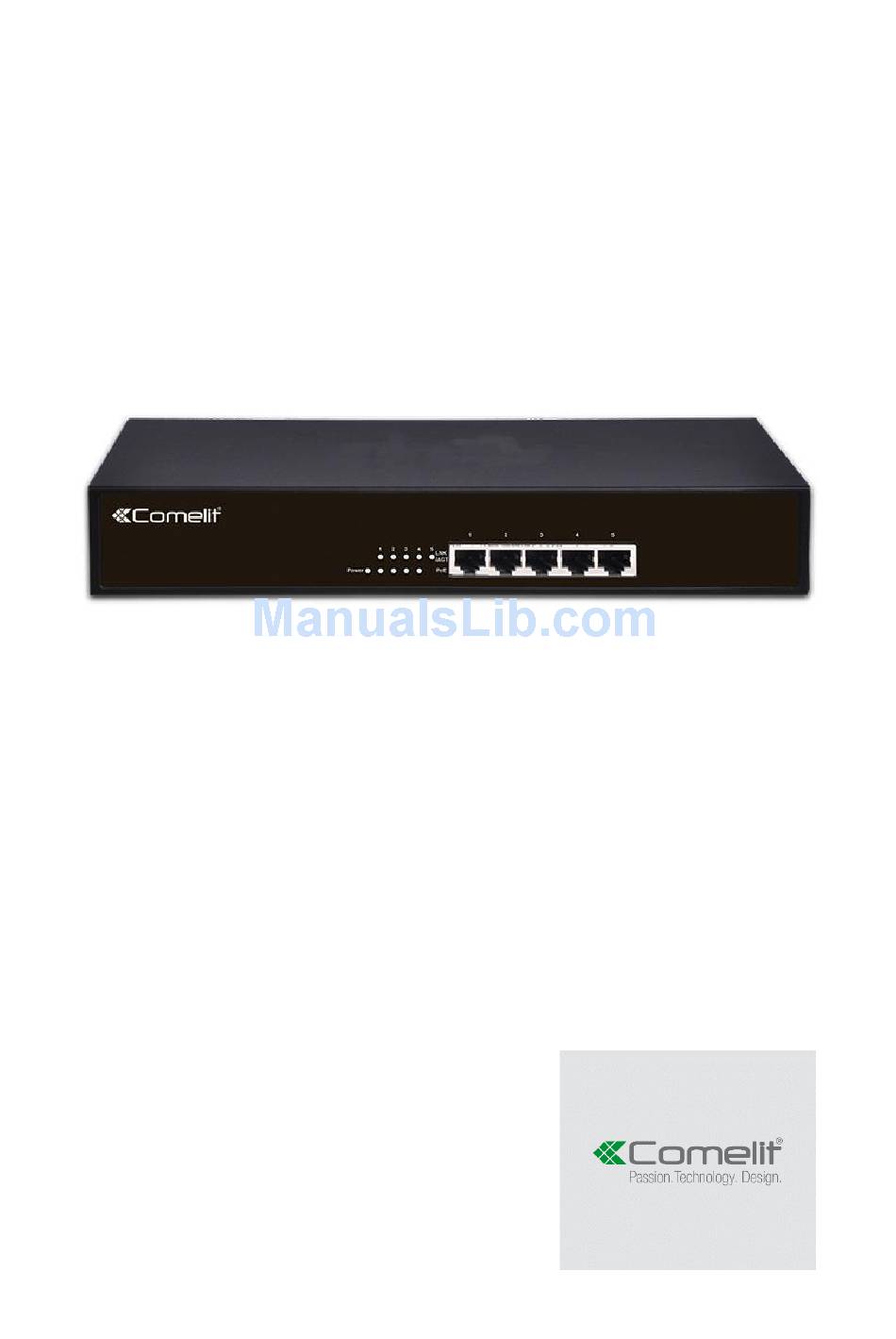

- Page 1 NETWORK SWITCH, 5 GIGABIT PORTS (4 POE) ART. IPSWP050A Please read this manual thoroughly before use and keep it for future reference...
-
Page 2: Table Of Contents
PoE Ethernet Switch Directory 1 Product Introduction .................. 2 1.1 Product Overview ....................2 1.2 Front and rear panel description ................2 1.3 LED Indicator description ..................3 1.4 Switch Features and Specifications ............... 4 2 Hardware installation .................. 6 2.1 Power cord ...................... -
Page 3: Product Introduction
PoE Ethernet Switch 1 Product Introduction 1.1 Product Overview Thank you for choosing our company's switch, this product is a 5-port 10/100/1000M Unmanaged PoE Ethernet switch. The product is desktop design, all-metal chassis and elegant appearance. This product is easy to install, can rack, plug and play, no management; Dynamic LED indicator to monitor switch status and troubleshooting work. -
Page 4: Led Indicator Description
PoE Ethernet Switch Rear panel: 1.3 LED Indicator description Switch indicators includes Link/Act/Speed, PoE, power status indicator. Link/Act, PoE light is green, the power status indicator is green. You can learn the switch work status by LED indicators. The following table shows these indicators’... -
Page 5: Switch Features And Specifications
PoE Ethernet Switch 1.4 Switch Features and Specifications Features: Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE 802.3af, IEEE802.3at standards Supports IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex transfer mode Support store and forward technology ... - Page 6 PoE Ethernet Switch 10Mbps: 14880pps Packet filtering and 100Mbps: 148800pps forwarding rate 1000Mbps:1488000pps Dimensions (W × D × H) 280 x 179 x 44.5 mm Operating Temperature: 0℃ - 40℃ Storage Temperature: -40℃ - 70℃ Environment Operating Humidity: 10%~90% RH Non-condensing Storage Humidity: 5%~95% RH Non-condensing Power AC 100V ~ 240V;...
-
Page 7: Hardware Installation
PoE Ethernet Switch 2 Hardware installation Before installing the switch, make sure that the following "packing list" listed OK. If any part is lost and damaged, please contact your local agent immediately. In addition, make sure that you have the tools to install switche and cables in your hands. -
Page 8: Switch Cascade Connection
PoE Ethernet Switch 2.3 Switch Cascade Connection The any port of switch can automatically identify straight cable and cross cable, so no matter which port can be cascaded. Among switch, another switch, hub can be connected by many ways, either connect any port of this switch to any port of another switch by straight cable or you can also connect any port of one switch to any port of another switch by unshield Twisted pair RJ45, realize all switch cascade connection. -
Page 9: Notes
PoE Ethernet Switch TX2 + TX2 -- RX1 - (PoE Power-) RX2 + RX2 - 2.6 Notes Switch support auto-negotiation function, while connecting other network devices, the port LED indicators status depends on the negotiation results of the operation mode, please refer to previous page status indicator table. If the connection is OK, but the indicator does not light, please try to check if other network cable is OK. - Page 10 PoE Ethernet Switch...
