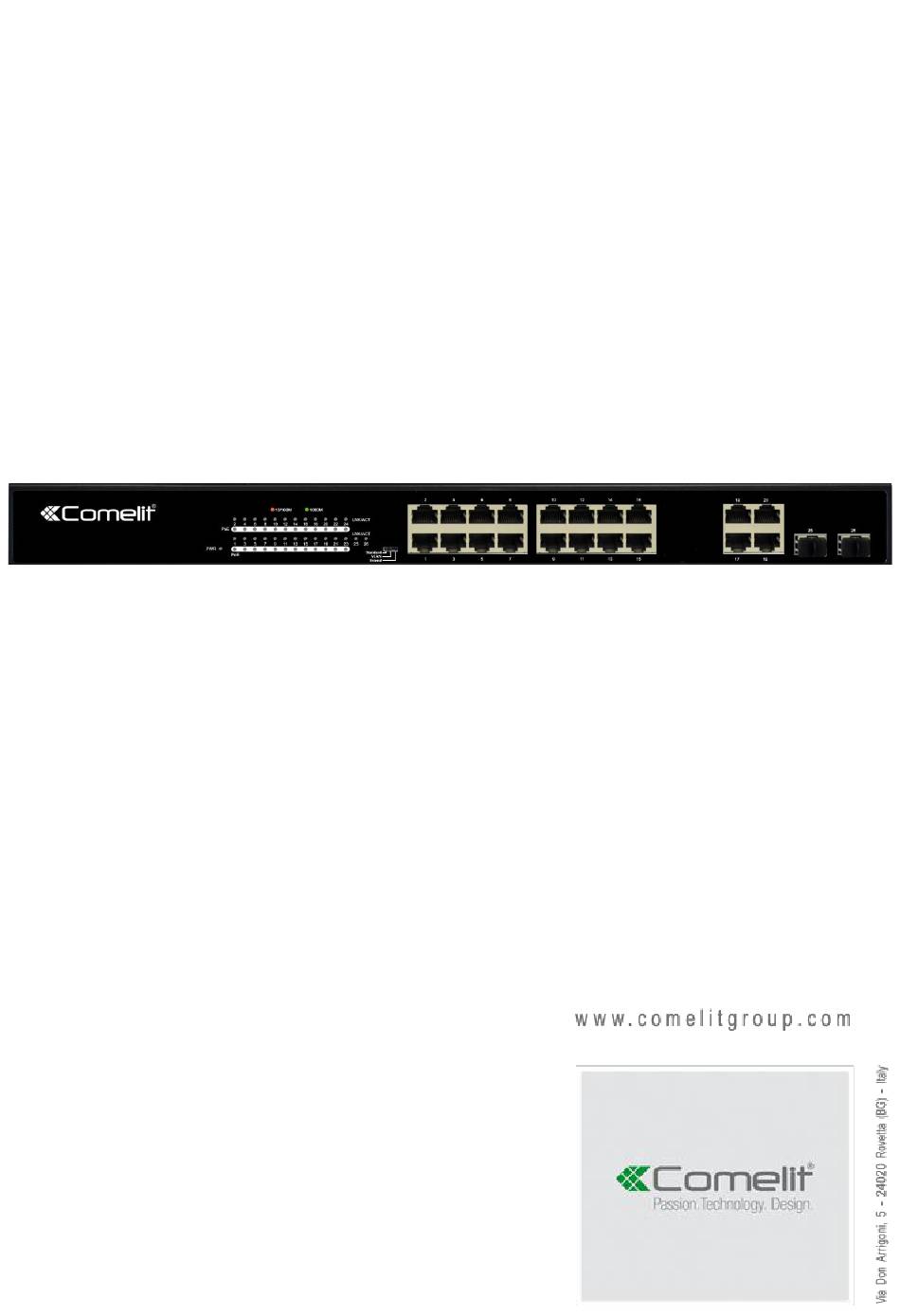

- Page 1 SWITCH, 16 (PoE) + 4 UPLINK GIGABIT PORTS + 2 SFP SLOTS ART. IPSWP22N01A Please read this manual thoroughly before use and keep it for future reference...
-
Page 2: Package Contents
Package contents Check the contents of your package: PoE switch x 1 User manual x1 Power cord x 1 Accessories If any part is lost and damaged, please contact your dealer. Introduction The device have 16 (PoE) + 4 Fast uplink 10/100/1000Mbit/s RJ45 ports + 2 SFP slots that increase the speed of your network server and backbone connections, made Gigabit connection to a server or uplink a network. - Page 3 Rear panel In the rear panel there is an AC inlet power socket, which accepts input from 100 to 240VAC, 50/60HZ. Power socket Connect the female connector of the power cord here and the male connector to the AC power outlet. Please make sure that the voltage meets the requirement of the switch input voltage.
-
Page 4: Specifications
Turn ON the switch When powered, the switch start automatically, the led lights up. Note: make sure that the voltage is correct before power ON, otherwise the switch will be damaged. Specifications IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af, Supported standards IEEE802.3at 10BASE-T: UTP category 3,4,5 cable (≤100m) 100BASE-TX: UTP category 5 cable (≤100m)
