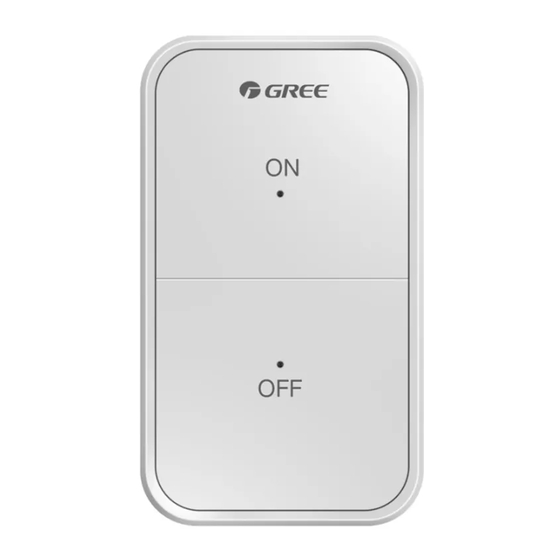

RF Remote Controller LE60-13/C1

Advertisement

Table of Contents
loading

Related Manuals for Gree LE60-13/C1

Summary of Contents for Gree LE60-13/C1

  • Page 1 Owner's Manual Original Instructions RF Remote Controller LE60-13/C1...
  • Page 3 To Users Thank you for selecting Gree’s product. Please read this instruction manual carefully before installing and using the product, so as to master and correctly use the product. In order to guide you to correctly install and use our product and achieve...
  • Page 4 Users should not disassemble or maintain the unit by themselves, otherwise it may cause relative damage, and our company will bear no responsibilities.

  • Page 5: Table Of Contents

    Contents 1 Safety Notices (Please be sure to abide) ....... 1 2 Installation ................2 2.1 Dimension and Component of RF Remote Controller ....2 2.2 Installing Position and Requirements of RF Remote Controller ..4 2.3 Installation of RF Remote Controller ..........4 3 Display Introduction ...............

  • Page 7: Safety Notices (Please Be Sure To Abide)

    RF Remote Controller LE60-13/C1 1 Safety Notices (Please be sure to abide) WARNING: If not abide them strictly, it may cause severe damage to the unit or the people. NOTE: If not abide them strictly, it may cause slight or medium damage to the unit or the people.

  • Page 8: Installation

    RF Remote Controller LE60-13/C1 2 Installation 2.1 Dimension and Component of RF Remote Controller (Unit：mm) Figure 2-1 Dimension of RF Remote Controller...
  • Page 9 RF Remote Controller LE60-13/C1 Figure 2-2 Components of RF Remote Controller...

  • Page 10: Installing Position And Requirements Of Rf Remote Controller

    RF Remote Controller LE60-13/C1 Table 2.1.1 Introduction of Components ① ② ③ Name wall 3M tape RF remote controller Quantity 2.2 Installing Position and Requirements of RF Remote Controller Please do not install the RF remote controller in the position where is wet or is likely to be splashed with water;...
  • Page 11 RF Remote Controller LE60-13/C1 Install the button battery at the buttery holder. Please note that the positive and negative poles should be connected correctly; Buckle RF remote controller and the base together; Tear off one side of 3M tape and then stick it at the back of RF remote controller correctly;...
  • Page 12 RF Remote Controller LE60-13/C1 The black part is the rod, when the rod is close to ON, it’s ON, and the opposite direction is OFF. Figure 2-3 Schematic Diagram of DIP Switch Code of RF Remote Controller...
  • Page 13 RF Remote Controller LE60-13/C1 Figure 2-4 Sketch Map for Installation of RF Remote Controller...

  • Page 14: Display Introduction

    RF Remote Controller LE60-13/C1 3 Display Introduction 3.1 RF Remote Controller Appearance Figure 3-1 RF Remote Controller Appearance Table 3.1.1 RF Remote Controller Appearance Instruction Name Instruction “ON” button The air valve at the current area is allowed to be open “OFF”...

  • Page 15: Operation Instructions

    RF Remote Controller LE60-13/C1 4 Operation Instructions 4.1 Matching Setting When using RF remote controller for the first time, please conduct the matching with the zone control system. Matching method: turn on match mode of wired remote controller and press “ON” and “OFF” buttons at the same time for 5s; when green indicator and red indicator are on and off alternatively, it indicates RF remote controller has entered into the match mode.

  • Page 16: Replacement Of Battery In Rf Remote Controller

    RF Remote Controller LE60-13/C1 NOTE! When operating the RF remote controller, make sure it is within the receiving range of the zone control interface. 4.3 Replacement of Battery in RF Remote Controller Use a tool to gently open the clasp, and then remove the RF remote controller in the direction of the arrow;...
  • Page 17 RF Remote Controller LE60-13/C1 NOTES! Do not use the wrong type of battery when replacing the battery, otherwise the RF remote controller may be damaged; If the RF remote controller does not work properly, please remove the battery and reinstall it after 10s. If it still does not work normally, please replace the battery.
