Gree XE70-13/E Owner's Manual

Gree XE70-13/E Owner's Manual

Wired remote controller
Hide thumbs Also See for XE70-13/E:

Advertisement

Quick Links

Download this manual
Owner's Manual
Original Instructions
Wired Remote Controller XE70-13/E

Advertisement

loading
Need help?

Need help?

Do you have a question about the XE70-13/E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gree XE70-13/E

Summary of Contents for Gree XE70-13/E

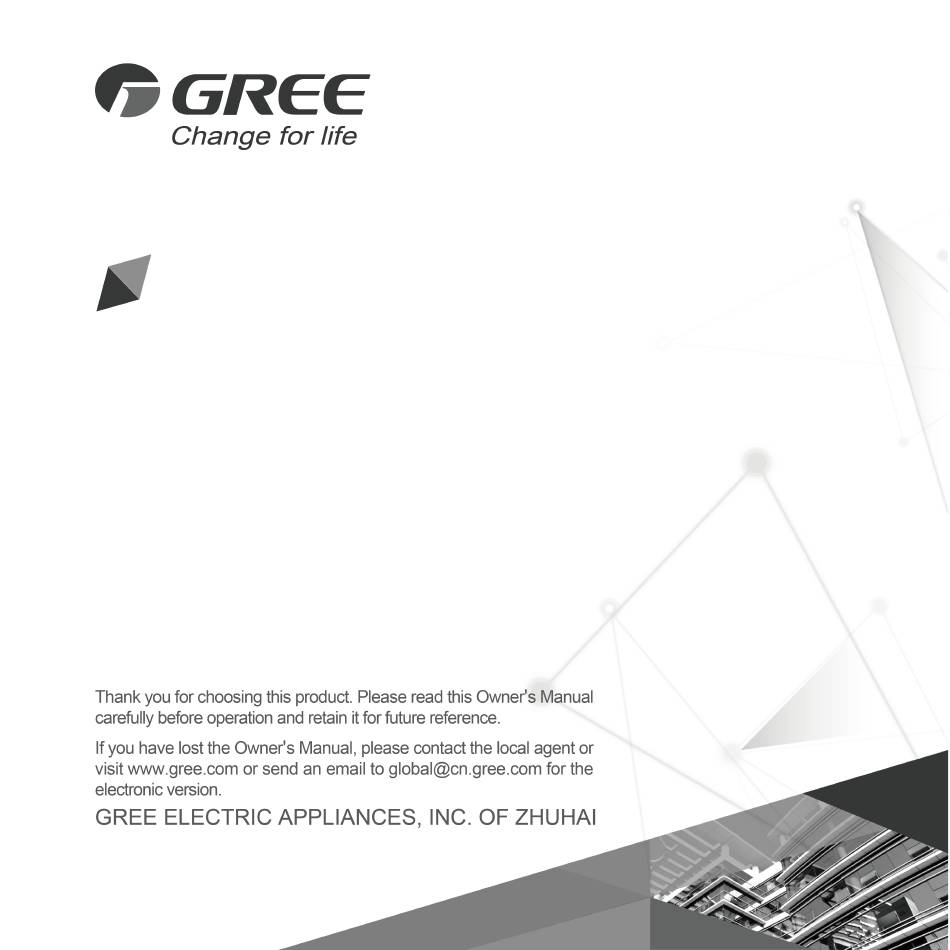

  • Page 1 Owner's Manual Original Instructions Wired Remote Controller XE70-13/E...
  • Page 2 To Users Thank you for selecting Gree’s product. Please read this instruction manual carefully before installing and using the product, so as to master and correctly use the product. In order to guide you to correctly install and use our product and achieve...
  • Page 3 (5) The final right to interpret for this instruction manual belongs to Gree Electric Appliances, Inc. of Zhuhai.
  • Page 4 Contents 1 Safety Notices (Please be sure to abide) ......... 1 2 Installation ..................2 2.1 Dimension and Component of Wired Remote Controller ....2 2.2 Installing Position and Requirements of Wired Remote Controller 3 2.3 Installation of Wired Remote Controller ......... 4 2.4 Disassembly of Wired Remote Controller ........
  • Page 5 6.2 Mode Setting ................16 6.3 Temperature Setting ..............17 6.4 Fan Setting .................. 18 6.5 Zone Control ................18 6.6 Zone Setting ................20 6.7 Function Setting ................25 6.8 View ..................... 27 6.9 System ..................28 6.10 View Malfunction ................ 30...
  • Page 6 Wired Remote Controller XE70-13/E 1 Safety Notices (Please be sure to abide) WARNING: If not abide strictly, it may cause severe damage to the unit or the people. NOTE: If not abide strictly, it may cause slight or medium damage to the unit or the people.
  • Page 7 Wired Remote Controller XE70-13/E 2 Installation 2.1 Dimension and Component of Wired Remote Controller Unit：mm Figure 2-1 Dimension of Wired Remote Controller Figure 2-2 Components of Wired Remote Controller...
  • Page 8 Wired Remote Controller XE70-13/E Table 2.1.1 Introduction of Components ① ② ③ ④ wired installing box of junction box for installing Name remote screw M4×25 wired remote inside the wall controller controller Quantity 1(prepared by user) 2.2 Installing Position and Requirements of Wired Remote...
  • Page 9 Wired Remote Controller XE70-13/E distance should be over 20cm, otherwise the communication cannot work normally; 3) If the unit is installed in the position where is likely to be impacted by electromagnetic interface, signal wire of wired remote controller should be made of STP (shielded twisted pair).
  • Page 10 Wired Remote Controller XE70-13/E (5) Buckle the panel of wired remote controller with the soleplate, and then the installation is finished. Figure 2-3 Sketch Map for Installation of Wired Remote Controller...
  • Page 11 Wired Remote Controller XE70-13/E 2.4 Disassembly of Wired Remote Controller Disassembly for wired remote controller is as below: Figure 2-4 Sketch Map for Disassembly of Wired Remote Controller 3 Display 3.1 Appearance of Wired Remote Controller Fig 3-1 Appearance of Wired Remote Controller...
  • Page 12 Wired Remote Controller XE70-13/E 3.2 Home Page Display and Buttons Fig 3-2 LCD Display of Wired Remote Controller Table 3.2.1 Home Page Display and Buttons Name Instructions It shows the name of the current zone. The set temperature displayed on the home page is the temperature of the current Name of the zone.
  • Page 13 Wired Remote Controller XE70-13/E Name Instructions Decrease Tap to decrease the set temperature of the current zone. Set temperature It shows the set temperature of the current zone. Mode It shows Cool, Dry, Fan, Heat and Auto modes. Press this button to turn on or off the screen.
  • Page 14 Wired Remote Controller XE70-13/E Display Name Instructions Tap to turn to the next page. Down Tap to decrease the value. It is shown on the home page, indicating the WiFi status（This WiFi function is reserved）. Tap to turn on or off the timer function.
  • Page 15 Wired Remote Controller XE70-13/E Fig 4-1 Menu Structure...
  • Page 16 Wired Remote Controller XE70-13/E 4.2 Functions Introduction Table 4.2.1 Functions Introduction Function Introduction 8 timings can be set independently for each zone. The timer includes set Daily timer temperature and zone on/off. It will work every day after setting. Week timer can be set independently for each zone and 8 timings can be set Week timer for each day.
  • Page 17 Wired Remote Controller XE70-13/E Function Introduction It can generate negative ions. (This function works only after an applicable Healthy function device is installed.) Quiet function It can lower indoor noise to make the room quiet. By setting the lower limit of set temperature for cool and dry modes and the...
  • Page 18 Wired Remote Controller XE70-13/E Function Introduction Temperature unit The temperature can be set in Fahrenheit or Celsius. Reset the WiFi module for network connection. (Effective only after cloud Reset WiFi control is equipped. This function is reserved.) Time setting Date and time and time format can be set.
  • Page 19 Wired Remote Controller XE70-13/E Function Introduction Ambient temperature Indoor ambient temperature of each zone (only the zone equipped with RF of zone remote controller) can be viewed. NOTE! Because this zone control system will be matched with different units, some functions are not displayed if they are not available on the units.
  • Page 20 Wired Remote Controller XE70-13/E The above contents can also be set in the menu of zone setting. For specific methods, please refer to the related operating instructions in the following chapters. 6 Operation Instructions 6.1 On/Off Press “On” button on the home page to start up the air conditioner. Then the temperature adjustment buttons on the home page are displayed.
  • Page 21 Wired Remote Controller XE70-13/E Fig 6-2 Page of Off 6.2 Mode Setting When the unit is turned on, press “Mode” button on the home page each time, and the mode will be switched in the following order. Cool Heat Auto...
  • Page 22 Wired Remote Controller XE70-13/E NOTES! ① When energy-saving function is enabled, Auto mode is not available. ② When it is matched with cooling only unit, Heat mode is not available. When it is matched with heating only unit, Cool and Dry modes are not available.
  • Page 23 Wired Remote Controller XE70-13/E 6.4 Fan Setting When the unit is turned on, press “Fan” button on the home page each time, and the fan speed will be switched in the following order. Medium- Medium- Medium High Turbo Auto high...
  • Page 24 Wired Remote Controller XE70-13/E (2) Press “ ” button on the home page to enter the page of main menu. Then press “Zone” button to enter the page of zone setting. Then press “Zone Control” button to enter the page of zone control.
  • Page 25 Wired Remote Controller XE70-13/E Press the set temperature of each zone to enter the page of temperature setting. Press the “ ” and “ ” buttons to set temperature. Press “Confirm” to save the setting. Press the “On/Off” button of each zone to turn on or off the zone.
  • Page 26 Wired Remote Controller XE70-13/E return to the previous page. For other zones, the setting method is the same. NOTE! When Turn on this timer, week timer and two week timer will be turned off. 6.6.2 Setting of week timer Press “Set” button on the home page to enter the page of main menu. Then press “Zone”...
  • Page 27 Wired Remote Controller XE70-13/E NOTE! When Turn on this timer, daily timer and two week timer will be turned off. 6.6.3 Setting of two week timer Press “Set” button on the home page to enter the page of main menu. Then press”...
  • Page 28 Wired Remote Controller XE70-13/E return to the previous page. For other zones, the setting method is the same. NOTE! When Turn on this timer, daily timer and week timer will be turned off. 6.6.4 Setting of main zone Press “Set” button on the home page to enter the page of main menu. Then press “Zone”...
  • Page 29 Wired Remote Controller XE70-13/E NOTE! Only the zone that is in use can be chosen as the always open zone. 6.6.6 Setting of zone parameters Press “Set” button on the home page to enter the page of main menu. Then press “Zone”...
  • Page 30 Wired Remote Controller XE70-13/E NOTE! When pairing is turned on, the RF remote controller that is to be connected should also perform corresponding operations to enter the paring mode. For details, see the instructions for the RF remote controller. 6.7 Function Setting Following is the instruction on function setting.
  • Page 31 Wired Remote Controller XE70-13/E Function Conditions that should be met X-Fan The unit is on and in cool or dry mode. Detailed description of the following functions: When setting the fresh air function, there are 10 fresh air modes. The details are as follows.
  • Page 32 Wired Remote Controller XE70-13/E After turning on the cleaning indication function, the cleaning icon will be shown on the home page when it is time to clean. If the cleaning time is reset, the cumulative time for filter cleaning indication won’t be cleared. If the adjusted time is greater than the current cumulative time, the cleaning icon will not be displayed.
  • Page 33 Wired Remote Controller XE70-13/E 6.8.2 View zone temperature Press “Set” button on the home page to enter the page of main menu. Then press “View” to enter the page of View. Press “Ambient temperature of zone” and you can view the ambient temperature of the effective zone.
  • Page 34 Wired Remote Controller XE70-13/E Select “Lightness” to enter the page of lightness setting. Press the “ ” or “ ” button to adjust the lightness. Then press “Confirm” to save the setting and return. 6.9.4 Backlight time Press “Set” button on the home page to enter the page of main menu. Then press “System”...
  • Page 35 Wired Remote Controller XE70-13/E Select a main or subsidiary wired remote controller and then press “Confirm” to save the setting and return. NOTE! The timer functions of the main and subsidiary wired remote controllers are independent and asynchronous. When turn on one controller’s timer ,the other controller’s timer will be turned off.
