  • Page 1 Owner's Manual Original Instructions RF Remote Controller LE60-13/C1...
  • Page 3 To Users Thank you for selecting Gree’s product. Please read this instruction manual carefully before installing and using the product, so as to master and correctly use the product. In order to guide you to correctly install and use our product and achieve...
  • Page 4 (5) The final right to interpret for this instruction manual belongs to Gree Electric Appliances, Inc. of Zhuhai.

  • Page 5: Table Of Contents

    Contents 1 Safety Notices (Please be sure to abide) ......1 2 Installation ................2 2.1 Dimension and Component of RF Remote Controller ...... 2 2.2 Installing Position and Requirements of RF Remote Controller ....4 2.3 Installation of RF Remote Controller ..........4 3 Display Introduction ............

  • Page 7: Safety Notices (Please Be Sure To Abide)

    RF Remote Controller LE60-13/C1 1 Safety Notices (Please be sure to abide) WARNING: If not abide them strictly, it may cause severe damage to the unit or the people. NOTE: If not abide them strictly, it may cause slight or medium damage to the unit or the people.

  • Page 8: Installation

    RF Remote Controller LE60-13/C1 2 Installation 2.1 Dimension and Component of RF Remote Controller (Unit：mm) Figure 2-1 Dimension of RF Remote Controller...
  • Page 9 RF Remote Controller LE60-13/C1 Figure 2-2 Components of RF Remote Controller...

  • Page 10: Installing Position And Requirements Of Rf Remote Controller

    RF Remote Controller LE60-13/C1 Table 2.1.1 Introduction of Components ① ② ③ RF remote Name 3M tape wall controller Quantity 2.2 Installing Position and Requirements of RF Remote Controller Please do not install the RF remote controller at the position where is wet or is likely to be splashed with water;...
  • Page 11 RF Remote Controller LE60-13/C1 Use tools to conduct the DIP switch code for RF remote controller according to room number. Please refer to the schematic diagram of DIP switch code of RF remote controller for the detailed method; Install the button batteries at the buttery holder. Please note that the positive and negative poles should be connected correctly;...
  • Page 12 RF Remote Controller LE60-13/C1 Figure 2-3 Skematic Diagram of DIP Switch Code of RF Remote Controller...
  • Page 13 RF Remote Controller LE60-13/C1 Figure 2-4 Sketch Map for Installation of RF Remote Controller...

  • Page 14: Display Introduction

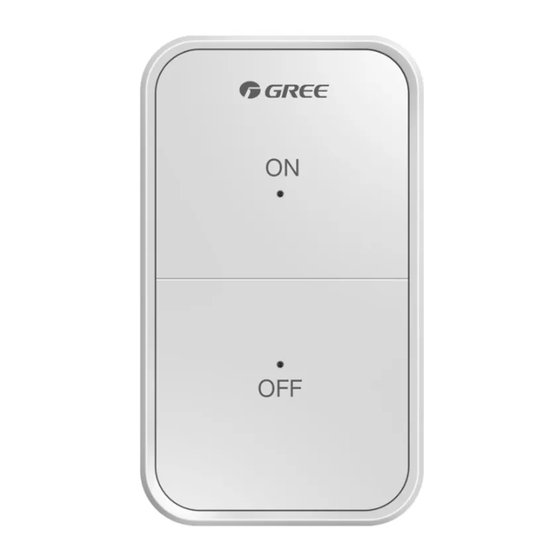

    RF Remote Controller LE60-13/C1 3 Display Introduction 3.1 RF Remote Controller Appearance Figure 3-1 RF Remote Controller Apperance Table 3.1.1 RF Remote Controller Appearance Instruction Name Instruction “ON” button The air valve at the current area is allowed to be open “OFF”...

  • Page 15: Operation Instructions

    RF Remote Controller LE60-13/C1 4 Operation Instructions 4.1 Matching Setting When using RF remote controller for the first time, please conduct the matching with the zone control system. Matching method: turn on match mode of wired remote controller and press “ON” and “OFF” buttons at the same time for 5s; when green indicator and red indicator are on and off alternatively, it indicates RF remote controller has entered into the match mode.

  • Page 16: Replacement Of Battery In Rf Remote Controller

    RF Remote Controller LE60-13/C1 4.3 Replacement of battery in RF remote controller Use a tool to gently open the buckle, and then remove the RF remote controller in the direction of the arrow; Remove the old battery; Install the button battery (CR2450) at the buttery holder. Please note that the positive and negative poles should be connected correctly;...
  • Page 17 RF Remote Controller LE60-13/C1 NOTES! Do not use the wrong type of battery when replacing the battery, otherwise the RF remote controller may be damaged; If the RF remote controller does not work properly, please remove the battery and reinstall it after 10 seconds. If it still does not work, please...
