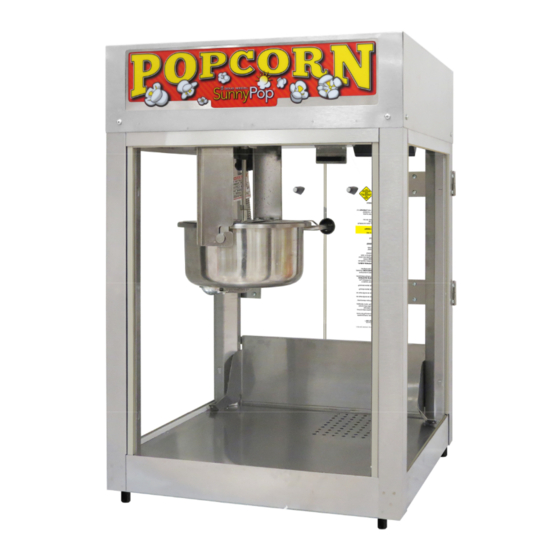

- Page 1 Instruction Manual SunnyPop 12 oz. Popper Model No. 2552-00-012 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2019 Gold Medal Products Co. Part No. 110113...
-
Page 2: Table Of Contents
SunnyPop 12 oz. Popper Model No. 2552-00-012 Table of Contents SAFETY PRECAUTIONS ..........................3 INSTALLATION INSTRUCTIONS ......................5 Inspection of Shipment ..............................5 Manual ....................................5 Model Description ................................5 Items Included with this Unit..........................5 Setup ....................................6 Electrical Requirements ............................7 Before You Plug In Machine .............................7 OPERATING INSTRUCTIONS ........................ -
Page 3: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 4 007_010914 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 5: Installation Instructions
SunnyPop 12 oz. Popper Model No. 2552-00-012 INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual). -
Page 6: Setup
SunnyPop 12 oz. Popper Model No. 2552-00-012 Setup This unit has been tested at the factory. 1. Remove all packaging and tape prior to operation. Remove accessories and carefully remove kettle packed in cabinet interior. 2. Place unit on a sturdy, level base. 3. -
Page 7: Electrical Requirements
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 8: Operating Instructions
SunnyPop 12 oz. Popper Model No. 2552-00-012 OPERATING INSTRUCTIONS Controls and Their Functions KETTLE HEAT SWITCH Two position, ON/OFF lighted rocker switch - supplies power to the heating elements in the popping kettle. The green switch light ON indicates there is power to the kettle heating element. -
Page 9: Popping Corn
SunnyPop 12 oz. Popper Model No. 2552-00-012 Popping Corn This section describes instructions for popping Standard (salted popcorn). Amount of Popcorn and Oil Your new popper is equipped with a corn, salt, and oil measure. We recommend flavored and colored coconut oil. Popcorn popped in coconut oil stays fresh longer and does not leave black deposits in your kettle like other oils. -
Page 10: Care And Cleaning
Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage the kettle. 3. Mix 2 tablespoons (29.6 ml) of Gold Medal’s Heat’n Kleen (Item No. 2095) in 1 gallon (3.8 L) of water. - Page 11 (cloth may be SLIGHTLY dampened with soap and water, then wipe again with clean water to remove any remaining cleaner). 5. Clean glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended.
- Page 12 SunnyPop 12 oz. Popper Model No. 2552-00-012 Filter Cleaning Instructions The popcorn machine is equipped with an efficient and durable filtration system. The filter should be cleaned every 1-2 weeks to maintain maximum efficiency. Steps to Clean Filter Step 1: Turn unit OFF and allow it to cool before removing filter.
-
Page 13: Troubleshooting
SunnyPop 12 oz. Popper Model No. 2552-00-012 Troubleshooting Issue Possible Cause Solution No Power to the Unit A. No Power to the Unit A. Make sure the unit’s power cord is plugged in. Kettle Does Not Heat A. Power to the Kettle A. -
Page 14: Agitator Set Collar Adjustment
SunnyPop 12 oz. Popper Model No. 2552-00-012 Agitator Set Collar Adjustment The following instructions describe how to properly adjust set collars on an agitator assembly with a floating stir rod. Steps to Adjust Set Collars Gear Block Step 1: Turn machine OFF, unplug unit, and Needle Bearing (should set at least allow it to cool completely before attempting... -
Page 15: Maintenance Instructions
SunnyPop 12 oz. Popper Model No. 2552-00-012 MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. DO NOT use excessive water when cleaning. -
Page 16: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 or place orders by phone or online:... -
Page 17: Replacing Broken Glass
Model No. 2552-00-012 Replacing Broken Glass Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop, always purchase tempered glass. GLASS DIMENSIONS (Height x Width x Thickness) Front and Side Glass: 21 1/4”... -
Page 18: 12/14 Oz. Kettle Assembly (58014) - Agitator Assembly View
SunnyPop 12 oz. Popper Model No. 2552-00-012 12/14 oz. Kettle Assembly (58014) – Agitator Assembly View Overall Ket tle 61 05 4E X Crossbar Assem bly 56 00 0 *See Parts List note. 16, 14 See Kettle Bottom Assembly. Complete Kettle Assembly Complete Agitator Assembly (Includes Lids) Part Number Item... -
Page 19: 12/14 Oz. Kettle Assembly (58014) - Kettle Bottom View
SunnyPop 12 oz. Popper Model No. 2552-00-012 12/14 oz. Kettle Assembly (58014) – Kettle Bottom View 582 20 Ke tt le Bot tom Assem bly 582 20 Elem e nt V ie w Kettle Bottom Assembly Element View Top Lock Nut - Fastens each thermostat and ground. -
Page 20: Cabinet Exterior - Front View
SunnyPop 12 oz. Popper Model No. 2552-00-012 Cabinet Exterior – Front View See Lighted Sign Section For Glass Panels, See Kettle see Replacing Assembly Glass section. Section 5, 6 Model 2552-00-012 Item Part Description Part Number 8-32 X 3/8 SLT. HWH M/S 42044 DOME WELDMENT 111417... -
Page 21: Cabinet Exterior - Rear View
Safety Labels Section 10, 11 *CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or General image shown similarly qualified persons in order to avoid a hazard. for parts reference only. -
Page 22: Door Hardware Kits - Individual Component Breakdown
SunnyPop 12 oz. Popper Model No. 2552-00-012 Door Hardware Kits – Individual Component Breakdown Complete Right Hand Door Complete Left Hand Door Hardware Kit (P/N 47055) Hardware Kit (P/N 47054) (contains all parts shown above) (contains all parts shown above) Part Number Item Part Description... -
Page 23: Cabinet Interior - Controls View
SunnyPop 12 oz. Popper Model No. 2552-00-012 Cabinet Interior – Controls View 2387- 00- 010 13*, 14 Data Plate General image shown for parts reference only. For Labels, see Safety Labels section. Item Part Description Part Number SMALL SWITCH BOX 48501 SMALL SWITCH LABEL 48502... -
Page 24: Cabinet Bottom - Corn Pan Element View
Model No. 2552-00-012 Cabinet Bottom – Corn Pan Element View 2552 *CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order to avoid a hazard. See Labels 6, 7 General image shown for parts reference only. -
Page 25: Motor Plate Assembly
SunnyPop 12 oz. Popper Model No. 2552-00-012 Motor Plate Assembly 255 2- 00 -0 10 Im ag e Sh own. Male Cordset shown (see Lighted Sign Assy. for Female Cordset) 11, 12 See Controls View General image shown for parts reference. Item Part Description Part Number... -
Page 26: Lighted Sign Assembly
SunnyPop 12 oz. Popper Model No. 2552-00-012 Lighted Sign Assembly Light Box Assembly (111503) – Front View 11, 12 Male Cordset (not shown) is included in Light Box Assembly, see Motor Plate Assy. Power Supply mounts on section for image motor plate, see Motor reference. -
Page 27: Safety Labels
SunnyPop 12 oz. Popper Model No. 2552-00-012 Safety Labels Kettle Lead In Label Unit Labels Power Cord Labels Item Part Description Part Number UNIVERAL POPPER DECAL 41019 MAIN GROUND LABEL 42375 SURFACE CONTACT WARNING 87087 POWER OFF LABEL 55436 CONDUIT WARNING LABEL 82840 CORD WARNING LABEL 68720... -
Page 28: Wiring Diagram
SunnyPop 12 oz. Popper Model No. 2552-00-012 Wiring Diagram Model 2552-00-012 gmpopcorn.com Page 28... -
Page 29: Warranty
© 2019 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
