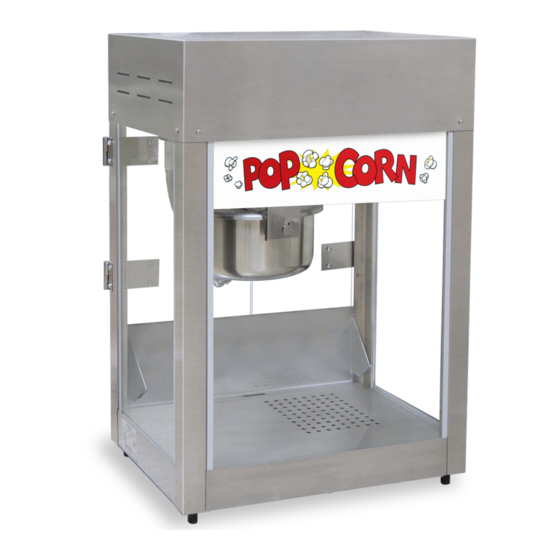

- Page 1 Instruction Manual Titan 6 oz. Popper Model No. 2551 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2020 Gold Medal Products Co. Part No. 49793...
-
Page 2: Table Of Contents
Titan 6 oz. Popper Model No. 2551 Table of Contents SAFETY PRECAUTIONS ........................... 3 Inspection of Shipment ............................5 INSTALLATION INSTRUCTIONS ........................5 Manual ..................................5 Items Included with this Unit ........................... 5 Setup ................................... 6 Electrical Requirements ............................. 7 Before You Plug In Machine .......................... -
Page 3: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 4 Note: Improvements are always being made to Gold Medal’s equipment. This information 007_010914 may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 5: Inspection Of Shipment
Titan 6 oz. Popper Model No. 2551 INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual). -
Page 6: Setup
Titan 6 oz. Popper Model No. 2551 Setup This unit has been tested at the factory. 1. Remove all packaging and tape prior to operation. Remove accessories and carefully remove kettle packed in cabinet interior. 2. Place unit on a sturdy, level base. -
Page 7: Electrical Requirements
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 8: Controls And Their Functions
Titan 6 oz. Popper Model No. 2551 OPERATING INSTRUCTIONS Controls and Their Functions ON/OFF lighted rocker switch - supplies power to the heating elements in the popping KETTLE HEAT SWITCH kettle. The green switch light ON indicates there is power to the kettle heating element. -
Page 9: Popping Corn Instructions
Titan 6 oz. Popper Model No. 2551 Popping Corn Instructions This section describes instructions for popping Standard (salted) popcorn, and for popping Pappy’s Kettle Corn. Amount of Popcorn and Oil The popper is equipped with a corn, salt, and oil measure. We recommend flavored and colored coconut oil. -
Page 10: Care And Cleaning
Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage the kettle. 3. Mix 2 tablespoons (29.6 ml) of Gold Medal’s Heat’n Kleen (Item No. 2095) in 1 gallon (3.8 L) of water. - Page 11 (cloth may be SLIGHTLY dampened with soap and water, then wipe again with clean water to remove any remaining cleaner). 5. Clean glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended.
-
Page 12: Troubleshooting
Titan 6 oz. Popper Model No. 2551 Troubleshooting A. No Power to the Unit A. Make sure the unit’s power cord is plugged in. Issue Possible Cause Solution A. Power to the Kettle A. Make sure kettle lead-in cord is plugged in and No Power to the Unit twisted to lock into the kettle receptacle. -
Page 13: Agitator Set Collar Adjustment
Titan 6 oz. Popper Model No. 2551 Agitator Set Collar Adjustment The following instructions describe how to properly adjust set collars on an agitator assembly with a floating stir rod. Steps to Adjust Set Collars Step 1: Turn machine OFF, unplug unit, and... -
Page 14: Maintenance Instructions
Titan 6 oz. Popper Model No. 2551 MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. -
Page 15: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 or place orders by phone or online:... -
Page 16: Replacing Broken Glass
Model No. 2551 Replacing Broken Glass Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop, always purchase tempered glass. GLASS DIMENSIONS (Height x Width x Thickness) Front Glass: 21.25”... -
Page 17: Oz. Kettle Assembly (56000) - Agitator Assembly View
Titan 6 oz. Popper Model No. 2551 6 oz. Kettle Assembly (56000) – Agitator Assembly View Overall Kett le 56000 Agitator Assemb ly 56000 **Apply Loctite 246 to bottom of set screws before installing. *See Parts List note. 16, 14... -
Page 18: Oz. Kettle Assembly (56000) - Kettle Bottom Assembly
Titan 6 oz. Popper Model No. 2551 6 oz. Kettle Assembly (56000) – Kettle Bottom Assembly Kettle Bottom Assembly 49472N Elem ent View 56000 Kettle Bottom Assembly General image shown for reference. Top Lock Nut - Fastens each thermostat and ground. -
Page 19: Cabinet Exterior - Front View
For Glass Panels, see Replacing Glass section. *CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., 8, 15 its service agent, or similarly qualified persons in order to avoid a hazard. See Safety Labels... -
Page 20: Door Hardware Kits - Individual Component Breakdown
Titan 6 oz. Popper Model No. 2551 Door Hardware Kits – Individual Component Breakdown (P/N 47054) (contains parts shown above) (P/N 47055) (contains parts shown above) Complete Left Hand Door Hardware Kit Complete Right Hand Door Hardware Kit Part Number... -
Page 21: Cabinet Interior - Controls View
Titan 6 oz. Popper Model No. 2551 Cabinet Interior – Controls View 9*, 10 Bulb *See Parts List note. For Labels, see Safety Labels section. General image shown for parts reference only. Item Part Description Part Number SWITCH LABEL 49840... -
Page 22: Cabinet Bottom - Corn Pan Element View
Model No. 2551 Cabinet Bottom – Corn Pan Element View *CAUTION: If supply cord is damaged, it must 2552 be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order to avoid a hazard. See Labels 6, 7 General image shown for parts reference only. -
Page 23: Safety Labels
Titan 6 oz. Popper Model No. 2551 Safety Labels Kettle Lead-In Label Unit Labels Power Cord Label Item Part Description Part Number UNIVERSAL POPPER DECAL 41019 WARNING, SURFACE CONTACT 87087 MAIN GROUND LABEL 42375 CONDUIT WARNING LABEL 82840 WARNING LABEL CORD... -
Page 24: Wiring Diagram
Titan 6 oz. Popper Model No. 2551 Wiring Diagram Model 2551 gmpopcorn.com Page 24... -
Page 25: Warranty
© 2020 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
