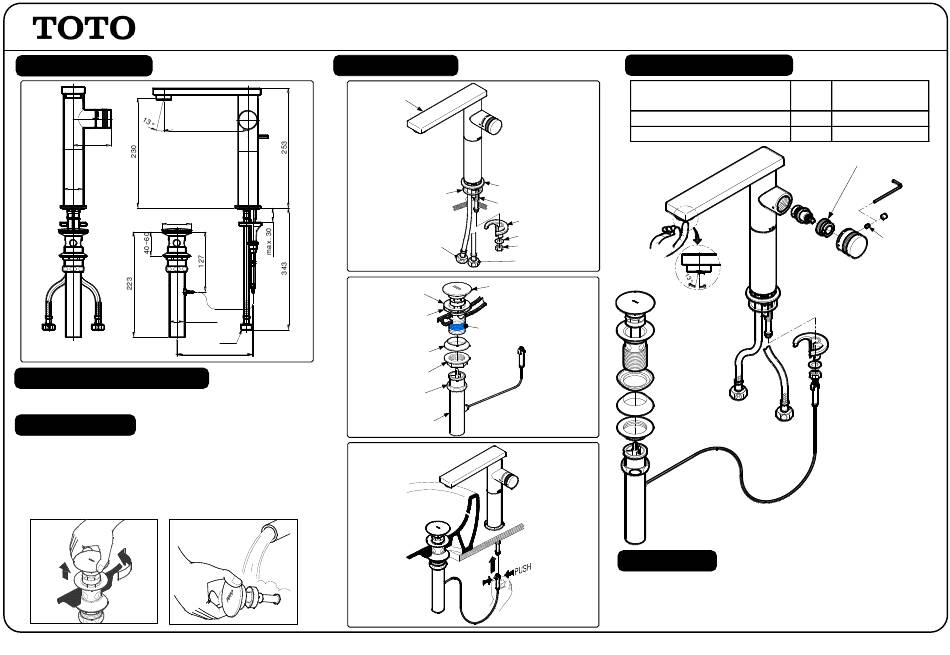

Toto MONO TX116LMN Quick Start Manual

SPECIFICATIONS
80
Ø42
Ø62
Ø31.75
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.)
MAINTENANCE
1. All Finishes : Clean the finish with mild soap and warm water.
Wipe entire surface completely dry with clean soft cloth. Many
cleaners may contain chemicals, such as ammonia, chlorine,
toilet cleaner etc. which could adversely affect the finish and
are not recommended for cleaning
2. Release the pop-up waste plug for cleaning the pop-up waste
from dirt.
S06919R
"MONO" EXTENDED LAVATORY FAUCET W/ PROGRESSIVE MIXER
INSTALLATION
1.
178
2.
G½
max. 300
3.
& 1" ONE PUSH POP-UP WASTE (HEIGHT = 253mm)
Faucet
Base
Packing
Setting Bolt
Washer
Slip Washer
To Hot
Setting Nut
Water Supply
To Cold
C Water Supply
Plug
Siphon
Packing
Use seal tape
on the Thread
( Not Include)
Triangle
Packing
Nut
Nut
Pipe
TROUBLESHOOTING
CHECK
PROBLEM
POINT
Water leaks around the handle
Handle is loose
C
ATTENTION
1. Don t use abrasive cleaners or solvents on faucets and fittings.
2. As the product model is constantly updated, the actual product
may not look the same as it shown in the diagram, but the basic
installation principles are the same.
TX116LMN
SOLUTION
1 Tighten
2 Tighten
1. CONNECTING
NUT
2. BOLT
R5
