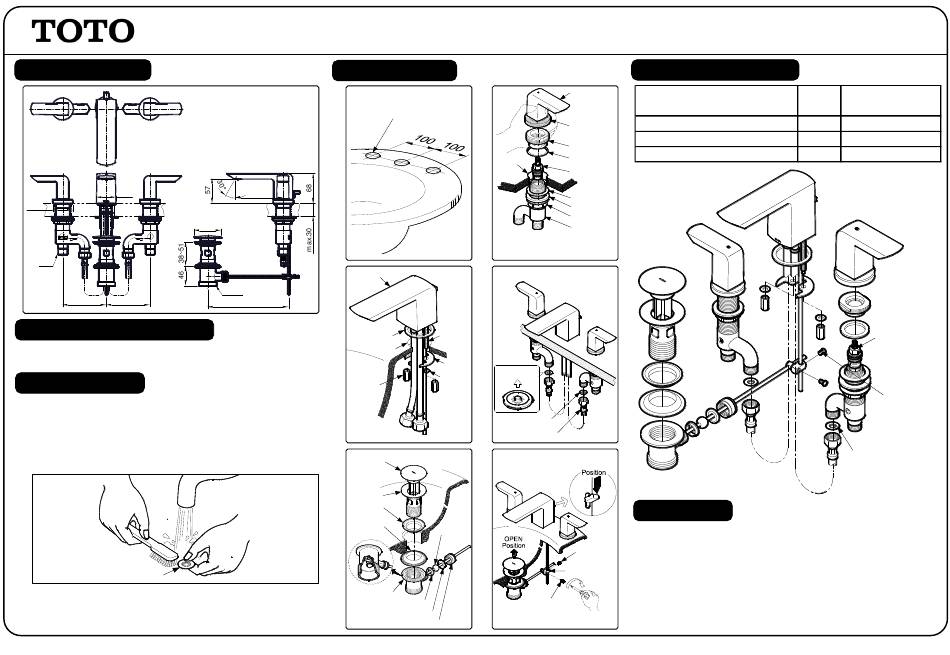

Toto COCKTAIL TX119LKBR Quick Start Manual

SPECIFICATIONS
45
Ø46
G½
100 100
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.)
MAINTENANCE
1. All Finishes : Clean the finish with mild soap and warm
water. Wipe entire surface completely dry with clean soft
cloth. Many cleaners may contain chemicals, such as
ammonia, chlorine, toilet cleaner etc. which could adversely
affect the finish and are not recommended for cleaning
2.
Clean the Flow Regulator periodically with soft brush
Flow Regulator
S06846BR
INSTALLATION
1.
109
Ø62
3.
Faucet
G1¼
Max. 230
Packing
Ø35 Hole
Setting
Nut
5.
Plug
Siphon
Packing
Triangle
Packing
Kick Box
"COCKTAIL" 8" LAVATORY FAUCET
2.
3 X Ø35
Handle
Base * *
Lock Nut
Packing
Ø35
Hole
* The red handle for left position and
the blue handle for right position.
**Tighten the handle base by hand
4.
Setting
Bolt
Washer
Slip Top Side
Washer
Flow Regulator
Flexible Hose
6.
Pivot
Rod
Pop-Up Clip
Bolt
Packing
Washer
Nut
W/ 1¼" POP-UP WASTE
TROUBLESHOOTING
Handle Set *
PROBLEM
Water leaks around the handle
Plug cannot open and close
Flow rate unsatisfactory
Ceramic
Head Work
Packing
Washer
Lock Nut
Body
Bottom
ATTENTION
1. Don t use abrasive cleaners or solvents on faucets and
fittings.
Bolt
2. As the product model is constantly updated, the actual
product may not look the same as it shown in the diagram,
but the basic installation principles are the same.
TX119LKBR
CHECK
SOLUTION
POINT
1 Tighten
2 Tighten
3 Remove and clean
1. CERAMIC
HEAD WORK
2. BOLT
3. FLOW REGULATOR
R5
