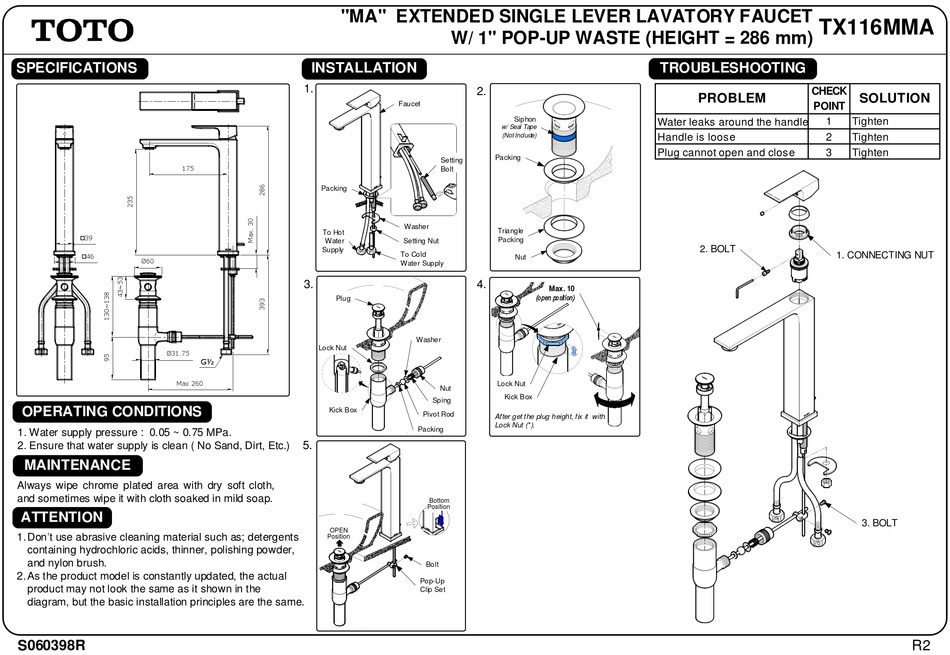

Toto TX116MMA Manual

SPECIFICATIONS

175
o 39
o 46
Ø60
Ø31.75
Max 260

OPERATING CONDITIONS

1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.)

MAINTENANCE

Always wipe chrome plated area with dry soft cloth,
and sometimes wipe it with cloth soaked in mild soap.
ATTENTION
1. Don t use abrasive cleaning material such as; detergents
containing hydrochloric acids, thinner, polishing powder,
and nylon brush.
2. As the product model is constantly updated, the actual
product may not look the same as it shown in the
diagram, but the basic installation principles are the same.
S060398R
"MA" EXTENDED SINGLE LEVER LAVATORY FAUCET

INSTALLATION

1.
Packing
To Hot
Water
Supply
C
3.
Plug
Lock Nut
G½
Kick Box
5.
OPEN
Position
W/ 1" POP-UP WASTE (HEIGHT = 286 mm)
2.
Faucet
Siphon
w/ Seal Tape
(Not Include)
Packing
Setting
Bolt
c
Washer
Triangle
Packing
Setting Nut
To Cold
Nut
Water Supply
4.
Max. 10
(open position)
Washer
Lock Nut
Nut
Kick Box
Sping
Pivot Rod
After get the plug height, fix it with
Lock Nut (* ).
Packing
Bottom
Position
Bolt
Pop-Up
Clip Set
TX116MMA

TROUBLESHOOTING

CHECK
PROBLEM
POINT
1
Water leaks around the handle
Handle is loose 2
Plug cannot open and close 3
2. BOLT
1. CONNECTING NUT
H
C
SOLUTION
Tighten
Tighten
Tighten
3. BOLT
R2
