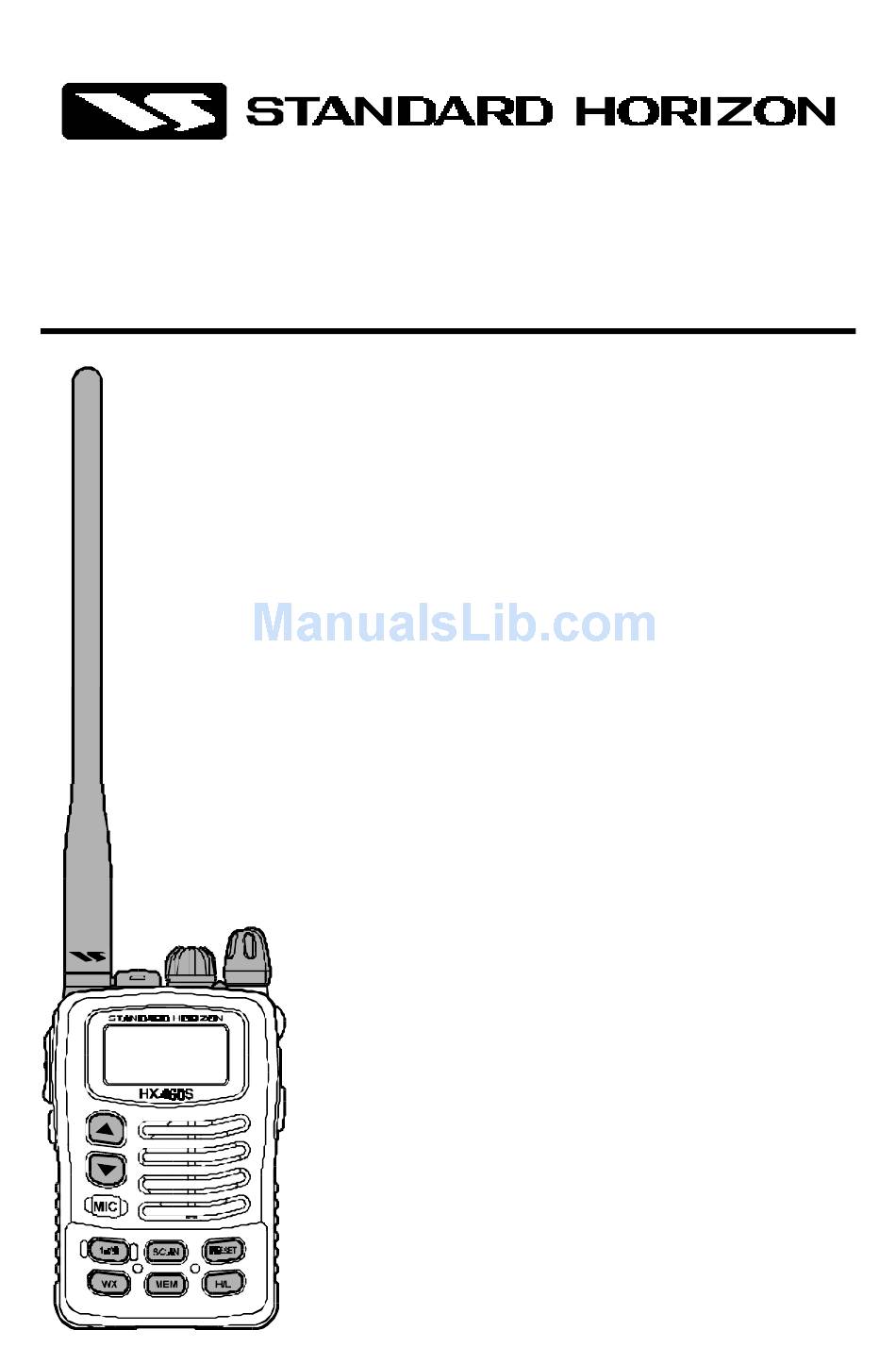

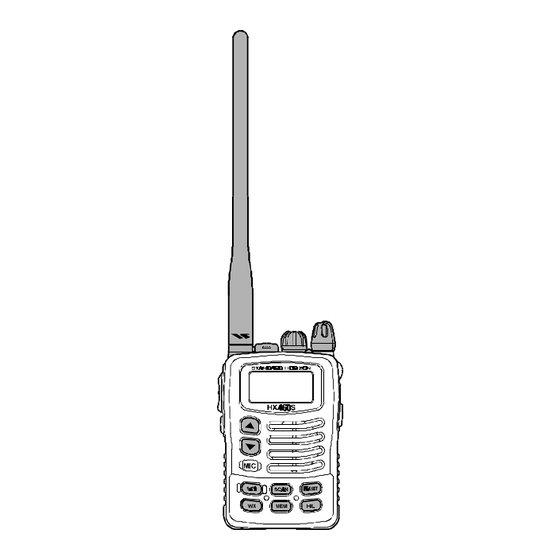

HX460S
VHF/FM Marine
Handheld Transceiver
Owner's Manual
VERTEX STANDARD CO., LTD.
4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan
YAESU U.S.A.
17210 Edwards Rd., Cerritos, CA 90703, U.S.A.
YAESU U.S.A. INTERNATIONAL DIVISION
8350 N.W. 52nd Terrace, Suite 201, Miami, FL 33166, U.S.A.
YAESU EUROPE B.V.
P.O. Box 75525, 1118 ZN Schiphol, The Netherlands
YAESU UK LTD.
Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
YAESU GERMANY GmbH
Am Kronberger Hang 2, D-65824 Schwalbach, Germany
YAESU HK LTD.
11th Floor Tsim Sha Tsui Centre, 66 Mody Rd.,
Tsim Sha Tsui East, Kowloon, Hong Kong
HX460S
Advertisement
Table of Contents
Related Manuals for Standard Horizon HX460S
Summary of Contents for Standard Horizon HX460S
- Page 1 HX460S VHF/FM Marine Handheld Transceiver Owner's Manual VERTEX STANDARD CO., LTD. 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan YAESU U.S.A. 17210 Edwards Rd., Cerritos, CA 90703, U.S.A. YAESU U.S.A. INTERNATIONAL DIVISION 8350 N.W. 52nd Terrace, Suite 201, Miami, FL 33166, U.S.A.
-
Page 2: Table Of Contents
CLONING ... 20 RESETTING THE TRANSCEIVER’S MICROPROCESSOR ... 21 BATTERY ... 23 BATTERY CHARGING ... 23 BATTERY REMOVAL/INSTALLATION ... 23 USING THE NC-72 BATTERY CHARGER ... 24 FBA-23 BATTERY CASE ... 24 BATTERY SAFETY... 25 MAINTENANCE ... 26 SPECIFICATIONS ... 27 HX460S... -
Page 3: Fcc Notice
Congratulations on your purchase of the HX460S! Whether this is your first portable marine VHF transceiver, or if you have other STANDARD HORI- ZON equipment, The STANDARD HORIZON organization is committed to ensuring your enjoyment of this high-performance transceiver, which should provide you with many years of satisfying communications even in the harsh- est of environments. -
Page 4: General Information
1. GENERAL INFORMATION 1.1 INTRODUCTION The HX460S is a miniature 5-Watt portable two-way VHF marine transceiver. The transceiver has 173 channels: 163 marine and 10 weather. The 163 marine channels are switchable to comply with USA, International, or Cana- dian regulations. It has an emergency channel 16 which can be immediately selected from any channel by pressing the 16/9 key. -
Page 5: Accessories
E-DC-6 DC Cable; plug and wire only MCC460 Soft Case CAW230 SMA - SO239 Adapter Note: Before operating the HX460S for the first time, it is recommended that the battery be charged. Please see section 5.3 OPERATING BATTERY CHARGER for details. -
Page 6: Controls And Indicators
UP ( p ) KEY Selects the desired channel. Each press increases the channel number. When held down, the channels increase continuously. Page 4 NOTE ” will appear, to indicate that the functions are ” disappears to unlock HX460S... - Page 7 Figure 1 Controls and Connectors HX460S Page 5...
-
Page 8: Ext Dc Jack
(P is shown on the left side of the display during Priority scanning). EXT DC JACK This DC jack allows connection to an external DC power source (6-16V DC). Page 6 HX460S... -
Page 9: Indicators
” indicates high power; “ ” indicates medium power; and “ ” is for low power. “Blank” in this location indicates a reception-only channel. PRI Indicator Priority Scan is activated. SCN Indicator Scan is activated. TX Indicator Appears during transmission. HX460S Page 7... - Page 10 PTT switch. The battery indicator should be used only as a guide in charg- ing the CNB460 battery. KEY Lock Indicator When the symbol is shown on the LCD, all keys are disabled except for the H/L, PTT and LAMP keys. Page 8 HX460S...
-
Page 11: Operation
How to use the Quick Draw Belt Clip 1. Connect the hanger to the rear of the HX460S, using the supplied screw (Figure 4-a). Use only the screw included... -
Page 12: Reception
” symbol will appear on the display to indicate that the keypad is locked. Hold down the LAMP key for about one second to unlock the keys. The “ ” symbol will disappear from the display. . Page 10 HX460S... -
Page 13: Transmission
PTT switch is held down. Before transmitting again, the PTT switch must first be released, then pressed again. This Time-Out Timer (TOT) pre- vents a continuous transmission that would result from an accidentally stuck PTT switch. HX460S NOTE ” is ” (Medium power) -
Page 14: Usa, Canadian, And International Bands
5. All channels programmed remain in the transceiver’s scan memory even if the power is turned off. See section 4.17: “RESETTING THE TRANSCEIVER’S MICROPROCESSOR” to clear all channels from the transceiver’s scan memory. Page 12 HX460S... -
Page 15: Priority Scan
“dual watch” mode between this channel and the priority channel. Therefore, your priority watching of the designated channel is not compromised when the scanner has paused on an active channel. HX460S [ CH07 ] [ Priority Channel ] à... -
Page 16: Noaa Weather Alert
Hold down the 16/9 key for 1 second to select channel 9. You should shift to a different channel, by mutual agreement with the other vessel’s operator, after contact is established (so as to keep the hailing chan- nel clear for other users). Page 14 HX460S... -
Page 17: Operating On Channel 13
~ E. To delete a Preset Channel, hold down the PRESET key and press the [ p ] or [ q ] key until the Preset Channel number to be deleted is displayed, then release the PRESET key. HX460S Page 15... -
Page 18: Operation
Simplex or duplex mode is automatically activated, depending on the channel and whether the USA, International or Canadian operating band is selected. Refer to the channel charts in the OWNER’S MANUAL SUPPLEMENT. Page 16 HX460S... -
Page 19: Barometric Pressure Meter
4.16 BAROMETRIC PRESSURE METER The optional Barometric Pressure unit (SU-1) brings to the HX460S the unique capability of providing readout of the current barometric pressure. The SU-1 unit requires calibration of the ‘offset’ parameters, so that the pressure reading will be correct. To do this you must have a barometer to use as a reference as you adjust the SU-1 to match its reading;... -
Page 20: Setup Mode
4.17 SETUP MODE The HX460S’s Setup Mode allows a number of the HX460S operating pa- rameters to be custom-configured for your operating requirements. The Setup Mode is easy to activate and set, using the following procedure: 1. Turn the radio off. - Page 21 AROMETRIC Function: Calibrating the Barometric Pressure meter. Press the [ p ] or [ q ] key to set the HX460S’s Barometric Pressure display to match a Calibrated Barometer’s displayed pressure. See page <<??>> for a Barometric Pressure Conversion Chart.
-
Page 22: Cloning
The HX460S includes a convenient “Clone” feature, which allows the memory and configuration data from one transceiver to be transferred to another HX460S. Here is the procedure for Cloning one radio’s data to another: 1. Turn both radios off. 2. Connect the (optional) the two transceivers. -
Page 23: Resetting The Transceiver's Microprocessor
WX channel 01 will be recalled when the WX key is pressed. • Preset Channels are unassigned. The above procedure also resets the microprocessor. Perform this pro- cedure if an operational problem occurs which cannot be solved by nor- mal operating procedures. HX460S NOTE Page 21... -
Page 24: Battery
3. To install, insert the battery pack into the battery compartment on the back of the transceiver, then close the Battery Pack Latch until it locks in place with a “click.” Page 22 CAUTION Close the Battery Pack Latch Figure 6 HX460S... -
Page 25: Using The Nc-72 Battery Charger
5.4 FBA-23 BATTERY CASE FBA-23 is a battery case that holds two alkaline batteries and is used with the HX460S transceiver. Alkaline batteries can be used for transmission in an emergency, but power output will only be short. -
Page 26: Battery Safety
Batteries must be recycled or disposed of properly. For requirements in your area, check with the dealer from whom you purchased your transceiver. The symbol shown at the right is a reminder that the battery packs are recyclable. Page 24 HX460S... -
Page 27: Maintenance
Cannot change any function. Key Lock does not function. Indicator does not light when charging a battery. HX460S PROBABLE CAUSE No channels Use the MEM key to enter memorized. desired channels into the transceiver’s memory. Squelch is not Adjust the squelch to adjusted. -
Page 28: Specifications
96 (H) x 60 (W) x 29 (D) mm <<??>> 156.025 - 157.425 MHz 5 W/2.5 W/1 W @7.2 V or 13.8 V At least 65 dB down <5 % @1 kHz ±5 kHz ±5 ppm >40 dB down Condenser HX460S... - Page 29 IFs: Sensitivity: Adjacent channel selectivity: 70 dB Intermodulation response: Spurious response rejection: 70 dB Speaker impedance: AF output: HX460S 156.050 - 163.275MHz Double-conversion superheterodyne 1st: 21.7 MHz 2nd: 450 kHz 0.2 µV 12 dB SINAD 70 dB 0.4 W @ 8 10 % THD (7.2V)
- Page 30 MEMO HX460S...
- Page 31 HX460S...
- Page 32 Copyright 2000 VERTEX STANDARD CO., LTD. All rights reserved. Printed in Japan E C 0 1 0 N 1 0 0 No portion of this manual may be reproduced without the permission of VERTEX STANDARD CO., LTD. HX460S...
