Standard Horizon HX471S Owner's Manual

Standard Horizon HX471S Owner's Manual

Submersible multi band marine portable
Hide thumbs Also See for HX471S:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
Submersible Multi Band Marine Portable
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HX471S and is the answer not in the manual?

Questions and answers

Grant Landry
May 6, 2025

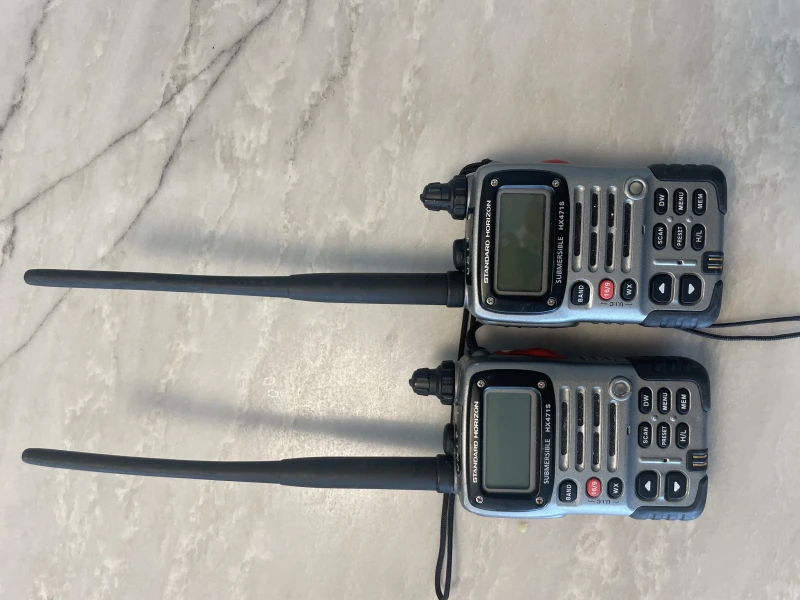

Haven’t used the pair of HX471S radios in a couple of years. I installed new battery’s in each but they is no response when I turn them on. Any idea why that is?

User image 681a72d104581
0
1 comments:
Mr. Anderson
May 18, 2025

If the Standard Horizon HX471S radios do not turn on after installing new batteries, possible reasons could include:

1. Battery voltage is too low.
2. Battery is not properly connected or seated.
3. Battery is not compatible or defective.
4. Microprocessor needs to be reset.

Check the battery connections and voltage, and if needed, perform a microprocessor reset.

This answer is automatically generated

0

Related Manuals for Standard Horizon HX471S

Summary of Contents for Standard Horizon HX471S

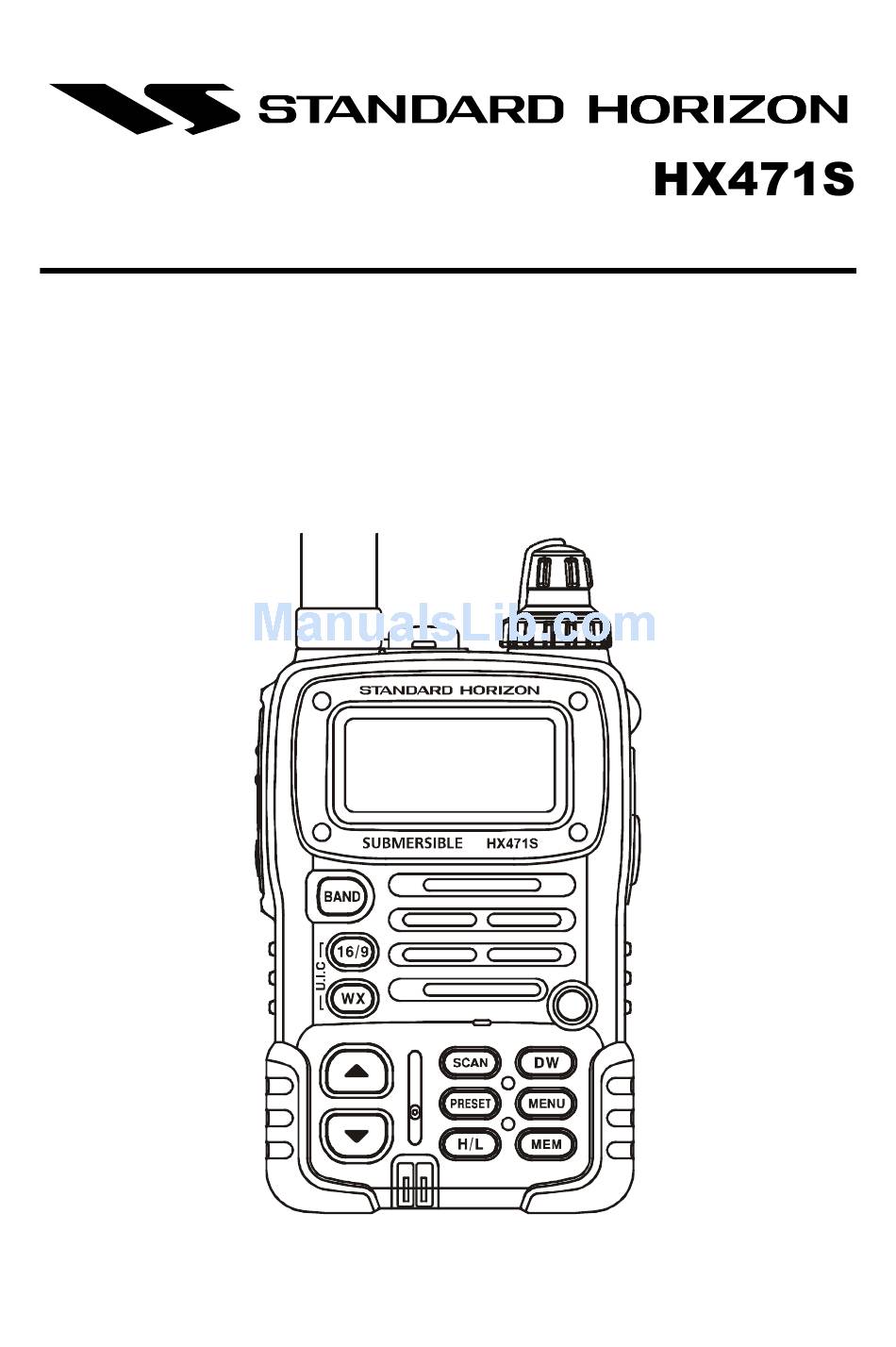

  • Page 1 Submersible Multi Band Marine Portable Owner's Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS RF EXPOSURE SAFETY STATEMENT ..................2 FCC AND CANADA RADIO LICENSE INFORMATION .............. 3 FCC NOTICE ..........................5 1. GENERAL INFORMATION ...................... 6 1.1 INTRODUCTION ......................6 2. ACCESSORIES ........................7 2.1 PACKING LIST ........................7 2.2 OPTIONS .......................... 7 3.
  • Page 3 Congratulations on your purchase of the HX471S! Whether this is your first portable marine VHF transceiver, or if you have other STANDARD HORI- ZON equipment, the STANDARD HORIZON organization is committed to ensuring your enjoyment of this high performance transceiver, which should provide you with many years of satisfying communications even in the harsh- est of environments.

  • Page 4: Rf Exposure Safety Statement

    Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter, and may violate FCC regu- lations. NOTE This radio telephone complies with the requirements of RTCM Paper 56-95/SC101 Standards for digital selective calling (DSC) for Marine transceivers. Page 2 HX471S...

  • Page 5: Fcc And Canada Radio License Information

    FCC AND CANADA RADIO LICENSE INFORMATION Standard Horizon radios comply with the Federal Communication Commis- sion (FCC) and Industry-Canada requirements that regulate the Maritime Radio Service. MARITIME STATION LICENSE An FCC ship station license is no longer required for any vessel traveling in U.S.
  • Page 6 No FCC license is required to use the FRS Frequencies. You are allowed to operate the HX471S on the FRS channels if you are not a representative of a foreign government, and if you cooperate in the selection and use of chan- nels in order to reduce interference to others.

  • Page 7: Fcc Notice

    Unauthorized changes or modifications to this equipment may void compli- ance with FCC Rules. Any change or modification must be approved in writ- ing by STANDARD HORIZON, a Marine Division of VERTEX STANDARD. NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 8: General Information

    [16/9] key. NOAA Weather channels can also be accessed immediately by pressing the [WX] key. In addition to these functions the HX471S can transmit a Digital Selec- tive Distress Call with Latitude/Longitude when a GPS is connected to the CD-25 Cradle Charger.

  • Page 9: Accessories

    Charger for the FNB-80LI E-DC-6 DC Cable; plug and wire only Note: Before operating the HX471S for the first time, it is rec- ommended that the battery be charged. Please see section 4.1.4 “USING THE CD-25 CHARGER CRADLE” for details.

  • Page 10: About This Radio

    FRS CHANNEL CHART 462.5625 MHz 462.6625 MHz 467.5875 MHz 467.6875 MHz 462.5875 MHz 462.6875 MHz 467.6125 MHz 467.7125 MHz 462.6125 MHz 462.7125 MHz 467.6375 MHz - - - 462.6375 MHz 467.5625 MHz 467.6625 MHz - - - Page 8 HX471S...
  • Page 11 Also, you must at all times and on all FRS channels, give priority to emer- gency messages [95.193(d)]. Refer to page 23 (reception), 24 (transmitting), and 33 (CTCSS) for operation. HX471S Page 9...

  • Page 12: About Receive Only Channels And Frequencies

    3.3 ABOUT RECEIVE ONLY CHANNELS and FREQUENCIES AM/FM Broadcast Bands The AM/FM bands contained within the HX471S are the same channels you use every day to listen to music, news and commentary with your car or home stereo. The AM broadcast band currently extends from 530 to 1700 kHz.
  • Page 13 U.S. MURS channels can be received on this radio. The frequency and channel number is as follows. MURS CHANNEL CHART 151.820 MHz 151.880 MHz 151.940 MHz 154.570 MHz 154.600 MHz HX471S Page 11...

  • Page 14: Getting Started

    DO NOT INCINERATE: Do not dispose of any battery in a fire or incinerator. The heat of fire may cause battery cells to explode and/or release danger- ous gases. Page 12 HX471S...
  • Page 15 Battery packs should be charged only in non-hazardous environments; r Use only STANDARD HORIZON-approved batteries; r Use only a STANDARD HORIZON, (a Marine Division of VERTEX STANDARD) approved charger. The use of any other charger may cause permanent damage to the battery.
  • Page 16 Battery Pack Latch until it locks in place with a “click.” 3. To remove, open the Battery Pack Latch on the bottom of the trans- ceiver, then slide the battery downward and out from the transceiver. Page 14 HX471S...
  • Page 17 2. Insert the DC plug from the NC-72 into the DC jack on the CD-25 rear panel, then plug the NC-72 into the AC line outlet. 3. Insert the HX471S (with the battery pack) into the CD-25; the antenna should be at the left side when viewing the charger from the front.
  • Page 18 When using the HX471S/CD-25 on the vessel, be sure to secure the mount- ing band on the CD-25 so that it secures the HX471S so it will not fall out due to rough seas. See the illustration below. Page 16...

  • Page 19: Connecting A Gps To The Cd-25

    Green – NMEA Negative (Connects to NMEA Negative or battery Ground of GPS) If you have further inquires, please feel free to contact us at: Phone: (800) 767-2450 Fax: (714) 527-9031 Web site: standardhorizon.com Email: marinetech@vxstdusa.com HX471S ( CD-25 ) HX471S ( CD-25 ) Manufacturer/Model Wires Manufacturer/Model Wires...

  • Page 20: Controls And Switches

    5. CONTROLS AND SWITCHES NOTE This section defines each control of the transceiver. For detailed oper- ating instructions, refer to section 6 “BASIC OPERATION.” Refer to il- lustrations for the location of the following controls, switches, and con- nections. Page 18 HX471S...
  • Page 21 Recalls the previously- selected working channel when the [WX] key is pressed again. Secondary use: When the [16/9] key is held and the [WX] key is pressed, the radio will change the marine channel between the USA, International, and Cana- dian channels. HX471S Page 19...
  • Page 22 [MENU] KEY Select the Marine Band then press to select the Setup mode. This mode allows features and functions to be changed. Refer to section 13. MENU (“SET”) MODE for additional information. Page 20 HX471S...
  • Page 23 When radio is programmed with a MMSI and this key is pressed once and pressed and held again for 3 seconds the radio will transmit a DSC Distress Call. To send the distress call, see section 7.9 “DIGITAL SE- LECTIVE CALLING.” HX471S Page 21...

  • Page 24: Basic Operation

    MIC/SP jack. How to use the Quick Draw Belt Clip 1. Connect the hanger to the rear of the HX471S, with the notch pointing directly up, using the supplied screw (Figure 1). Use only the screw included with the clip to mount the clip to the back of the transceiver! 2.

  • Page 25: Reception

    8. Press the [SCAN] key momentarily; the HX471S will begin scanning to- ward a higher channel or frequency and will stop when it receives a signal strong enough to break through the squelch threshold.

  • Page 26: Transmission

    PTT switch is held down. Before transmitting again, the PTT switch must first be released, and then pressed again. This Time-Out-Timer (TOT) prevents a continuous transmission that would result from an accidentally stuck PTT switch. Page 24 HX471S...

  • Page 27: Noaa Weather Channels

    4. When an alert is received on a weather channel, scanning stops and the transceiver emits a beeping tone that will stay on for 5 minutes. 5. Press the [WX] key to listen to the Weather Alert. HX471S Page 25...

  • Page 28: Preset Channels (P0 ~ P9)

    LCD, and preset channel “P1” is represented by “P1” and so forth. Press the [SCAN] key while on any of the Preset Channels, the HX471S will begin scanning the Preset Channels of the selected band. Page 26...

  • Page 29: Enabling S.o.s Strobe Operation

    6.6 ENABLING S.O.S STROBE OPERATION The S.O.S. STROBE feature utilizes the high-intensity strobe LED on the front of the HX471S as a visual distress beacon. When enabled, the LED blinks the internationally-recognized Morse Code “S.O.S.” message ( • • • – – – • • • ) at a rate of 5 words per minute. This can be very useful in summoning help from rescuers who may not be able to communicate with you via radio.

  • Page 30: Advanced Operation On The Marine Band

    7.2 MEMORY SCAN The HX471S can be programmed to scan channels from a minimum of 2 channels up to all channels in the marine band. If an incoming signal is detected on one of the channels during scan, the radio will pause on that channel, allowing you to listen to the incoming transmission.

  • Page 31: Priority Scan

    5. Hold down the [SCAN] key to change the priority scanning to normal scanning, and then press the [SCAN] key to stop the scan and return to normal operation. HX471S Page 29...

  • Page 32: Dual Watch

    2.5 Watts (M) will be selected. When the PTT switch is released, the transceiver will revert to low power. Press and hold in the [H/ L] key again if you need High power on a subsequent transmission. Page 30 HX471S...

  • Page 33: Operating On Usa Channel 67

    The HX471S has a DSC Distress feature that allows mariners to instantly transmit a VHF Marine distress call with GPS position (when connected to the transceiver) to the US Coast Guard and other vessels within range of the transmission.

  • Page 34: Simplex/Duplex Chanel Use

    LCD. 2. Press and hold in the [DISTRESS] key for 3 seconds. The LCD will count down (3s, 2s, 1s), and afterwards the HX471S will transmit the DSC Distress Call on channel 70. 3. When the distress signal is being sent, “TX” icon will appear on the LCD.

  • Page 35: Ctcss Operation On The Frs Band

    The HX471S allows you to program CTCSS codes for each FRS channel. If multiple signals are transmitted on the channel you selected, you will only hear the transmission of other stations with the same CTCSS tone that was programmed in the HX471S.

  • Page 36: Barometer And Scrambler Operation

    9. BAROMETER AND SCRAMABLER OPERATION 9.1 BAROMETRIC PRESSURE METER The optional Barometric Pressure unit (SU-1) brings to the HX471S the unique capability of providing readout of the current barometric pressure and display the relative changes in the pressure (Upward ( ) or Downward ), Count: every 1/2 hour).

  • Page 37: Operating Practice

    U.S. waters by using Channel 9 as the initial contact (hailing) channel for non-emergency communications. Here, also, calling time should not exceed 30 seconds but may be repeated 3 times at 2-minute intervals. HX471S Page 35...

  • Page 38: Operating On Channel 13 And 67

    However, in certain situations it may be necessary to temporarily use a higher power. See page 20 ( [ H/L ] key) for means to temporarily over- ride the low-power limit on these two channels. Page 36 HX471S...

  • Page 39: Prohibited Communications

    “Weather Alarm” purposes (refer to section 6.4.1 “NOAA WEATHER ALERT” for a discussion of how to use this feature). The 1050 Hz tone, when de- tected, will produce a loud beep in the speaker of the HX471S, to signal that a Weather Alert Broadcast is being received.

  • Page 40: Resetting The Transceiver's Microprocessor

    • WX channel 01 will be recalled when the [WX] key is pressed. • Preset Channels are unassigned. Note: The above procedure also resets the microprocessor. Perform this procedure if an operational problem occurs which cannot be solved by nor- mal operating procedures. Page 38 HX471S...

  • Page 41: Cloning

    12. CLONING The HX471S includes a convenient “Clone” feature, which allows the memory and configuration data from one transceiver to be transferred to another HX471S. Turn both radios off. 1. Connect the (optional) CT-32 Clone Cable between the MIC/SP jacks of the two transceivers.

  • Page 42: Menu ("Set") Mode

    Default: ON BARO OFFSET (Requires optional SU-1) Function: Calibrating the Barometric Pressure meter. Press the [p] or [q] key to set the HX471S’s Barometric Pressure display to match a Calibrated Barometer’s displayed pressure. Available Values: –127 to +127 Default: 000 BARO UNIT (Requires optional SU-1) Function: Selects the Units Of Measure of the Barometric display.
  • Page 43 ø2: Requires GPS receiver. GPS NAV Info CH name BARO Time None DISTRESS RING Function: Selects how long the DSC Distress alarm will ring Available Values: 3 min / 5 times / 10 times / 15 times Default: 3 min HX471S Page 41...
  • Page 44 Default: Special When “Special” is selected the channel shown on the display is the last channel the HX471S received a call on. This is a handy feature if you cannot look at the radio the moment a transmission was received...
  • Page 45 GPS receiver via the CD-25 Charger Cradle. Available Values: –12 to +12 Default: 00 WX ALERT Function: Enable/Disable the Weather Alert feature. Available Values: ON / OFF Default: ON HX471S Page 43...

  • Page 46: Maintenance

    Ensure that the input voltage does not exceed the value specified in your Owner’s Manual. r Use only STANDARD HORIZON-approved accessories and replacement parts. 14.2 REPLACEMENT PARTS Occasionally an owner needs a replacement parts. These can be ordered...

  • Page 47: Troubleshooting Chart

    5, LAMP key. . Key Lock does not Proper operation not Hold down the LAMP key for 1 function. followed. second. Indicator does not light Defective battery Contact your Standard Horizon when charging a FNB-80LI. dealer. battery. HX471S Page 45...

  • Page 48: Installation Of Options

    15.2 FBA-23 BATTERY CASE FBA-23 is a battery case that holds two alkaline batteries and is used with the HX471S transceiver. Alkaline batteries can be used for transmission in an emergency, but power output is reduced to one watt, and battery life will be short.

  • Page 49: Vhf Marine Channel Assignment

    Canada operation, using the USA/CAN/INTL channel selection proce- dure described on page 28 of this manual. Channel 22 (without an “A”) is an International duplex channel for port operations. The HX471S dis- plays an “A” adjacent to the channel number on all “Alpha” channels, unlike some other models that may not indicate the “A”...
  • Page 50 157.050 161.650 Port operation, ship movement 21A X X 157.050 U.S. Government Only, Canadian Coast Guard 157.100 161.700 Port operation, ship movement 22A X X 157.100 US and Canadian Coast Guard Liaison and Maritime Safety Information Broadcasts announced on channel 16 Page 48 HX471S...
  • Page 51 Port Operations ( Inter-ship only ) (1W) Port Operations ( Inter-ship only ) (1W) 156.875 Port Operations ( Inter-ship only ) 156.875 156.925 161.525 Public Correspondence ( Marine Operator ) , Port operation, ship-movement Non-commercial ( Recreational ) 78A X X 156.925 HX471S Page 49...
  • Page 52 161.775 Weather ( receive only ) - - - WX10 X X X 163.275 Weather ( receive only ) - - - The above BOLD channels are not for use of the general public in U.S. waters, unless proper authorization is given. Page 50 HX471S...
  • Page 53 Corporation or the U.S. Coast Guard. The use of these frequencies outside VTS and ship movement sector protected areas is permitted provided they cause no interference to VTS and ship movement communications in thier respective designated sectors. HX471S Page 51...
  • Page 54 16: The frequency 156.450 MHz is available for intership, ship and coast general purpose calling by noncommercial vessels, such as recreational boats and private coast stations. 17: The frequency 156.425 MHz is assigned by rule to private coast stations in Alaska for facsimile transmissions as well as voice communications. Page 52 HX471S...

  • Page 55: Warranty

    Product or part(s) therein which, upon examination by STANDARD HORIZON, appear to be defec- tive or not up to factory specifications. STANDARD HORIZON may, at its option, repair or replace parts or subassemblies with new or reconditioned parts and subassemblies.
  • Page 56 This warranty only extends to Products sold within the 50 States of the United States of America and the District of Columbia. STANDARD HORIZON will pay all labor to repair the product and replacement parts charges incurred in providing the warranty service except where purchaser abuse or other qualifying exceptions exist.
  • Page 57 Product Support Inquiries If you have any questions or comments regarding the use of the HX471S, you can visit the STANDARD HORIZON Web site to send an E-mail or contact the Product Support team at (714) 827-7600 ext 6300 M-F 7:00- 5:00PST.

  • Page 58: Specifications

    –22 °F to +140 °F (–30 °C to +60 °C) Case Size (W x H x D): 2.36” x 3.78” x 1.12” (60 x 96 x 29 mm) w/o knob & antenna Weight (Approx.): 9.3 oz. (265 g) with FNB-80LI Page 56 HX471S...
  • Page 59 This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. Part 15.21: Changes or modifications to this device not expressly ap- proved by Vertex Standard could void the User’s authorization to oper- ate this device. HX471S Page 57...
  • Page 60 This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. Part 15.21: Changes or modifications to this device not expressly ap- proved by Vertex Standard could void the User’s authorization to oper- ate this device.
  • Page 61 Copyright 2003 VERTEX STANDARD CO., LTD. Marine Division of VERTEX STANDARD All rights reserved. US Headquarters No portion of this manual 10900 Walker Street, Cypress, CA 90630, U.S.A. may be reproduced 0306q-0K without the permission of VERTEX STANDARD CO., LTD. Printed in Japan...
