ASSEMBLY

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking Wheel Spacer
(94)–4
belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to
the top of the walking belt or the shipping carton. This does not affect treadmill performance. If there is lubricant
on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver , rubber
1/2" Screw (119)–1
mallet , adjustable wrench , and wire cutters .
3/4" Tek Screw (58)–8

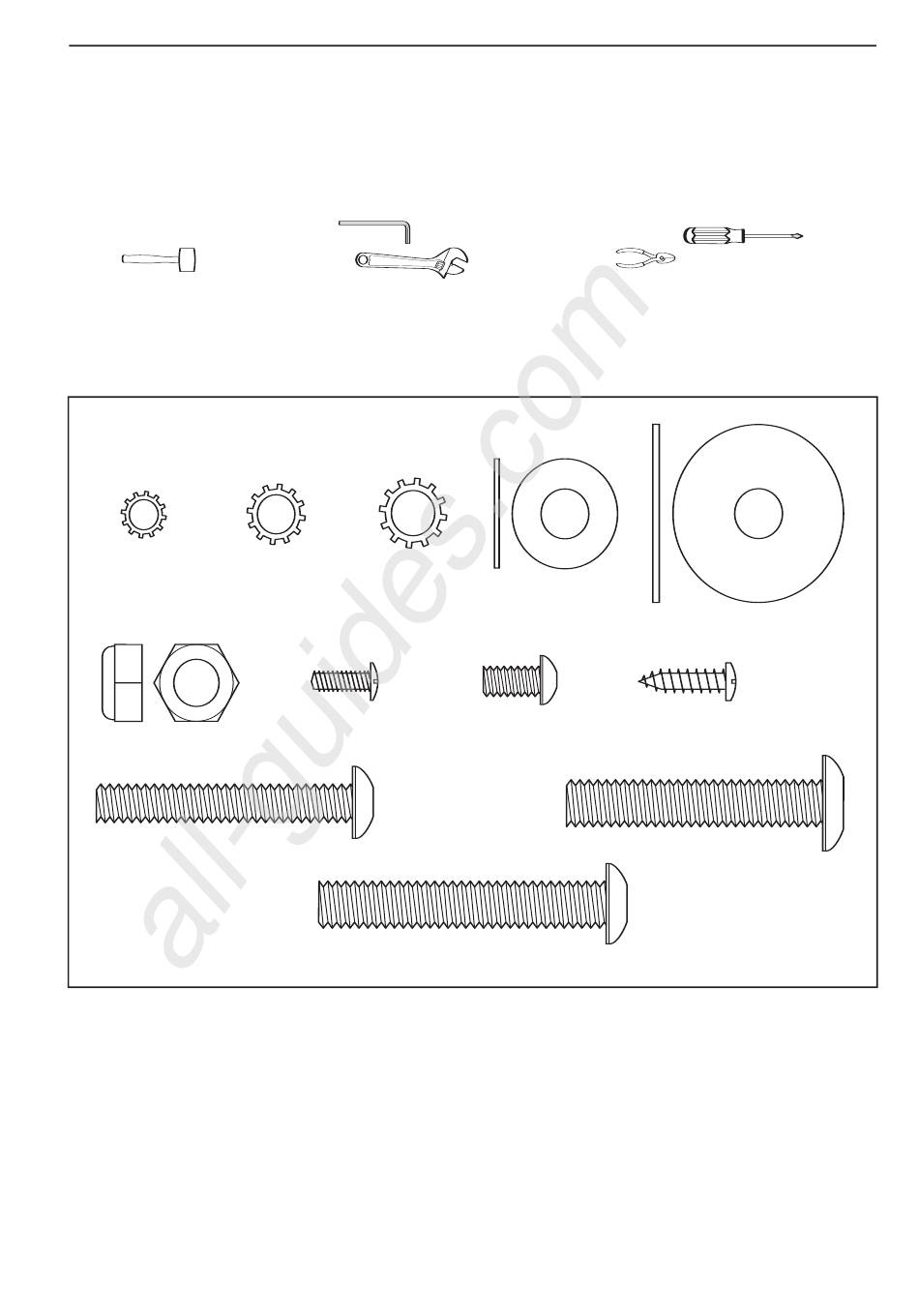

For help identifying the assembly hardware, see the drawings below. The number in parentheses below each
drawing is the key number of the part, from the PART LIST in the center of this manual. The number following the
parentheses is the quantity needed for assembly. Note: If a part is not in the parts bag, check to see if it has
been pre-assembled. To avoid damaging plastic parts, do not use power tools for assembly.
1/4" Star
Handrail Star
Upright Star
Washer (8)–2
Washer (11)–4
Washer (6)–4 Upright Washer
(7)–2
Frame Washer
(65)–2
Silver Ground
Console
3/4" Screw (3)–6
Screw (10)–2
Bolt (2)–2
Nut (12)–2
Handrail Bolt (9)–4
Upright Bolt (4)–4
Frame Bolt (1)–2
6
