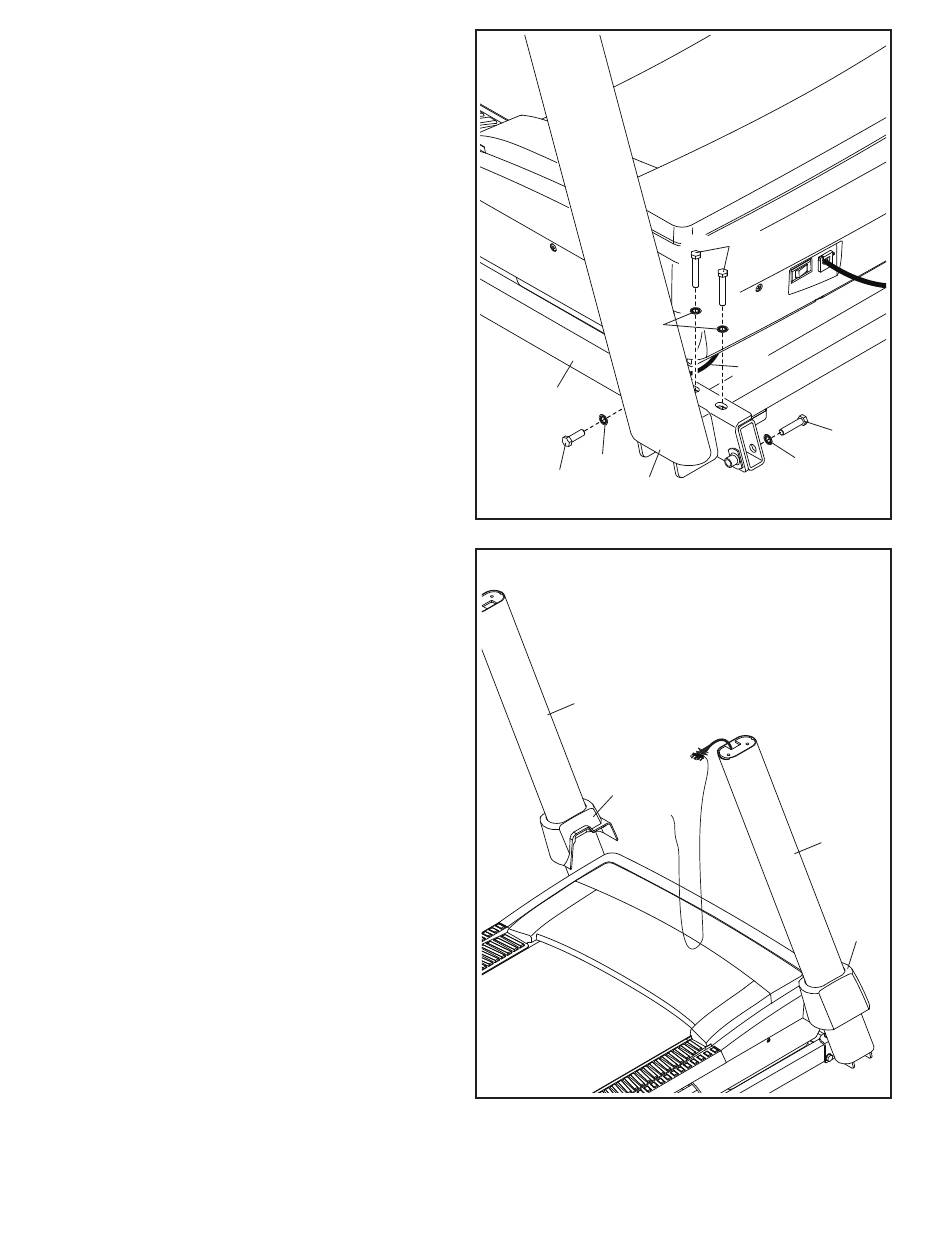

4. Hold the Right Upright (86) against the Base
(97). Make sure not to pinch the Upright
Wire (88).
Insert two 3/8" x 2 3/8" Screws (3) with two 3/8"
Star Washers (11) into the top of the bracket
on the Right Upright (86), and partially tighten
the two Screws into the Base (97); do not fully
tighten the Screws yet.
Next, partially tighten a 3/8" x 1 1/4" Screw (1)
and a 3/8" x 1 3/4" Screw (2) with 3/8" Star
Washers (11) into the bottom of the Right Upright
(86); do not fully tighten the Screws yet.
Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the left
side.
5. Identify the Left and Right Base Covers (93, 92).
Slide the Left and Right Base Covers onto the
Left and Right Uprights (85, 86) as shown.
