4 Operation
▪ Defrost operation. During heating operation, frost might occur on
the outdoor unit and decrease the heating capacity. In that case,
the system automatically switches to defrosting operation to
remove the frost. During defrosting operation, hot air is NOT
blown from the indoor unit.
▪ Humidity sensor. Control the humidity by decreasing the
humidity during cooling process.

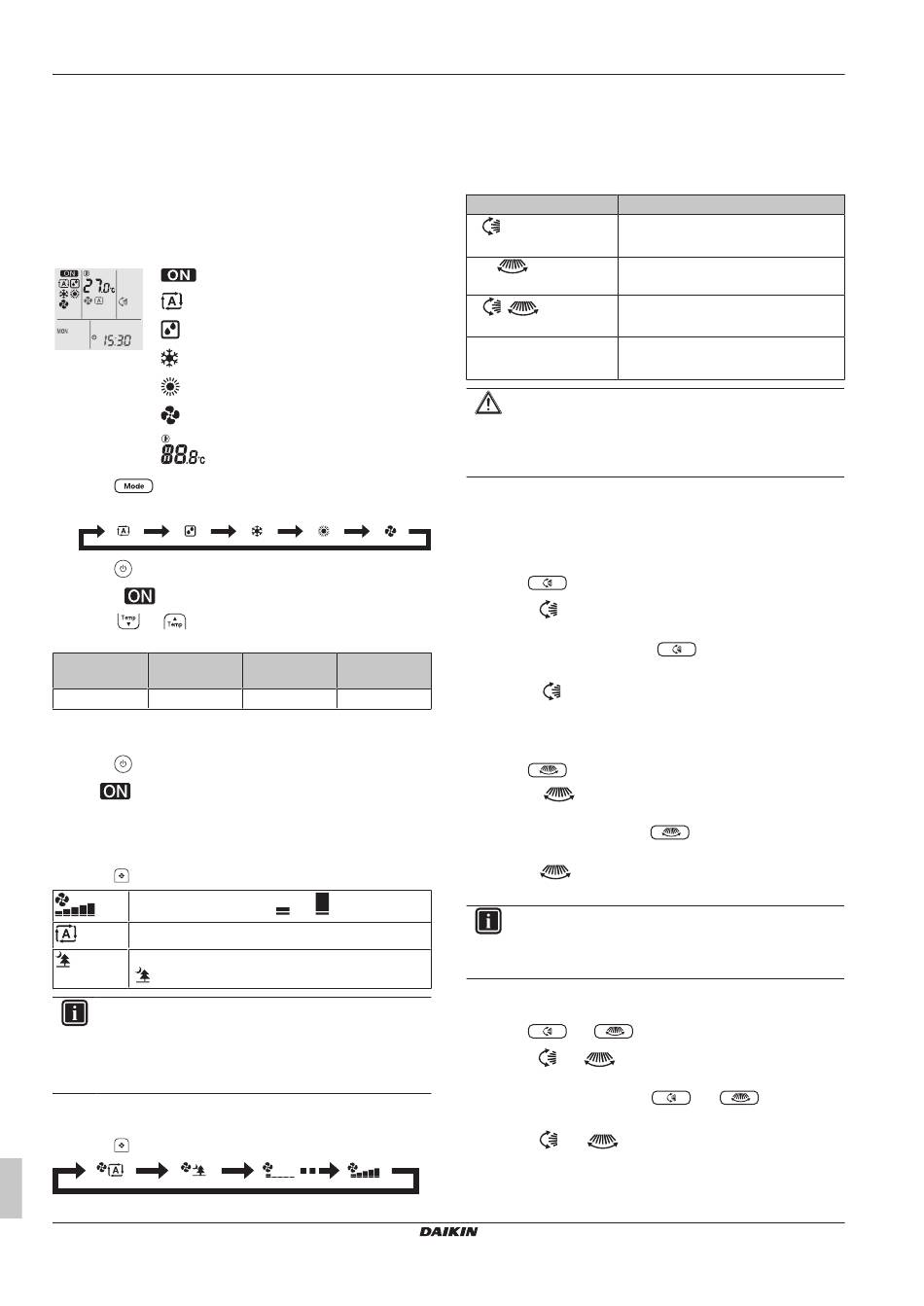

4.2.1 To start/stop operation mode and to set
the temperature
: Unit is operating.
: Operation mode = Automatic
: Operation mode = Drying
: Operation mode = Cooling
: Operation mode = Heating
: Operation mode = Fan only
: Shows the set temperature.
1 Press one or more times to select the operation mode.
Result: The mode will be set as follows:
2 Press to start operation.
Result: and the selected mode are displayed on the LCD.
3 Press or one or more times to lower or raise the
temperature.
Cooling Heating
operation operation
18~32°C 10~30°C
Note: When using drying or fan only mode, you cannot adjust the
temperature.
4 Press to stop operation.
Result: disappears from the LCD. The operation lamp goes
off.
4.3

Airflow rate

1 Press to choose:
5 airflow rate levels, from "
Automatic operation
Indoor unit quiet operation. When the airflow is set to
" ", the noise from the unit will be reduced.
INFORMATION
▪ If the unit reach the temperature setpoint in cooling,
heating or automatic mode. Fan will stop operating.
▪ When using drying operation mode, you CANNOT
adjust the airflow rate setting.
4.3.1

To adjust the airflow rate

1 Press to change the airflow setting as follows:
Operation manual
6
Automatic Drying or Fan
operation only operation
18~30°C —
" to " "
4.4

Airflow direction

When. Adjust the airflow direction as desired.
What. The system directs the airflow differently, depending on the
user selection (swinging or fixed position). It does so by moving
horizontal blades (flaps) or vertical blades (louvers).
Setting
Moves up and down.
Vertical automatic
swing
Moves from side to side.
Horizontal
automatic swing
Moves alternately up and down and
+ 3-D airflow
from side to side
direction
[—] Stays in a fixed position.
CAUTION
ALWAYS use a user interface to adjust the position of the
flaps and louvers. When the flaps and louvers are swinging
and you move them forcibly by hand, the mechanism will
break.
The movable range of the flap varies according to the operation
mode. The flap will stop at the upper position when the airflow rate is
changed to low during the up and down swing setting.
4.4.1

To adjust vertical airflow direction

1 Press .
Result: appears on the LCD. The flaps (horizontal blades)
will begin to swing.
2 To use fixed position, press
desired position.
Result: disappears from the LCD. The flaps will stop
moving.
4.4.2

To adjust horizontal airflow direction

1 Press .
Result: appears on the LCD. The louvers (vertical
blades) will begin to swing.
2 To use fixed position, press
desired position.
Result: disappears from the LCD. The louvers will stop
moving.
INFORMATION
When the unit is installed in a corner of a room, the
direction of the louvers should be facing away from the
wall. Efficiency will drop if a wall blocks the air.
4.4.3

To use 3-D airflow direction

1 Press and .
Result: and appear on the LCD. The flaps (horizontal
blades) and louvers (vertical blades) will begin to swing.
2 To use fixed position, press
and louvers reach the desired position.
Result: and disappear from the LCD. The flaps and
the louvers will stop moving.
CTXA15+FTXA25~50(A)(B)2V1B(W)(S)(T)(B)
Airflow direction
when the flaps reach the
when the louvers reach the
and when the flaps
Daikin room air conditioner
3P485919-7P – 2019.10
