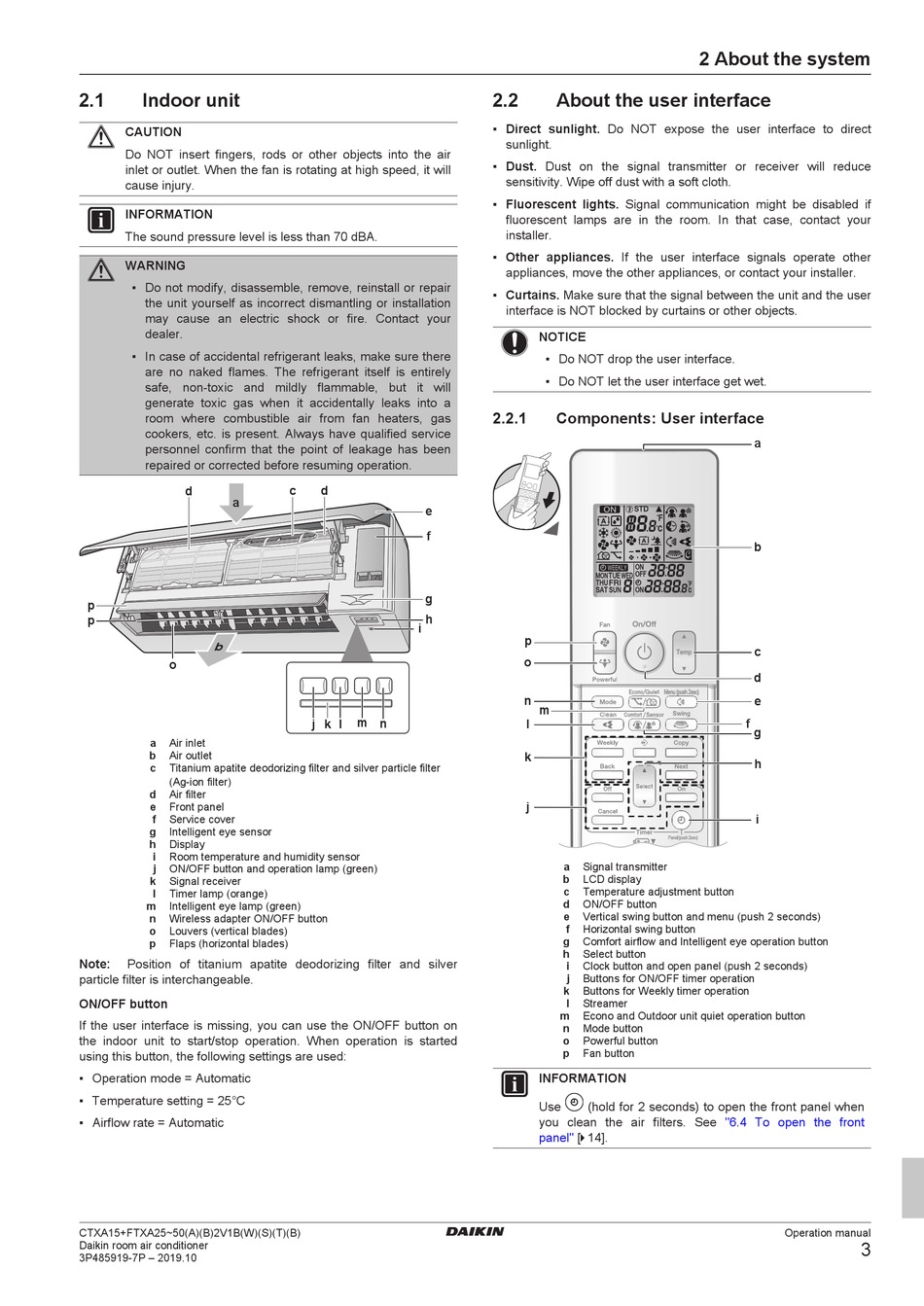

2.1

Indoor unit

CAUTION
Do NOT insert fingers, rods or other objects into the air
inlet or outlet. When the fan is rotating at high speed, it will
cause injury.
INFORMATION
The sound pressure level is less than 70 dBA.
WARNING
▪ Do not modify, disassemble, remove, reinstall or repair
the unit yourself as incorrect dismantling or installation
may cause an electric shock or fire. Contact your
dealer.
▪ In case of accidental refrigerant leaks, make sure there
are no naked flames. The refrigerant itself is entirely
safe, non-toxic and mildly flammable, but it will
generate toxic gas when it accidentally leaks into a
room where combustible air from fan heaters, gas
cookers, etc. is present. Always have qualified service
personnel confirm that the point of leakage has been
repaired or corrected before resuming operation.
d
a
p
p
o
a Air inlet
b Air outlet
c Titanium apatite deodorizing filter and silver particle filter
(Ag-ion filter)
d Air filter
e Front panel
f Service cover
g Intelligent eye sensor
h Display
i Room temperature and humidity sensor
j ON/OFF button and operation lamp (green)
k Signal receiver
l Timer lamp (orange)
m Intelligent eye lamp (green)
n Wireless adapter ON/OFF button
o Louvers (vertical blades)
p Flaps (horizontal blades)
Note: Position of titanium apatite deodorizing filter and silver
particle filter is interchangeable.
ON/OFF button
If the user interface is missing, you can use the ON/OFF button on
the indoor unit to start/stop operation. When operation is started
using this button, the following settings are used:
▪ Operation mode = Automatic
▪ Temperature setting = 25°C
▪ Airflow rate = Automatic
CTXA15+FTXA25~50(A)(B)2V1B(W)(S)(T)(B)
Daikin room air conditioner
3P485919-7P – 2019.10
c d
e
f
g
h
i
m n
j k l
2.2

About the user interface

▪ Direct sunlight. Do NOT expose the user interface to direct
sunlight.
▪ Dust. Dust on the signal transmitter or receiver will reduce
sensitivity. Wipe off dust with a soft cloth.
▪ Fluorescent lights. Signal communication might be disabled if
fluorescent lamps are in the room. In that case, contact your
installer.
▪ Other appliances. If the user interface signals operate other
appliances, move the other appliances, or contact your installer.
▪ Curtains. Make sure that the signal between the unit and the user
interface is NOT blocked by curtains or other objects.
NOTICE
▪ Do NOT drop the user interface.
▪ Do NOT let the user interface get wet.
2.2.1

Components: User interface

p
o
Menu (push 2sec)
n
m
l
k
j
a Signal transmitter
b LCD display
c Temperature adjustment button
d ON/OFF button
e Vertical swing button and menu (push 2 seconds)
f Horizontal swing button
g Comfort airflow and Intelligent eye operation button
h Select button
i Clock button and open panel (push 2 seconds)
j Buttons for ON/OFF timer operation
k Buttons for Weekly timer operation
l Streamer
m Econo and Outdoor unit quiet operation button
n Mode button
o Powerful button
p Fan button
INFORMATION
Use (hold for 2 seconds) to open the front panel when
you clean the air filters. See
panel" [ 4 14].
2 About the system
a
b
c
d
e
f
g
h
i
Panel (push 2sec)
"6.4 To open the front
Operation manual
3
