OAI Overview

The OAI Gateway (MOG 500) allows the Link 150 M3 MCU to interface with an
application server as shown in the diagram below. This enables third-party
applications to communicate directly with the Link 150 M3 MCU, allowing users to
retrieve and respond to information using Link Wireless Telephones, or handsets. A
single OAI Gateway is connected to a Link 150 M3 MCU using an inter-processor
communication (IPC) cable (8-conductor cable with RJ-45 connectors)..
3.1

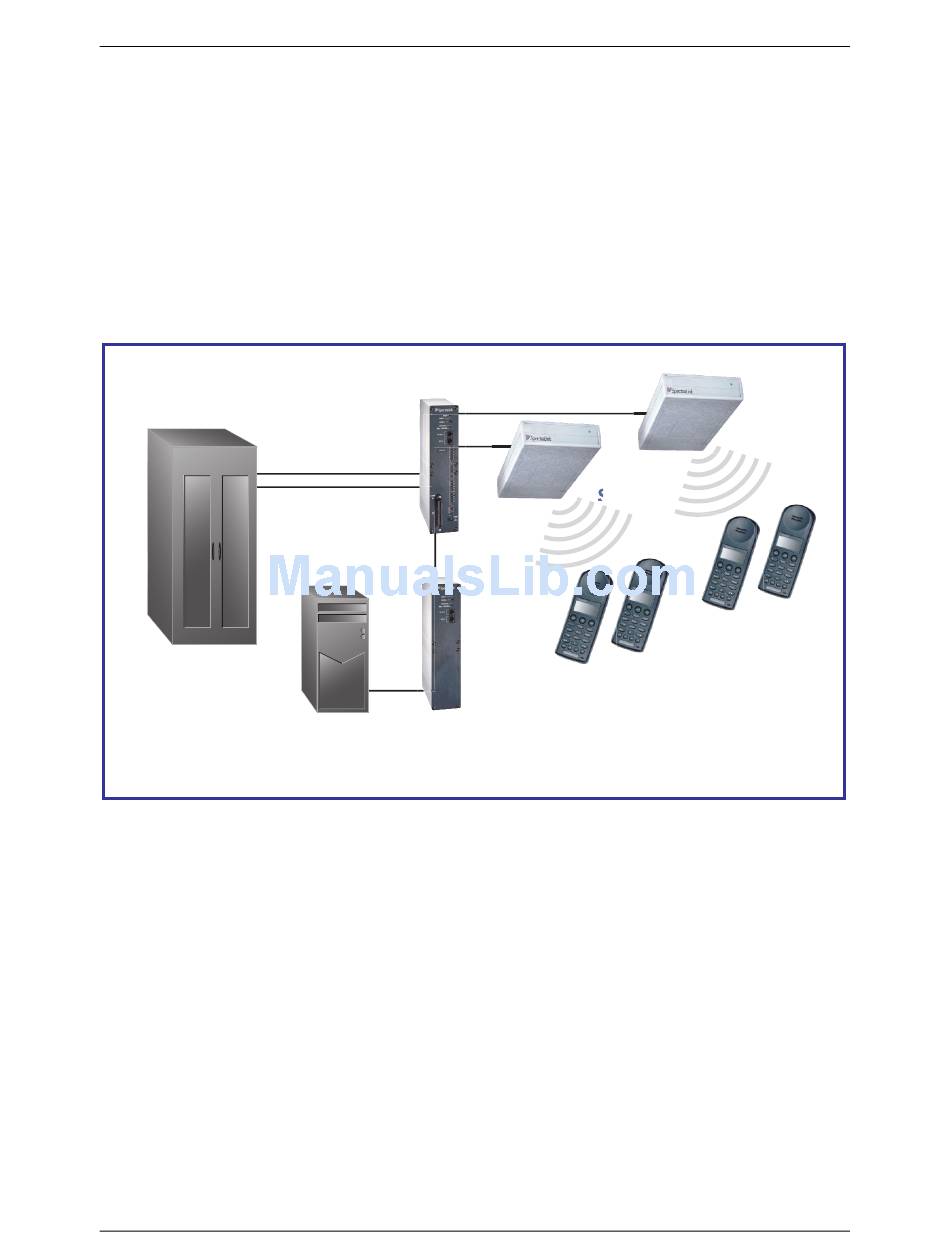

System Diagram

PBX
Application
PN: 72-0075-07-D.doc
Analog or
Digital
Interface
Master
Control
OAI
Gateway
Server
Open Application Interface Gateway Installation and Setup
Base
Stations
Unit
Telephones
Link WTS – Link 150 M3 MCU
Link
Wireless
Page 7
