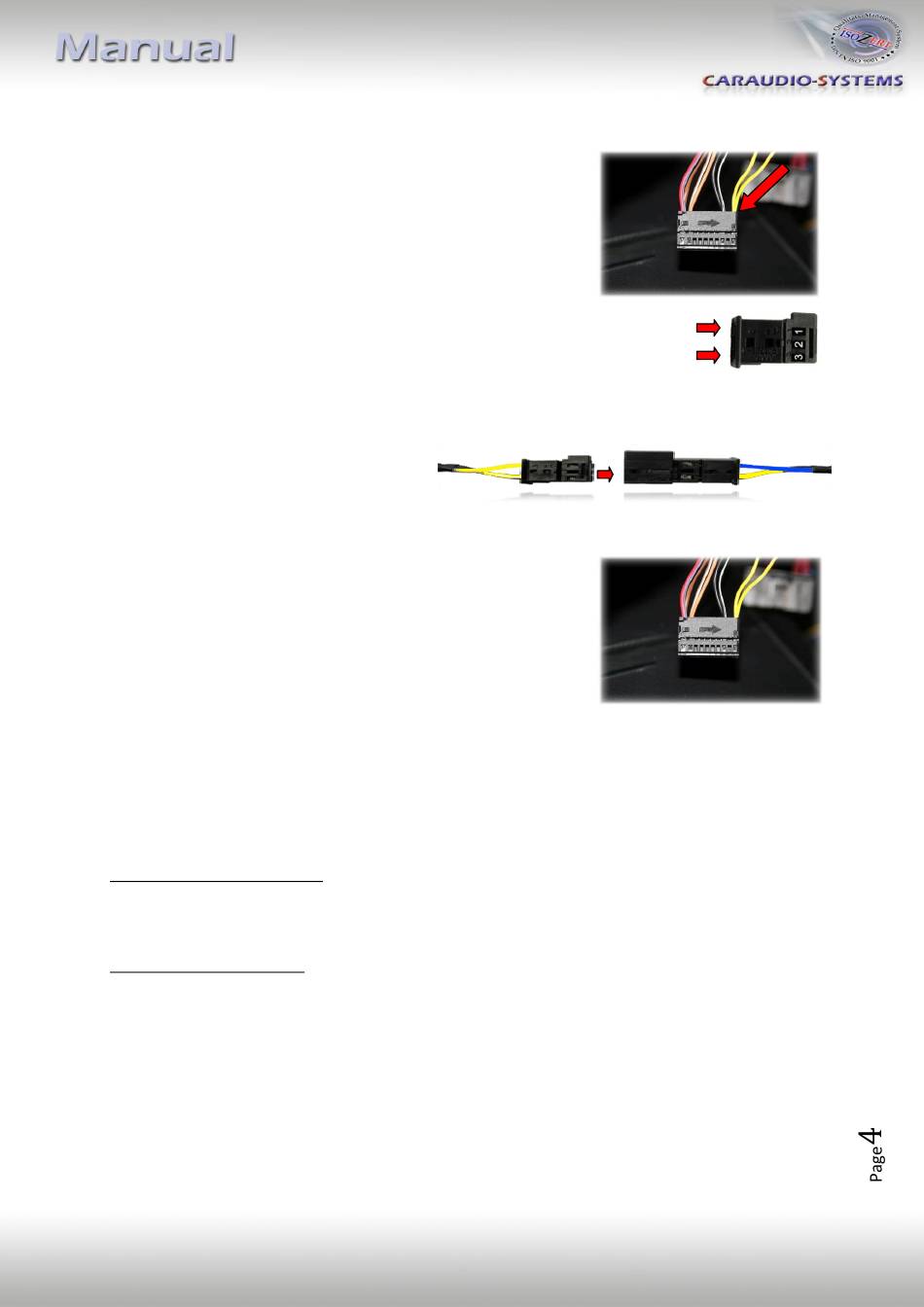

Loosen Pin 1 (yellow / white cable, CAN HIGH) and
Pin 11 (yellow cable, CAN LOW) from the
20-pin socket and, as shown in the right-hand-side
illustration, pin it in the included 3-pin
socket.
Connect the 3-pin socket with the counterpart on the
cable set.
Pin the yellow / black cable from the cable set
TV-NTG3 into Pin1 chamber and blue /black
cable into the Pin11 chamber of the 20-pin socket.
Connect the black cable from the cable set
TV-NTG3 to Pin20 (earth), connect the red
cable parallel to Pin10 (+12V) of the 20-pin socket.

3. Activation of the video-in-motion function

The video-in-motion can be activated and deactivated by Dip 1 or alternatively by the
included loose green cable in connection with a switch (not included in delivery).
Video-in-motion permanent
With dip1 to ON the video-in-motion function is activated permanently without disturbing
the navigation performance.
Video-in-motion selective
With dip1 to OFF the included green cable is used to activate the video-in-motion function.
Connect a switch to the green cable and connect the green cable to +12V ACC.
+12V
= TV-Free is activated
0V
= TV-Free is not activated
Note: The loose white cable is not required and must be isolated.
Version 18.07.2013
CAN LOW (yellow) Pin 1
111 111111111111
CAN HIGH (yellow / white) Pin 3
1111111111
TF-NTG3
