To Display a Stored Group
Display From Ref1-Ref4
TLS 216 User Manual
2. Press Overwrite Lock in the side menu to toggle it to OFF. (If Overwrite
Lock does not appear in the side menu, press –More–.)
3. Press Save Group (main)
existing file.
4. Press Save To Selected File (side) to complete the operation.
See Managing the File System on page 3–61 for more information on file system
operation.
To display a waveform group stored in an internal reference memory, press
MORE Reference Group (main)
Figure 3-54.

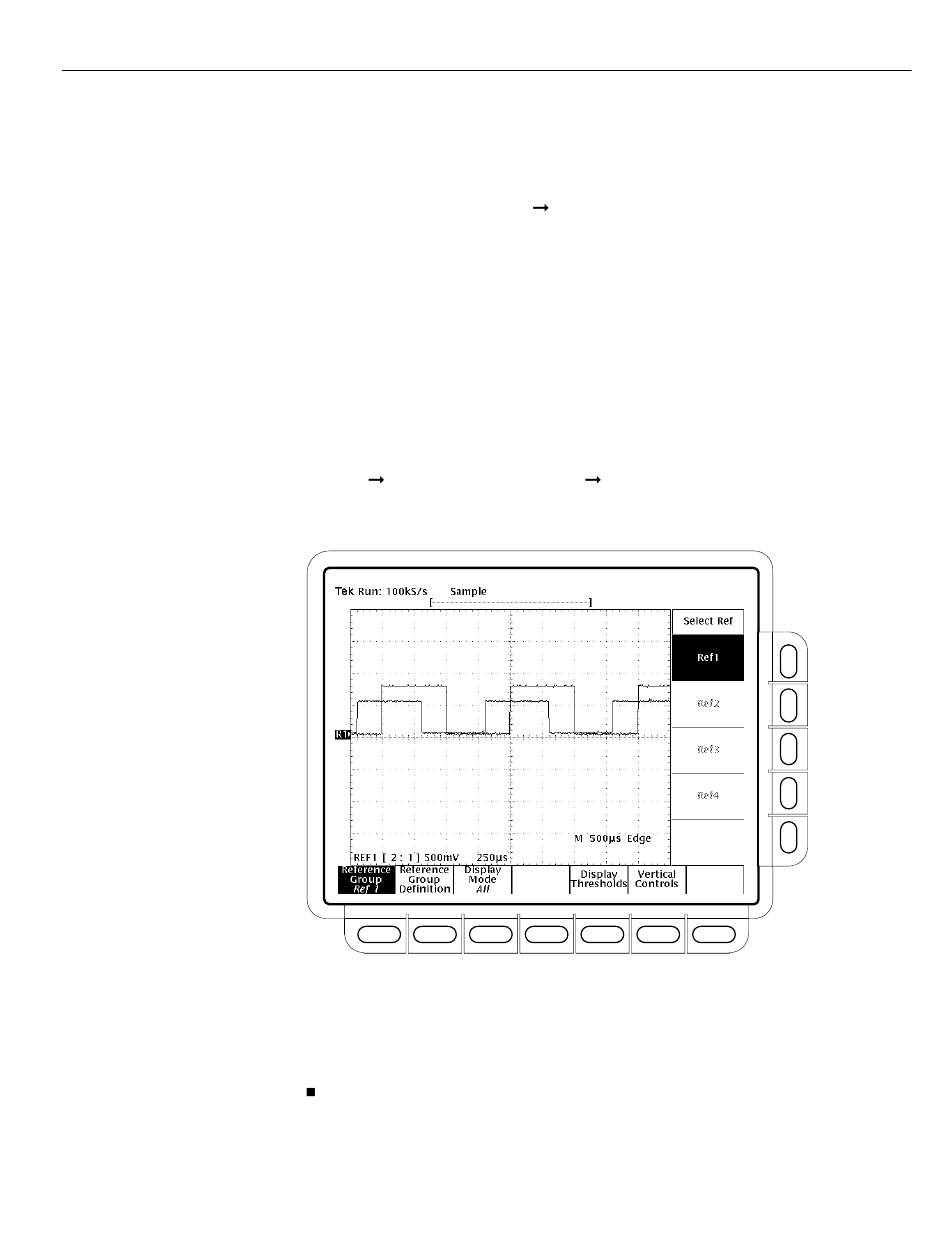

Figure 3-54: More Menu for Displaying Reference Groups
Note the following operating characteristics of a Reference waveform group:
You can display any reference that is not empty. Names of empty references
appear dimmed in the Select Ref menu. In Figure 3-54, the memory
locations Ref2, Ref3, and Ref4 are empty. Ref1 is not empty.
Saving and Recalling Waveforms
To File (side) and select the name of an
Ref1, Ref2, Ref3, or Ref4 (side). See
3–113
