Summary of Contents for MSA Facepiece G1 AirElite

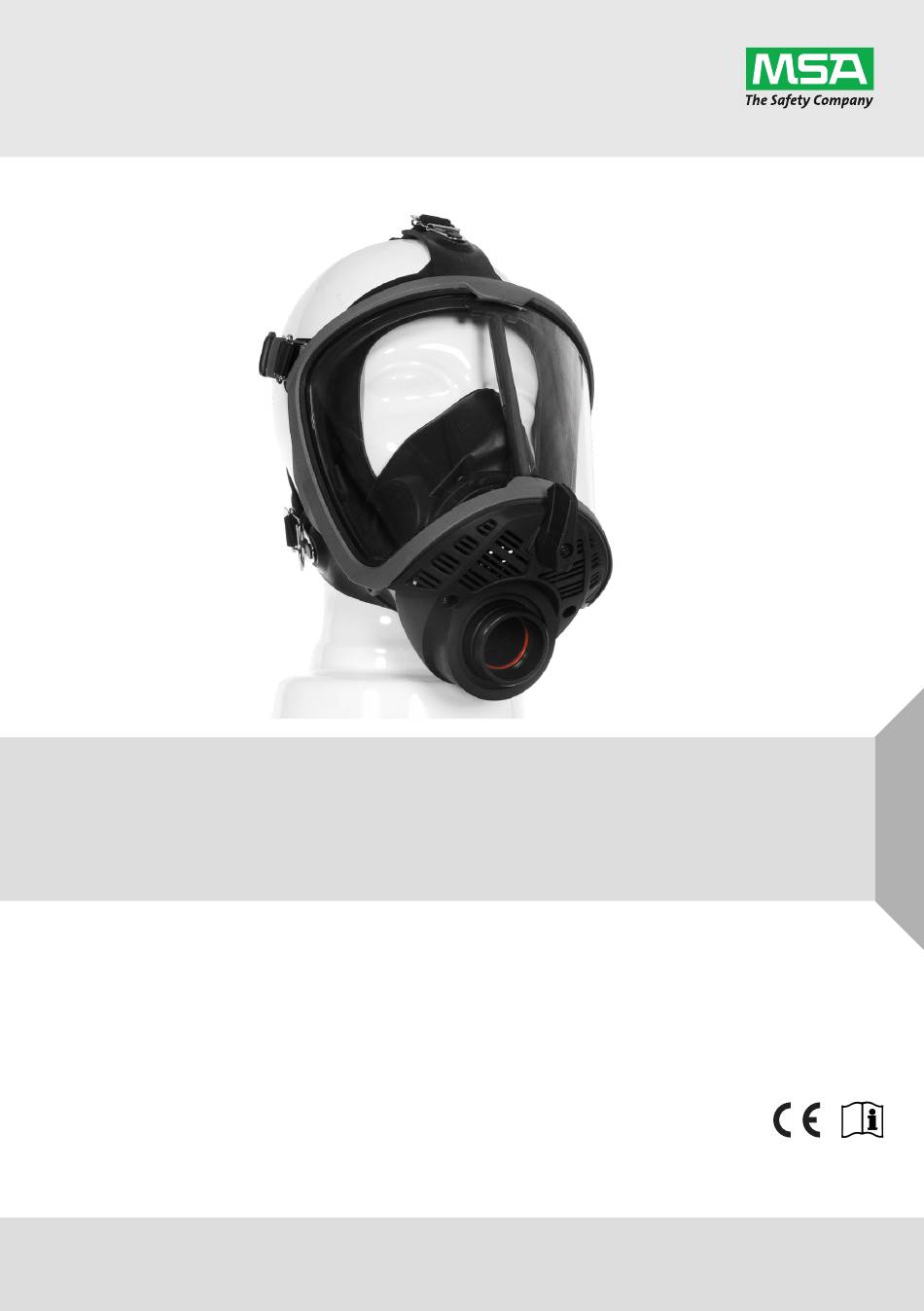

- Page 1 Operating Manual Facepiece G1 AirElite Order No.: 10186449/00 MSAsafety.com...
- Page 2 MSA Europe GmbH Schlüsselstrasse 12 8645 Rapperswil-Jona Switzerland info.ch@MSAsafety.com www.MSAsafety.com © MSA 2017 All rights reserved...
-
Page 3: Table Of Contents
ATO Code ..........19 Facepiece G1 AirElite... -
Page 4: Safety Regulations
Safety Regulations Correct Use The full face mask Facepiece G1 AirElite - hereafter called mask - is not a complete respiratory protec- tive device by itself, but serves as facepiece [EN 136 CL3] for use with MSA’s closed-circuit respiratory protective device AirElite. -
Page 5: Description
The mask and the nose cup are available in 3 sizes (small, medium, large). The mask is available with different head harnesses. Fig. 1 Overview Facepiece G1 AirElite (not true to size) Face blank Component housing Lens ring... -
Page 6: Harness Versions
Description Harness Versions The mask is available with different head harnesses; Kevlar (4-point) or rubber (5-point). The rubber head straps are numbered to indicate the correct tightening sequence. Fig. 2 Kevlar harness Fig. 3 Rubber harness Facepiece G1 AirElite... -
Page 7: Marking
LW XXXXXX 0158 EN 136:1998 CL3 Fig. 4 Marking of mask body Mask type Part number/ATO code Marking (month, year, serial number) For applicable ATEX classification, see operating manual. CE-marking with notified body number EN standard, class Facepiece G1 AirElite... -
Page 8: Certification
DEKRA EXAM GmbH, Dinnendahlstr. 9, 44809 DEKRA Bochum,Germany, Notified Body number: 0158 Atex Categories The lowest ATEX class of a part sets the limit for the complete device. Facepiece G1 AirElite Rubber I M1 Harness II 1G IIC Kevlar (Textile) -
Page 9: Use
The mask could otherwise leak. This danger also exists for instance for mask wearers with beards or deep scars in the sealing area. WARNING! In order to guarantee a proper fit for those wearing glasses, the Facepiece G1 AirElite spectacle kit must be worn since ordinary glasses cannot be worn under the mask. -
Page 10: Donning
Ensure that the harness is sitting correctly and is not twisted. Tighten the straps in order as shown firmly and evenly. When tightening the head straps, ensure that the correct sequence is followed (Pos. 1 - 3). Facepiece G1 AirElite... -
Page 11: Leak Check
If the leak check still fails, the mask must not be used. Removing the Mask Loosen the head harness by pulling the buckles forward using your fingers. Grip the mask by the cover and pull off backward over your head. Facepiece G1 AirElite... -
Page 12: Cleaning, Disinfection
Clean mask using lukewarm water and mild cleaning detergent (pH neutral soap solution) and thoroughly rinse with clear, lukewarm running water. Disinfect mask if necessary. Dry mask. Perform a tightness test ( chapter 5.6). Facepiece G1 AirElite... -
Page 13: Maintenance
Always use original parts from MSA. Repairs and maintenance must be carried out only by authorized service centres or by MSA. Changes to devices or components are not permitted and will result in loss of approval. -
Page 14: Replacing The Lens Wiper
(10) Perform a tightness test ( chapter 5.6). Replacing the Lens WARNING! The replacement of the lens is solely to be carried out by authorised workshops or by MSA customer service. Replacing the Speech Diaphragm Unbutton the nose cup. Unscrew the threaded socket from the mask inside with the special tool. -
Page 15: Visual Test And Function Test
For the safekeeping of the mask, use the mask container. In order to avoid deformation of the lens wiper during storage, place lens wiper into the centre position. MSA rubber products are protected by an anti-aging agent that can become visible as a light coating. This coating is harmless and can be removed during cleaning. -
Page 16: Ordering Information
Ordering Information Ordering Information Exploded View Fig. 5 Facepiece G1 AirElite exploded view Facepiece G1 AirElite... - Page 17 Lower lens ring Wiper shaft with O-ring Face blank Lens wiper with U-clip Button for head harness Lens Nose cup with blind plugs Textile neck strap Screw ring for speaking diaphragm Rubber neck strap O-ring for speaking diaphragm Facepiece G1 AirElite...
-
Page 18: Spare Parts And Accessories
RFID transponder rd 16 mm 13.56 MHz (10x) 10149728 O-ring 47, 29 x 2.62, Si, A70 Shore, green 10144232-SP Screw ring, G1 full mask 10144213-SP AE 4h adapter mask leak tester 10074842 AirElite mask seal plug, SC.com 10118702 Clear-Pilot 10032164 Facepiece G1 AirElite... -
Page 19: Ato Code
To order a mask according to EN136 PC with a medium sized face blank, a medium nose cup, rubber head harness, rubber neck strap and AirElite 4h connector piece, the ATO code would be C-M-M-M-E-R-C: The following table shows all possible configurations that can be ordered for the Facepiece G1 AirElite Face blank D- Nose... - Page 20 For local MSA contacts, please visit us at MSAsafety.com Because every life has a purpose...
