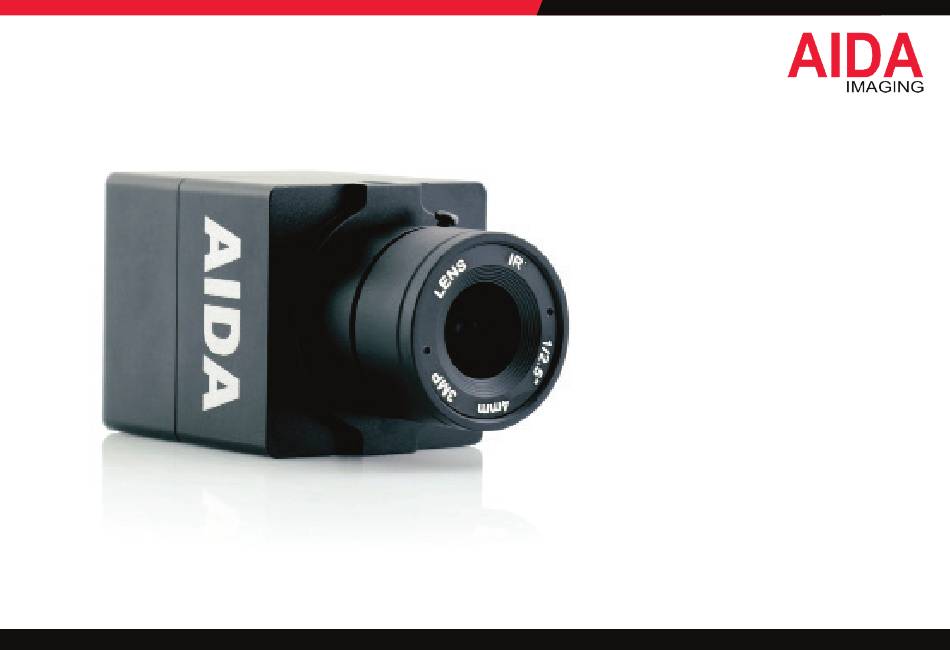

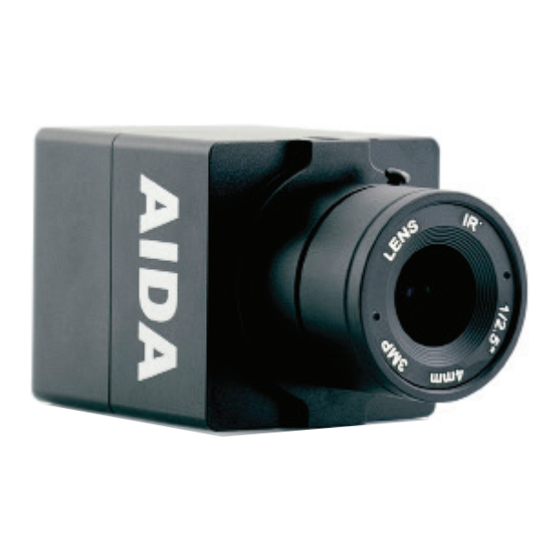

- Page 1 FULL HD HDMI Camera HD-100A O PE R AT I O N G U I D E Version 1.0 / April 2020 Reproduction of this manual, in whole or in part, by any means, is prohibited.
- Page 2 CAUTION: RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING PRECAUTION This symbol indicates that dangerous This exclamation point symbol is intended to alert the user to the presence of important operating and voltage consisting a risk of electric shock...
- Page 3 Warning continues 5. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock 6. If any unusual smells or smoke come from the unit, stop using the product. Immediately disconnect the power source and contact the service center.
- Page 4 HD-100A...
- Page 5 FEATURES • 4K UHD 1/3” Progressive Scan CMOS sensor capable of 4K (4096 x 2160) captures sharp and vivid images even under very low light conditions. • Powered by a back-illuminated pixel technology. • Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
-
Page 6: White Balance
WB CONTROL AWB - Auto white balance mode will adjust white balance within WHITE BALANCE 3,000˜K ~ 8,000˜K temperature. *MODE ATW - Auto trace white mode will adjust white balance within PUSH 1,900˜K ~ 11,000˜K temperature. BLUE ONE PUSH - One push mode is used if AWB or ATW cannot produce the proper RETURN white balance. - Page 7 AE CONTROL SHUT FIX AE CONTROL SHUT FIX mode provides more detailed shutter speed option. *AE MODE SHUTTER All other controls are tuned for the selected shutter speed. SHUTTER 1/30 IRIS • SHUTTER : AUTO, 1/30 ~ 1/10,000 ( Shutter speed can be set ) •...
-
Page 8: Day & Night
AE CONTROL • IRIS SPEED : 0 ~ 5 AE CONTROL Electronic Iris speed can be controlled. ( DC Iris lens only ) *AE MODE AUTO • LENS MODE : INDOOR, OUTDOOR, MANUAL SHUTTER Lens setting will be optimized for the selected environment. ( DC Iris lens only ) IRIS •... - Page 9 AUDIO MODE : OFF, LINE, MIC AUDIO Select the proper audio mode from this menu. *MODE LINE AUDIO LEVEL 0 dB AUDIO LEVEL : -12dB ~ 48dB MIC ATTENUATOR Audio level can be manually adjusted from this menu. AGC LIMIT SAMPLE BITS 24BITS MIC ATTENUATOR : ON, OFF...
-
Page 10: Image Control
IMAGE CONTROL Camera image control can be adjusted from EFFECT menu. IMAGE CONTROL • LENS SHADING : ON, OFF *LENS SHADING SHUTTER CONTRAST Optical vignetting issue can be corrected from this menu. BRIGHTNESS • BLACK LEVEL : -64 ~ 64 ( Gamma level can be adjusted ) SATURATION •... - Page 11 SPECIAL Camera special functions can be adjusted from SPECIAL menu. SPECIAL *DZOOM D ZOOM : ON, OFF DEFOG Digital Zoom and PIP function can be enabled from this menu. BACKLIGHT • ZOOM CONTROL : RATIO, POSITION, RETURN BINNING DEFECT PIXEL Adjust the digital zoom ratio and position.
- Page 12 SPECIAL DEFOG : ON, OFF, AUTO DEFOG SETUP “DEFOG” menu improves foggy image. • STRENGTH : 0 ~ 16 *STRENGTH THRESHOLD Change defog strength. AUTO LEVEL • THRESHOLD : 0 ~ 3 RETURN Threshold value sets minimum sensitivity value for automatic defog control. Higher value makes defog-on control reluctant.
- Page 13 SPECIAL HLM : OFF, ON BACKLIGHT - HLM HLM can be adjusted. AREA *AREA DISPLAY • AREA DISPLAY : ON, OFF SIZE/POSITION HLM AREA DISPLAY can be turned ON or OFF. LEVEL BLACK MASK • SIZE/POSITION : SIZE, POSITION, RETURN DEFAULT •...
- Page 14 SPECIAL DISPLAY FUNCTION : OFF, ON DISPLAY FUNCITON Adjust image display features from this menu. *FREEZE MIRROR IMAGE EFFECT • FREEZE : OFF, ON ROTATION Image freeze can be turned ON or OFF. PICTURE STYLE PIC CONTRAST • MIRROR : OFF, MIRROR, V-FLIP, BOTH(H/V) PIC SATURATION Image mirror or flip can be operated.
-
Page 15: Privacy Mask
PRIVACY Privacy zone can be setup from this menu. PRIVACY MASK MODE : ON, OFF *MODE TYPE SQUARE Enable “PRIVACY ZONE” ON or OFF. MASK NO. MASK 1 TYPE : SQUARE, POLYGON DISPLAY COLOR BLACK Select privacy zone shape. POLY PIXEL POSITION-X MASK NO : MASK1 ~ MASK8 POSITION-Y... - Page 16 SETUP Camera setup can be adjusted from this menu. SETUP CAM TITLE : OFF, ON *CAM TITLE COMMNUCATION Camera title can be turned ON or OFF. SYSTEM INFO COMMUNICATION : ON, OFF, AUTO ( VISCA communication control can be adjusted ) OUTPUT FORMAT 1080P30 RETURN...
-
Page 17: Specification
SPECIFICATION VIDEO LENS Image Sensor 1/3 inch Progressive CMOS Lens C/CS Mount (Default 4mm HD Lens) Sensor Size Diagonal 7.2mm AUDIO INPUT Effective Pixels Horizontal: 1920, Vertical: 1080 Pixel Size 2.75 µm x 2.75 µm Input 3.5mm TRS Stereo Resolution 1080p &... - Page 18 QUESTIONS Visit us: www.aidaimaging.com/support E-mail us: support@aidaimaging.com Give us a Call: Toll Free: 844.631.8367 Tel: 909.333.7421 Operating Hours: Mon-Fri 8:00am – 5:00pm PST...
- Page 19 Disposal of Old Appliances 1. When this crossed-out wheel bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately form the municipal waste stream in accordance to laws designated by the government or the local authorities. 3.
