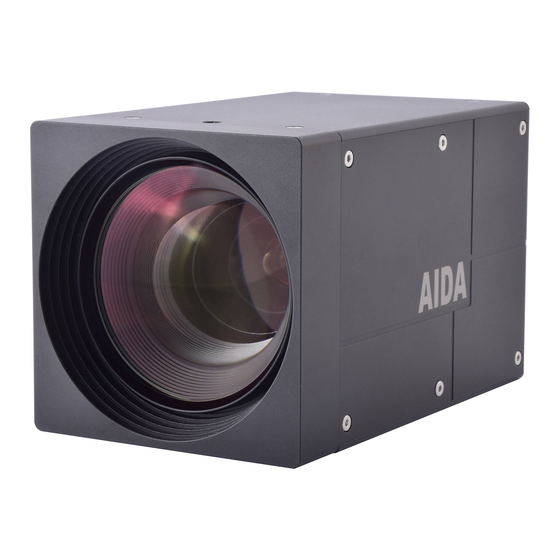

- Page 1 4K/UHD 6G-SDI POV Camera UHD6G-X12L OPER ATI ON GU I DE Version 1.0 / June 2020 Reproduction of this manual, in whole or in part, by any means, is prohibited.
- Page 2 CAUTION: RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING PRECAUTION This symbol indicates that dangerous This exclamation point symbol is intended to alert the user to the presence of important operating and voltage consisting a risk of electric shock...
- Page 3 Warning continues Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock If any unusual smells or smoke come from the unit, stop using the product. Immediately disconnect the power source and contact the service center.
- Page 4 UHD6G-X12L...
- Page 5 FEATURES • 4K UHD 1/1.7 Progressive Scan CMOS sensor capable of 4K (4092 x 2160) captures sharp and vivid images even under very low light conditions. • Powered by a back-illuminated pixel technology. • Superior 4K 12X optical zoom. • Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
-
Page 6: Focus Control
FOCUS CONTROL AUTO FOCUS CONTROL Auto mode will adjust the exposure level automatically. MANUAL FOCUS MODE AUTO Focus control is done manually. PUSH • PUSH : Press SEL key to focus automatically from the current view. ZOOM SPEED FOCUS LIMIT 50CM ZOOM SPEED *AF AREA/SIZE... - Page 7 AE CONTROL AUTO EXPOSURE *AE MODE AUTO Auto mode will adjust the exposure level automatically. SHUTTER Detailed fine tuning options are available under this menu. IRIS • AGC MAX : OFF, LOW, MIDDLE, HIGH, DMIN, DMID, DMAX AGC MAX HIGH “AGC MAX”...
- Page 8 AE CONTROL AGC FIX EXPOSURE AGC FIX mode provides more detailed gain option. *AE MODE AGC FIX SHUTTER All other controls are tuned for the selected gain value. IRIS • AGC : AUTO, 0dB ~ 27dB, d2X ~ d9X AUTO AGC MAX HIGH Gain level can be set.
-
Page 9: Day & Night
DAY & NIGHT Adjust color or B&W setting from this menu. DAY & NIGHT • MODE : DAY(COLOR), NIGHT(B&W) *MODE DAY (COLOR) NIGHT COLOR Set camera to either color mode or B&W mode. COLOR BURST • NIGHT COLOR : ON, OFF RETURN When “NIGHT COLOR”... -
Page 10: Image Control
IMAGE CONTROL Camera image control can be adjusted from EFFECT menu. IMAGE CONTROL • LENS SHADING : ON, OFF *LENS SHADING SHUTTER CONTRAST Optical vignetting issue can be corrected from this menu. BRIGHTNESS • BLACK LEVEL : -64 ~ 64 ( Gamma level can be adjusted ) SATURATION •... - Page 11 SPECIAL Camera special functions can be adjusted from SPECIAL menu. SPECIAL D ZOOM : ON, OFF ( Digital Zoom and PIP function can be enabled from this menu ) *DZOOM DEFOG • ZOOM CONTROL : RATIO, POSITION, RETURN D-ZOOM Adjust the digital zoom ratio and position. BACKLIGHT *ZOOM CONTROL X 1.0...
- Page 12 SPECIAL BACK-LIGHT : OFF, BLC, HLM BACKLIGHT - BLC Camera back-light compensation can be adjusted. *BLC BLC : OFF, ON SIZE/POSITION BLC enables back light compensation. LEVEL DISPLAY • SIZE/POSITION : SIZE, POSITION, RETURN DEFAULT RETURN Adjust BLC area window size. •...
- Page 13 SPECIAL BINNING : OFF, ON DEFECT PIXEL Binning can be turned ON or OFF. *STATIC PROGRESS PRESS OK DEFECT PIXEL : OFF, ON, ON (FIXED), STATIC SDPC UPDATE PRESS OK Defective Pixel Correction feature can be operated. It is turned ON by default and SDPC CLEAR PRESS OK RETURN...
- Page 14 PRIVACY Privacy zone can be setup from this menu. PRIVACY MASK MODE : ON, OFF *MODE TYPE SQUARE Enable “PRIVACY ZONE” ON or OFF. MASK NO. MASK 1 TYPE : SQUARE, POLYGON DISPLAY COLOR BLACK Select privacy zone shape. POLY PIXEL MASK NO : MASK1 ~ MASK8 POSITION-X POSITION-Y...
- Page 15 SETUP Camera setup can be adjusted from this menu. SETUP CAM TITLE : OFF, ON *CAM TITLE RS485 Camera title can be turned ON or OFF. MENU COLOR COMMUNICATION : ON, OFF, AUTO FACTORY RESET SYSTEM INFO VISCA communication control can be adjusted. OUTPUT FORMAT 1080P60 •...
- Page 16 RESET MODE : FACTORY, USER RESET Camera will reset to factory default or user saved value. *MODE FACTORY RESET : RESET SYSTEM INFO Reset the camera to the selected mode. SAVE AS USER RETURN SAVE AS USER : Save the user desired setting from the menu. Mode must be set to User.
-
Page 17: Specification
SPECIFICATION VIDEO LENS Image Sensor Lens 1/1.7” inch Progressive CMOS 12X UHD Optical Zoom Lens, Sensor Size Diagonal 9.93 mm (17:9) 4.2mm/82° (Wide) ~ 50.04mm/8° (Tele), Effective Pixels Horizontal: 4096, Vertical: 2160 F1.8 (Wide) - F2.8 (Tele) Pixel Size 1.85 µm x 1.85 µm AUDIO INPUT Resolution 4096 x 2160, 3840 x 2160, 1920 x 1080, 1280 x 720... - Page 18 QUESTIONS Visit us: www.aidaimaging.com/support E-mail us: support@aidaimaging.com Give us a Call: Toll Free: 844.631.8367 Tel: 909.333.7421 Operating Hours: Mon-Fri 8:00am – 5:00pm PST...
- Page 19 Disposal of Old Appliances 1. When this crossed-out wheel bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately form the municipal waste stream in accordance to laws designated by the government or the local authorities. 3.
