AIDA HD-100A Operation Manual

Full hd hdmi camera
Hide thumbs Also See for HD-100A:

Advertisement

FULL HD HDMI Camera
OPER ATI ON GU I DE
Version 1.0 / April 2020
Reproduction of this manual, in whole or in part, by any means, is prohibited.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD-100A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AIDA HD-100A

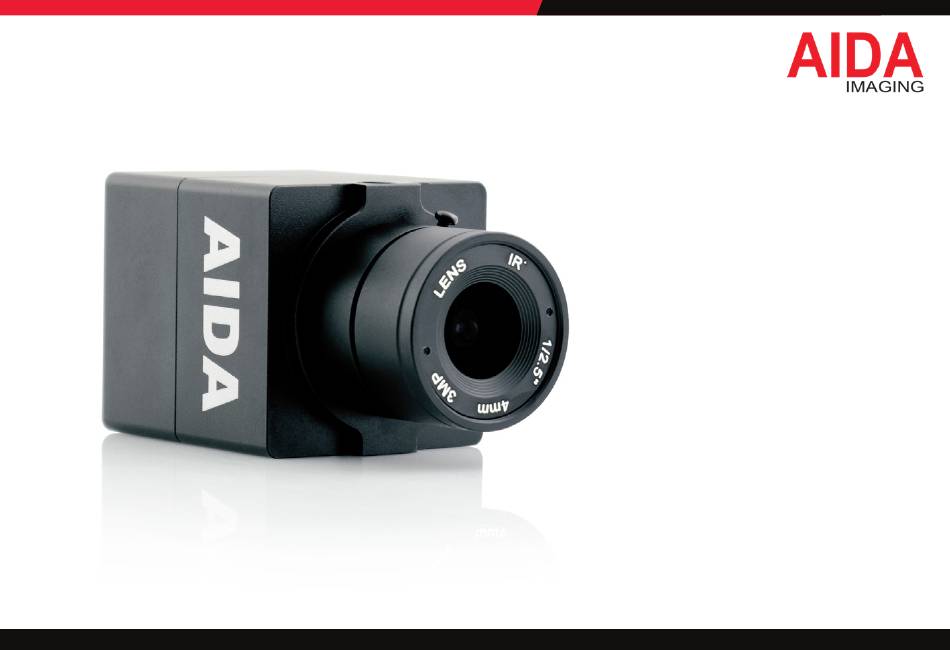

  • Page 1 FULL HD HDMI Camera HD-100A OPER ATI ON GU I DE Version 1.0 / April 2020 Reproduction of this manual, in whole or in part, by any means, is prohibited.
  • Page 2 CAUTION: RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING PRECAUTION This symbol indicates that dangerous This exclamation point symbol is intended to alert the user to the presence of important operating and voltage consisting a risk of electric shock...
  • Page 3 Warning continues Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock If any unusual smells or smoke come from the unit, stop using the product. Immediately disconnect the power source and contact the service center.
  • Page 4 HD-100A...
  • Page 5 FEATURES • 4K UHD 1/3” Progressive Scan CMOS sensor capable of 4K (4096 x 2160) captures sharp and vivid images even under very low light conditions. • Powered by a back-illuminated pixel technology. • Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
  • Page 6 WB CONTROL AWB - Auto white balance mode will adjust white balance within WHITE BALANCE 3,000˜K ~ 8,000˜K temperature. ATW - Auto trace white mode will adjust white balance within *MODE PUSH 1,900˜K ~ 11,000˜K temperature. BLUE ONE PUSH - One push mode is used if AWB or ATW cannot produce the proper RETURN white balance.
  • Page 7 AE CONTROL SHUT FIX AE CONTROL SHUT FIX mode provides more detailed shutter speed option. *AE MODE SHUTTER All other controls are tuned for the selected shutter speed. SHUTTER 1/30 IRIS • SHUTTER : AUTO, 1/30 ~ 1/10,000 ( Shutter speed can be set ) •...
  • Page 8 AE CONTROL • IRIS SPEED : 0 ~ 5 AE CONTROL Electronic Iris speed can be controlled. ( DC Iris lens only ) *AE MODE AUTO • LENS MODE : INDOOR, OUTDOOR, MANUAL SHUTTER Lens setting will be optimized for the selected environment. ( DC Iris lens only ) IRIS •...
  • Page 9 IMAGE CONTROL Camera image control can be adjusted from EFFECT menu. IMAGE CONTROL • LENS SHADING : ON, OFF *LENS SHADING SHUTTER CONTRAST Optical vignetting issue can be corrected from this menu. BRIGHTNESS • BLACK LEVEL : -64 ~ 64 ( Gamma level can be adjusted ) SATURATION •...
  • Page 10 SPECIAL Camera special functions can be adjusted from SPECIAL menu. SPECIAL D ZOOM : ON, OFF *DZOOM DEFOG Digital Zoom and PIP function can be enabled from this menu. BACKLIGHT • ZOOM CONTROL : RATIO, POSITION, RETURN BINNING DEFECT PIXEL Adjust the digital zoom ratio and position.
  • Page 11 SPECIAL DEFOG : ON, OFF, AUTO “DEFOG” menu improves foggy image. DEFOG SETUP • STRENGTH : 0 ~ 16 *STRENGTH THRESHOLD Change defog strength. AUTO LEVEL • THRESHOLD : 0 ~ 3 RETURN Threshold value sets minimum sensitivity value for automatic defog control. Higher value makes defog-on control reluctant.
  • Page 12 SPECIAL HLM : OFF, ON BACKLIGHT - HLM HLM can be adjusted. AREA *AREA DISPLAY • AREA DISPLAY : ON, OFF SIZE/POSITION HLM AREA DISPLAY can be turned ON or OFF. LEVEL • SIZE/POSITION : SIZE, POSITION, RETURN BLACK MASK DEFAULT •...
  • Page 13 SPECIAL DISPLAY FUNCTION : OFF, ON DISPLAY FUNCITON Adjust image display features from this menu. *FREEZE MIRROR • FREEZE : OFF, ON IMAGE EFFECT ROTATION Image freeze can be turned ON or OFF. PICTURE STYLE PIC CONTRAST • MIRROR : OFF, MIRROR, V-FLIP, BOTH(H/V) PIC SATURATION Image mirror or flip can be operated.
  • Page 14 PRIVACY Privacy zone can be setup from this menu. PRIVACY MASK MODE : ON, OFF *MODE TYPE SQUARE Enable “PRIVACY ZONE” ON or OFF. MASK NO. MASK 1 TYPE : SQUARE, POLYGON DISPLAY COLOR BLACK Select privacy zone shape. POLY PIXEL MASK NO : MASK1 ~ MASK8 POSITION-X POSITION-Y...
  • Page 15 SETUP Camera setup can be adjusted from this menu. SETUP CAM TITLE : OFF, ON *CAM TITLE COMMNUCATION Camera title can be turned ON or OFF. SYSTEM INFO COMMUNICATION : ON, OFF, AUTO ( VISCA communication control can be adjusted ) OUTPUT FORMAT 1080P30 RETURN...
  • Page 16 SPECIFICATION VIDEO LENS Image Sensor Lens 1/3 inch Progressive CMOS C/CS Mount (Default 4mm HD Lens) Sensor Size Diagonal 7.2mm AUDIO INPUT Effective Pixels Horizontal: 1920, Vertical: 1080 Pixel Size Input 2.75 µm x 2.75 µm 3.5mm TRS Stereo Resolution 1080p &...
  • Page 17 QUESTIONS Visit us: www.aidaimaging.com/support E-mail us: support@aidaimaging.com Give us a Call: Toll Free: 844.631.8367 Tel: 909.333.7421 Operating Hours: Mon-Fri 8:00am – 5:00pm PST...
  • Page 18 Disposal of Old Appliances 1. When this crossed-out wheel bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately form the municipal waste stream in accordance to laws designated by the government or the local authorities. 3.
