- Page 1 FHD Weatherproof POV Camera HD-X3L-IP67 OPERATION GUIDE Version 1.0 / April 2021 Reproduction of this manual, in whole or in part, by any means, is prohibited.
- Page 2 CAUTION: RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING PRECAUTION This symbol indicates that dangerous This exclamation point symbol is intended to alert the user to the presence of important operating and voltage consisting a risk of electric shock...
- Page 3 Warning continues If any unusual smells or smoke come from the unit, stop using the product. Immediately disconnect the power source and contact the service center. Continued use in such a condition may cause fire or electric shock. If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way. When cleaning, do not spray water directly onto parts of the product.

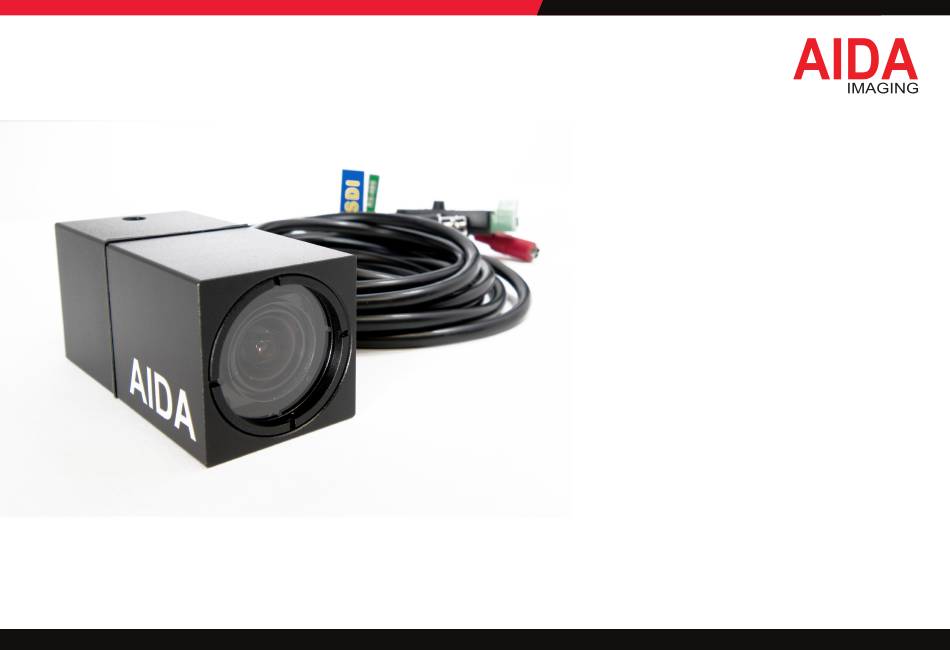

- Page 4 HD-X3L-IP67...
- Page 5 FEATURES • Full-HD 1/3" Progressive Scan CMOS sensor captures sharp and vivid Full-HD video even under low light conditions. • X3 optical zoom features 78˜ ~ 25˜ wide angle of view. • Built-in zoom lens offers zoom, focus and iris control. •...
-
Page 6: Focus Control
FOCUS CONTROL AUTO FOCUS CONTROL Auto mode will have the focus be done automatically. MANUAL FOCUS MODE AUTO PUSH Focus control is done manually and will remain the same. ZOOM SPEED • PUSH : Press SEL key to focus automatically from the current view. FOCUS LIMIT 50CM *AF AREA/SIZE... -
Page 7: White Balance
WB CONTROL AWB - Auto white balance mode will adjust white balance within WHITE BALANCE 3,000˜K ~ 8,000˜K temperature. ATW - Auto trace white mode will adjust white balance within *MODE PUSH 1,900˜K ~ 11,000˜K temperature. BLUE ONE PUSH - One push mode is used if AWB or ATW cannot produce the proper white balance. - Page 8 AE CONTROL SHUT FIX EXPOSURE *AE MODE AUTO SHUT FIX mode provides more detailed shutter speed option. SHUTTER All other controls are tuned for the selected shutter speed. • SHUTTER : AUTO, 1/30 ~ 1/10,000 ( Shutter speed can be set ) AGC MAX SENS UP •...
- Page 9 AE CONTROL AE CONTROL AGC FIX EXPOSURE AGC FIX mode provides more detailed gain options. *AE MODE AUTO All other controls are tuned for the selected gain value. SHUTTER • AGC : 0dB ~ 27dB, AGC MAX Gain level can be set. ( lower values=less adjusted lighting in image) SENS UP AE BRIGHT •...
-
Page 10: Image Control
IMAGE CONTROL Camera image control can be adjusted from EFFECT menu. IMAGE CONTROL • LENS SHADING: ON, OFF *LENS SHADING CONTRAST Optical vignetting issue can be correct from this menu. BRIGHTNESS • CONTRAST : 0 ~ 20 ( Contrast level can be adjusted ) SATURATION •... - Page 11 SPECIAL Camera special functions can be adjusted from SPECIAL menu. SPECIAL D ZOOM : ON, OFF ( Digital Zoom can be enabled from this menu ) *DZOOM ZOOM MAG • DZOOM LIMIT: 1x ~ 12x ( Allows ability to digitally zoom this far) DEFOG To use this function, keep zooming in after standard 3x optical zoom, you will then slowly BACKLIGHT...
- Page 12 SPECIAL DEFOG : ON, OFF, AUTO ( “DEFOG” menu improves foggy image) DEFOG SETUP • STRENGTH : 0 ~ 16 *STRENGTH Change defog strength. THRESHOLD • THRESHOLD : 0 ~ 3 AUTO LEVEL RETURN Threshold value sets minimum sensitivity value for automatic defog control. Higher value makes defog-on control reluctant.
- Page 13 SPECIAL HLM : OFF, ON BACKLIGHT - HLM HLM can be adjusted. *AREA DISPLAY • AREA DISPLAY : ON, OFF SIZE/POSITION LEVEL HLM AREA DISPLAY can be turned ON or OFF. BLACK MASK • SIZE/POSITION : SIZE, POSITION, RETURN DEFAULT RETURN Adjust BLC area window size.
- Page 14 SPECIAL DISPLAY FUNCTION : OFF, ON DISPLAY FUNCITON Adjust image display features from this menu. *FREEZE • FREEZE : OFF, ON MIRROR FLIP Image freeze can be turned ON or OFF. IMAGE EFFECT NEGATIVE • MIRROR : OFF, MIRROR, Image mirror can be operated. ROTATION •...
- Page 15 PRIVACY Privacy zone can be setup from this menu. PRIVACY MASK MODE : ON, OFF *MODE MASK NO. MASK 1 Enable “PRIVACY ZONE” ON or OFF. DISPLAY MASK NO : MASK1 ~ MASK8 COLOR BLACK POSITION-X Select privacy zone mask number. POSITION-Y SIZE-X DISPLAY : ON, OFF...
-
Page 16: System Info
SETUP Camera setup can be adjusted from this menu. SETUP CAM TITLE : OFF, ON *CAM TITLE Camera title can be turned ON or OFF. COMMUNICATION SYSTEM INFO COMMUNICATION : ON, OFF, OUTPUT FORMAT 1080P60 RETURN VISCA communication control can be adjusted. •... - Page 17 RESET MODE : FACTORY, USER RESET Camera will reset to factory default or user saved value. *MODE FACTORY RESET : NO, YES RESET SAVE AS USER Reset the camera to the selected mode. RETURN SAVE AS USER : Save the user desired setting from the menu. Mode must be set to User. All settings will be saved, from focus and zoom to image settings.
-
Page 18: Specification
SPECIFICATION VIDEO LENS Image Sensor 1/3” inch Progressive CMOS Lens 3X Optical Zoom Lens, Sensor Size Diagonal 7.20mm 3.85mm/78° (Wide) ~ 13.4mm/25° (Tele)) Effective Pixels Horizontal: 1920, Vertical: 1080 2.75 µm x 2.75 µm STANDARD Pixel Size 1080p: 1920 x 1080 Resolution SMPTE SMPTE 292M, SMPTE 424M... - Page 19 QUESTIONS Visit us: www.aidaimaging.com/support E-mail us: support@aidaimaging.com Give us a Call: Toll Free: 844.631.8367 Tel: 909.333.7421 Operating Hours: Mon-Fri 8:00am – 5:00pm PST...
- Page 20 Disposal of Old Appliances 1. When this crossed-out wheel bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately form the municipal waste stream in accordance to laws designated by the government or the local authorities. 3.
