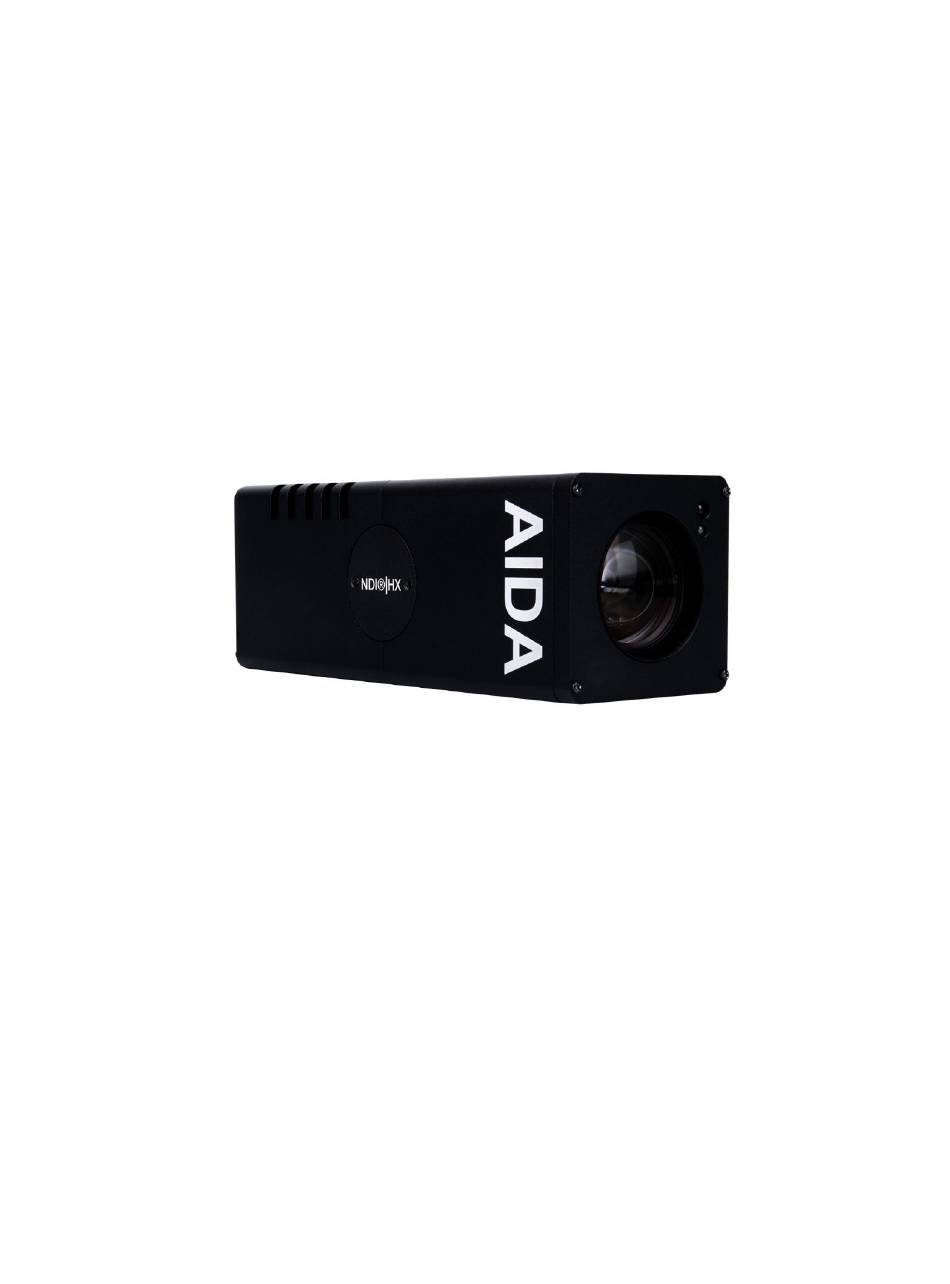

- Page 1 HD-NDI-X20 Full-HD NDI®|HX2 POV Camera Version 1.0 AIDA...
-
Page 2: Table Of Contents
Table of Contents: Safety Guides Packing List and Quick Start Product Highlights and Camera Specs OSD Menu Web Settings VISCA Control VISCA Commands NDI®|HX2 Protocol* Warranty and Support NDI® is a registered trademark of Newtek Inc.* The information within this manual is subject to change at any time without prior notice**... -
Page 3: Safety Guides
Safety Guide: 1. Before operation, please read all the instructions in the manual carefully. For your convenience, please keep this manual. 2. Ensure the power supply input is within the recommended rate before powering on. 3. Camera power voltage = 12VDC, with a rated currency to 2A. 4. - Page 4 Packing List: Check for the items below when opening the package: Quick Start: 1. Ensure that all cable connections are secure before powering on the camera. 2. Test the video either through HDMI or NDI. The camera will be default resolution of 1080 30p.
- Page 5 Product Highlights: • Contains a Sony CMOS ISP (1/2.8” progressive CMOS sensor) providing up to 1920x1080 full HD resolution. • Utilizes the newest NDI®|HX2 for the lowest latency, quality and compression video over a single network. • Autodiscover enabled for fast installation over any network. •...
- Page 6 Camera Specs: Video Interface HDMI (V1.4) | RJ-45 | NDI®|HX2 Sensor 1/2.8” Sony Progressive CMOS Sensor Zoom Module 20X Optical Zoom Module Zoom FOV 61°~ Wide, 3.4° Tele’d Control Port RS485, RJ-45 (VISCA over IP), NDI Network Speed 1000M Video Encode H.264/H.265 Bit-Rate Control Variable Bit Rate, Constant Bit Rate...
- Page 7 Camera Specs: (CONTD.) 1920 x 1080 60p/59.94p/50/30p/29.97p/25p/24p/23.98p 1920x1080 HDMI 60i/59.94i/50i 1280x720 Video Format 60p/59.94p/50p/30p/29.97p/25p 1920x1080 IP / NDI|HX 60p/59.94p/50/30p/29.97p/25p/24p (frames) 1024x720 60p/59.94p/50/30p/29.97p/25p/24p...
-
Page 8: Osd Menu
OSD Menu: (CONTD.) 1. To access the OSD menu, please use the OSD controller on the breakout cable. 2. Enter the menu by pressing the OSD control button once. 3. Navigate through the menu by tilting the joystick up, down, left or right to manipulate the menu. - Page 9 OSD Menu: (CONTD.) Allows for enabling of backlight to Backlight Default: OFF compensate for low light Exposure (contd.) Allows for changing gamma Gamma Default: 0 settings Return Return to the previous menu Auto/Indoor/Outdoor/Onepush/ WB Mode Default: AUTO ATW/Manual/Sodium/Flourescent Adjust red gain under manual R_Gain Default:52 settings...
- Page 10 OSD Menu: (CONTD.) Mirrors the image across the Y Mirror Default: OFF plane Mirrors the image across the X Flip Default: OFF plane CTRL Enables the night shutter mode D/N Mode Default: DAY for low light situations Allows to set limit on amount of Gain Limit Default: 128 light that enters the camera...
- Page 11 OSD Menu: (CONTD.) Default: Cam Reset Reset all Image parameters RESET Factory reset the camera (please RESET Default: All Reset give the camera a moment to RESET reboot) Return Return to the previous menu Use this when referring to FW Ver support Use this to quickly glance over the INFO...
-
Page 12: Web Settings
Web Settings: The camera web interface supports most major browsers such as Chrome, Firefox, IE, Safari, Opera, etc. 1. Login Open your desired browser and in the address bar, please type the camera’s default IP address: 192.168.1.188. (If you are unable to connect, please locate the IP address under the INFO menu, and make sure your device is connected to the same network as it) You will be prompted with the following screen. - Page 13 Web Settings: (CONTD.) 2. Realtime Preview When logging in the first time, you will see the real-time preview: Note that the preview is trailing around 1-2 seconds in real-time. This should only be used as a preview screen to see what the camera is seeing, perfect for determining if changes need to be done. Clicking the settings tab will lead you to the settings menu of the camera as seen below:...
- Page 14 Web Settings: (CONTD.) 3. Camera Parameters Clicking on the settings tab on the top right allows you to enter the network and image settings of the camera. The first tab you will encounter is the video encode. Under video encode, you can change the encode mode, resolution, bitrate, framerate, bitrate control, and I- frame interval.
- Page 15 Web Settings: (CONTD.) The Video Transmission tab is responsible for the direct streaming protocol: RTMP. Under this tab, you can change the RTMP settings for direct streaming to social media platforms, as well as enable or disable NDI®. How to stream directly to any RTMP service (Youtube, Facebook, etc) Streaming directly to these sites are easy with the HD-NDI-200’s built in encoder! Here’s how to stream directly with using your camera to any website that utilizes RTMP for streaming:...
- Page 16 Web Settings: (CONTD.) The Audio Settings tab is responsible for the audio embedment settings. Here you can turn on or off the audio. You are also able to change the encode mode, as well as the sample and bitrate. The Image Parameter tab allows you to access the camera settings.
- Page 17 Web Settings: (CONTD.) The Ethernet tab allows you to change the IP settings of the camera, as well as other settings. We highly recommend not changing anything you don’t know, as it can cause irreversible damage not covered by warranty. The Firmware Upgrade tab allows you to update the firmware of the camera.
- Page 18 Web Settings: (CONTD.) The Reset to Default tab allows you to reset the image parameter, or factory reset the camera. It also allows for you to remotely reboot the camera. The Account tab allows you to change the username and password of the camera IP address.
-
Page 19: Visca Control
VISCA Control: The HD-NDI-X20 is able to be controlled via RS485 VISCA or VISCA over IP. To setup RS485, please locate the RS485 terminal block on the breakout cable. To setup VISCA over IP, please use the RJ45 port and connect it to your software or hardware that helps control camera parameters. - Page 20 VISCA Protocol: For our VISCA protocol, please head to our download page at aidaimaging.com/download to find the full command packet.
-
Page 21: Ndi®|Hx2 Protocol
NDI®|HX2 Protocol: What is NDI®? NDI® is NewTek’s innovative Network Device Interface technology, is a royalty free standard enabling IP video workflows across Ethernet networks. NDI ® |HX2 is a bi-directional standard that allows video systems to identify and communicate with one another over IP, and to encode, transmit, and receive multiple streams of broadcast-quality, low latency, frame-accurate video and audio in real time. - Page 22 NDI®|HX2 Protocol: (CONTD.) So how does the HD-NDI-200 play into all this? Being one of the first Full-HD POV NDI® on the market, we aim to give everyone a chance at fulfilling their streaming or video capturing needs. Using NDI® to setup studios in seconds is easier to do than setting up old BNC cabling, or running out of HDMI repeaters to finish a job.
-
Page 23: Warranty And Support
Support@aidaimaging.com Website: aidaimaging.com/support We are open yearly, Mon-Fri 8A.M. to 5P.M. PST, excluding major holidays and events. Also, keep up to date with firmwares and new releases from AIDA Imaging by signing up for our newsletter, found on our website.
