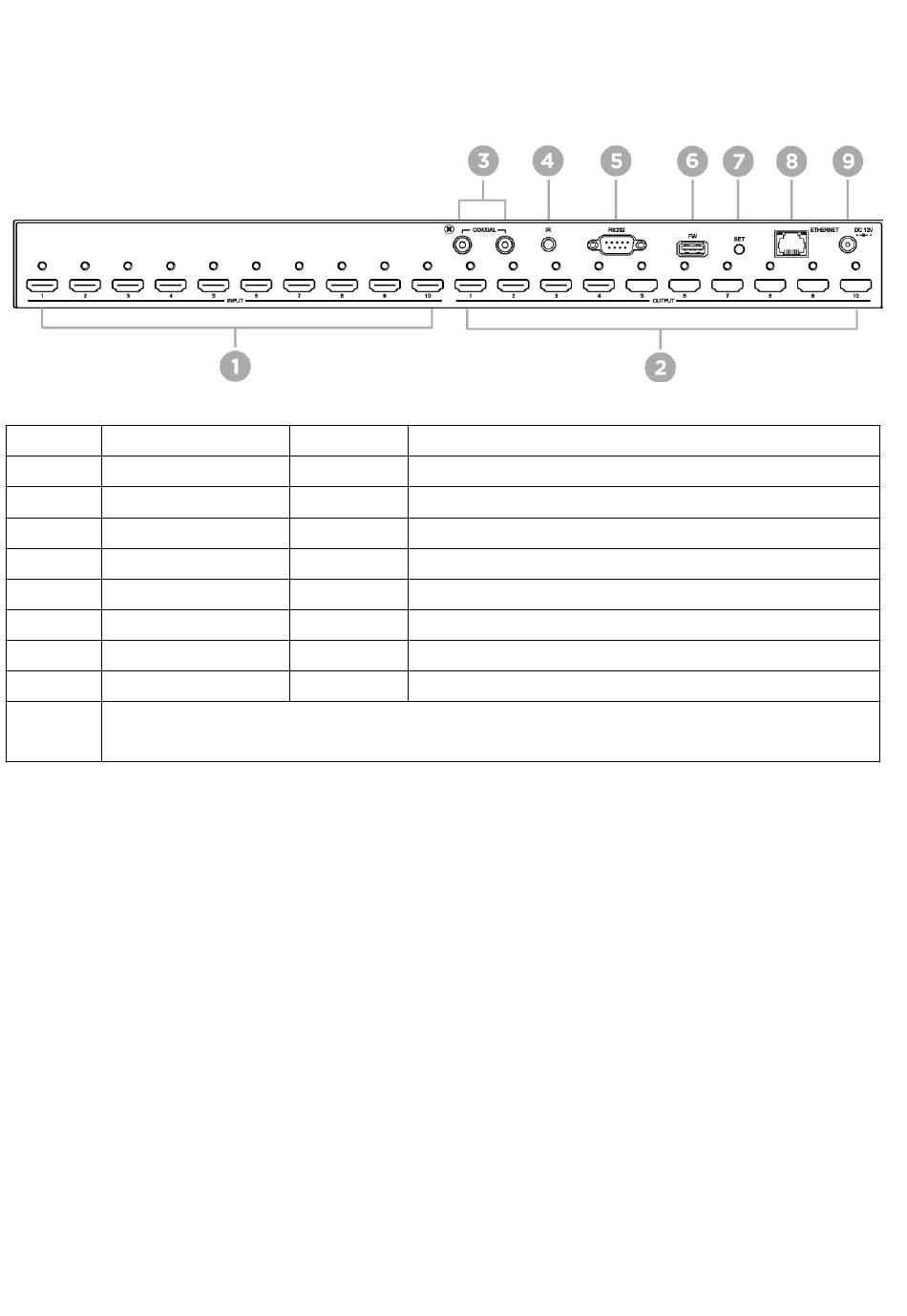

1.3 Rear Panel
1
INPUT HDMI
2
OUTPUT HDMI
3
Audio
4
IR
5
CONSOLE
6
FW
7
SET
8
RJ45
9
DC JACK
* In standby mode, IR remote cannot control matrix but power on matrix only
Notice
* Please press ENTER to execution any change of menu settings
DXP H1010
N/A
HDMI input port 1~10
N/A
HDMI output port 1~10
N/A
SPDIF audio output port 1~2
N/A
External IR receiver
N/A
RS232 command control / Firmware update
N/A
Firmware update
N/A
Set
N/A
WEB control interface
Power input
N/A
User Manual
