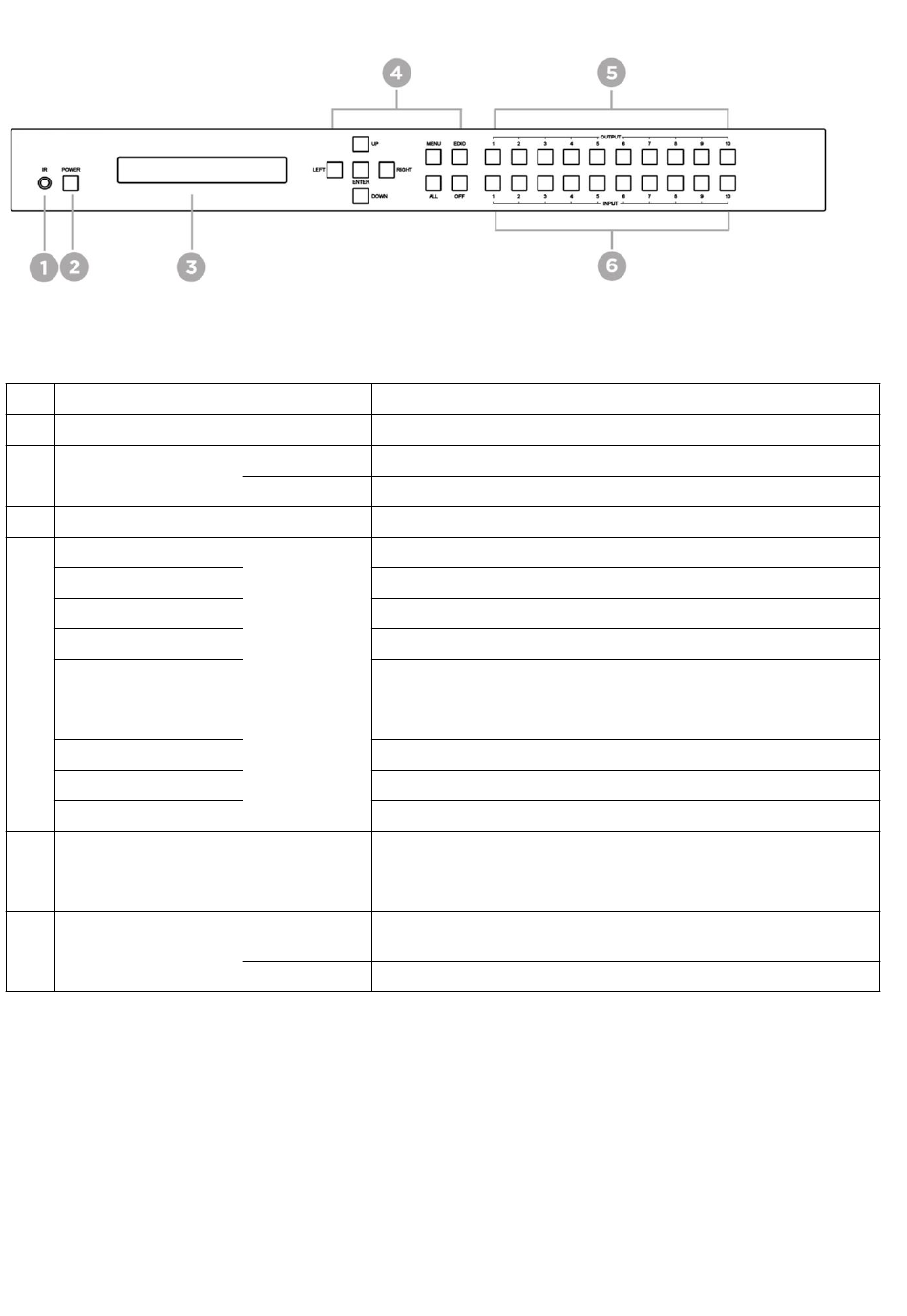

1.2 Front Panel

No. Feature
1 IR Receiver
2 POWER
3 OLED Display
UP Button
DOWN Button
LEFT Button
RIGHT Button
ENTER Button
4
MENU Button
SCENE Button
ALL Button
OFF Button
5 OUTPUT Buttons
6 INPUT Buttons
DXP H1010
LED Status
N/A Receiving IR remote signal
Blue ON Power ON
Red ON Standby
N/A Display operating status or Menu.
Go up direction in Menu.
Go down direction in Menu.
Go left direction in Menu.
N/A
Go right direction in Menu.
Execute selected function
Press to enter Menu or display current operating status
Press and hold 3 seconds to enable/disable KEYLOCK
Save/Load scene
Blue ON
Select all output
Turn off select output
Press these buttons to select the desired output
Blue ON
Monitor connected
OFF No monitor connected
Press these buttons to select the desired input
Blue ON
Video input detected
OFF No video input
