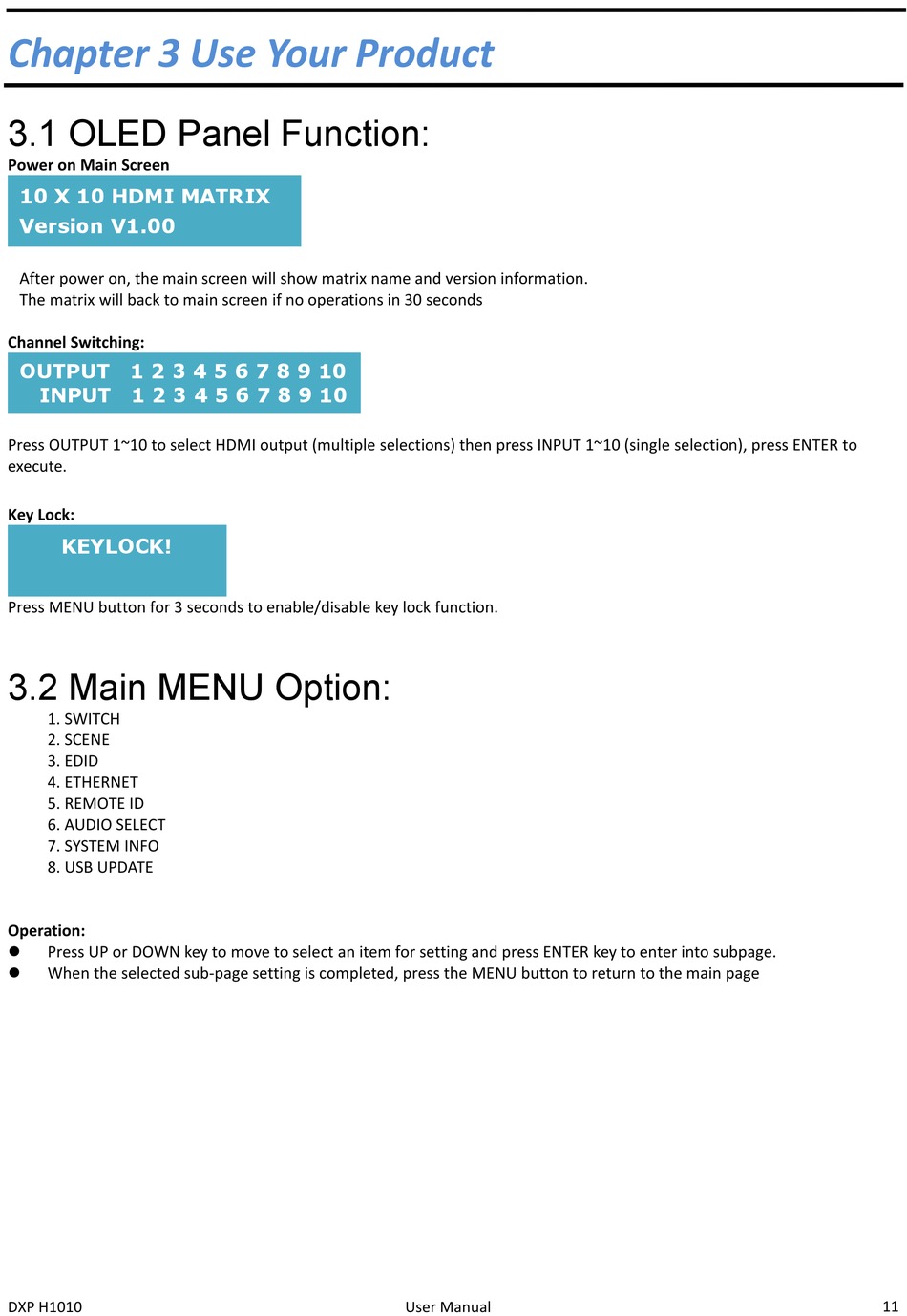

Chapter 3 Use Your Product

3.1 OLED Panel Function:

Power on Main Screen
10 X 10 HDMI MATRIX
Version V1.00
After power on, the main screen will show matrix name and version information.
The matrix will back to main screen if no operations in 30 seconds
Channel Switching:
OUTPUT 1 2 3 4 5 6 7 8 9 10
INPUT 1 2 3 4 5 6 7 8 9 10
Press OUTPUT 1~10 to select HDMI output (multiple selections) then press INPUT 1~10 (single selection), press ENTER to
execute.
Key Lock:
KEYLOCK!
Press MENU button for 3 seconds to enable/disable key lock function.

3.2 Main MENU Option:

1. SWITCH
2. SCENE
3. EDID
4. ETHERNET
5. REMOTE ID
6. AUDIO SELECT
7. SYSTEM INFO
8. USB UPDATE
Operation:
Press UP or DOWN key to move to select an item for setting and press ENTER key to enter into subpage.

When the selected sub-page setting is completed, press the MENU button to return to the main page

