RGBlink DXP H1010 User Manual page 19

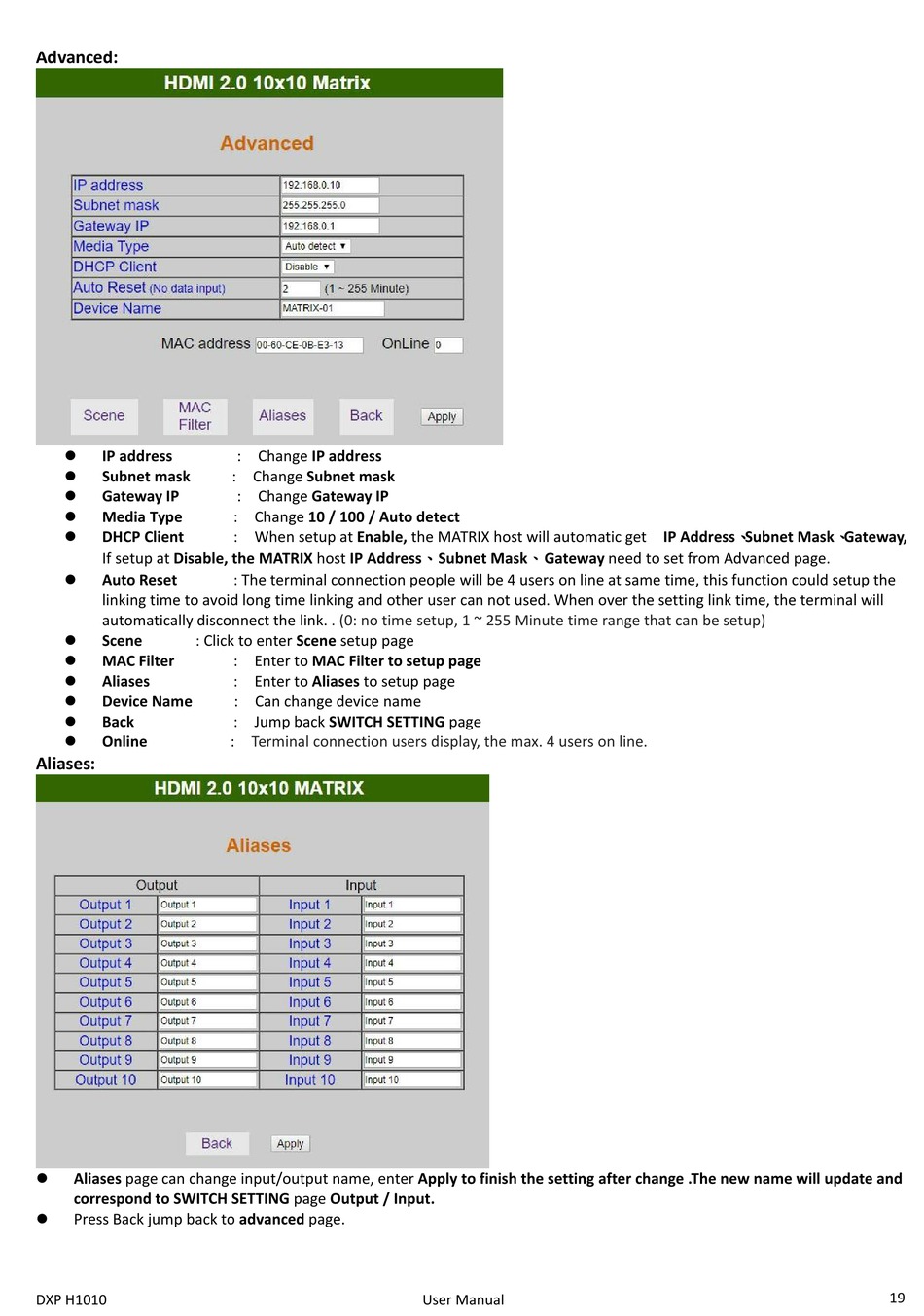

Advanced:
IP address

Subnet mask

Gateway IP

Media Type

DHCP Client

If setup at Disable, the MATRIX host IP Address、Subnet Mask、Gateway need to set from Advanced page.
Auto Reset

linking time to avoid long time linking and other user can not used. When over the setting link time, the terminal will
automatically disconnect the link.
Scene : Click to enter Scene setup page

MAC Filter

Aliases

Device Name

Back

Online

Aliases:
Aliases page can change input/output name, enter Apply to finish the setting after change .The new name will update and

correspond to SWITCH SETTING page Output / Input.
Press Back jump back to advanced page.

DXP H1010
: Change IP address
: Change Subnet mask
: Change Gateway IP
: Change 10 / 100 / Auto detect
: When setup at Enable, the MATRIX host will automatic get IP Address、 Subnet Mask、 Gateway,
: The terminal connection people will be 4 users on line at same time, this function could setup the
. (0: no time setup, 1 ~ 255 Minute time range that can be setup)
: Enter to MAC Filter to setup page
: Enter to Aliases to setup page
: Can change device name
: Jump back SWITCH SETTING page
: Terminal connection users display, the max. 4 users on line.
