Remote Id：(Default Id 4) - RGBlink DXP H1010 User Manual

Gateway: (Default 192.168.0.1)
Gateway
192.168. 0. 1
This function can be setup MATRIX host intranet "Gateway", press the ENTER, the left-most number of second row will flash, then
press the UP or DOWN button to change the numbers Press the ENTER, press LEFT or RIGHT to move to another location, the
move to a position number will flash, press ENTER to complete the setting.
DHCP Client: (Default Disable)
DHCP Client
Disable
When DHCP Clients setup at "Enable", the MATRIX host will automatically get IP Address, Subnet Mask, Gateway, if setup at
"Disable", the MATRIX Host IP Address need go through " ETHERNET" menu to set IP Address, Subnet Mask, Gateway, to press the
ENTER, the second row will flash, then press the UP or DOWN to select DISABLE, ENABLE, then press ENTER to complete the
setting.
Media Type: (Default 100M)
Media Type
100M
This function can be setup MATRIX host intranet "Media Type, press the ENTER, the second row will flash, then press the UP or
DOWN button to select 10M, 100M, AUTO, press ENTER to complete the setting.
MAC Filter: (Default Disable)
MAC FILTER
DISABLE
MAC Filter can be setup with registered MAC Address in order to connect the MATRIX host Web UI, MAC Address required by the
Web page to fill in, this function can only be setup at "DISABLE", "ENABLE", then to press the ENTER, the second row will flash,
then press the UP or DOWN to select DISABLE, ENABLE, then press ENTER to complete the setting.
3.3.5 REMOTE ID：(Default ID 4)
This function must be set to match the Matrix remote control IR01 with the matrix itself. A conflict with other devices remote
control is avoided.
After entering REMOTE ID menu, press ENTER, the OLED LINE 1 number will flash. Then Press UP or DOWN button to select the
number, and then press ENTER to confirm.
When finish REMOTE ID setting, MATRIX remote control IR01 must also set the same ID in order to operation in normal.

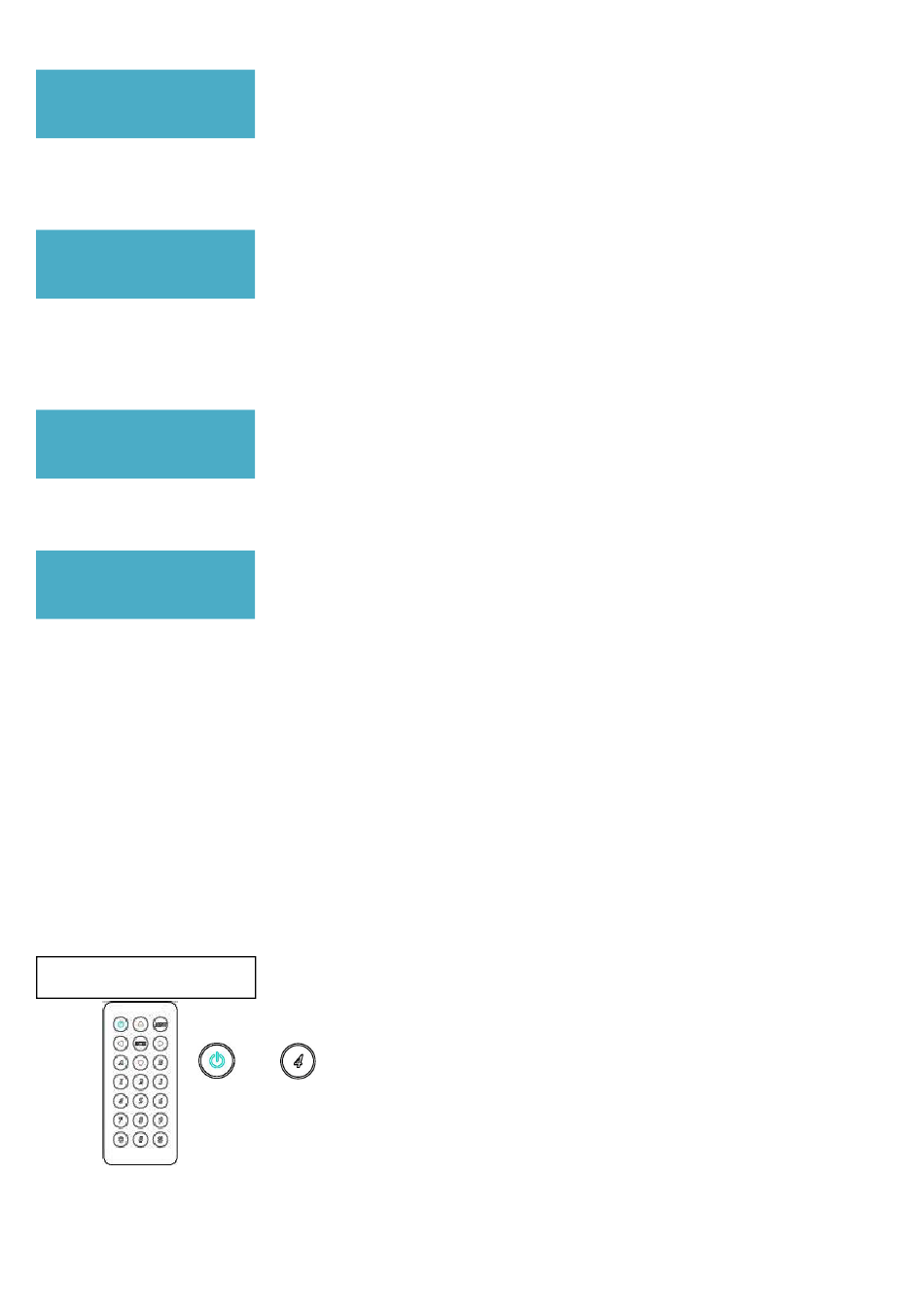

IR Remote setting: Press and hold the POWER button, then press the number button which can be set from 0 to 9, total 10
groups.
These settings on IR01 remote control have to be done the first time you use the IR01 or when you change the batteries.
REMOTE ID 4
