Quick key:
For example: to switch output port 1 to input port 4, press 1 (OUTPUT 1) and then press 4 (INPUT 4).
* Under using quick key operation, OLED screen will jump to the output / input setting page; it won't allow using the front panel
button to operate the DXP H1010.

3.4.2 Console

DXP H1010 support RS232 and TCP/IP control by same command as below:

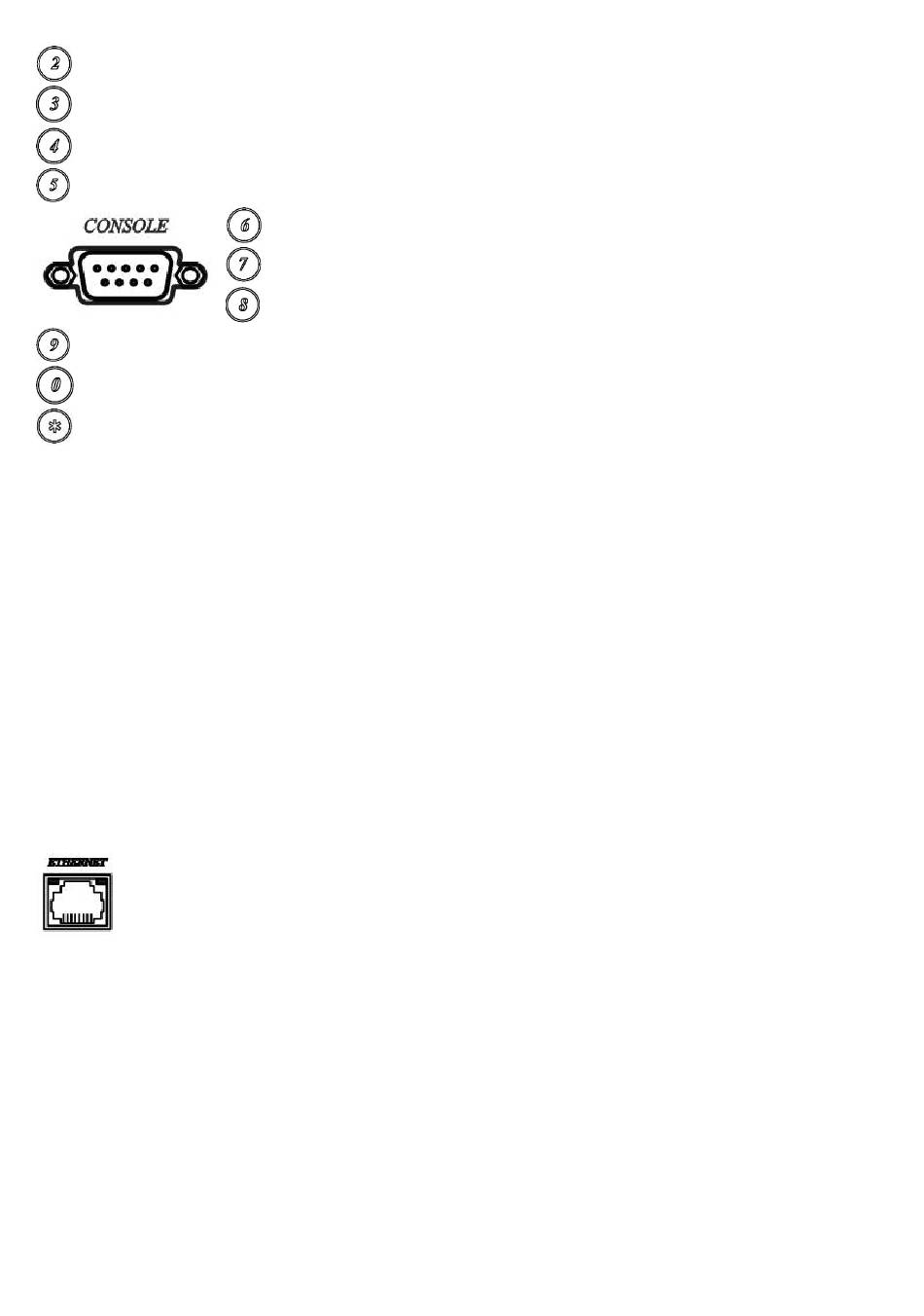

For RS232 CONSOLE:
Connect the RS232 CONSOLE port to the COM port of the host by a F/M RS232 straight cable (pin 2 to pin 2; pin 3 to pin 3, pin 5
to pin 5).
Communication format is 9600,8, N, 1 (9600 bps, 8 data bits, no parity check, 1 stop bit)
For Ethernet TCP/IP(Winsock)
Default IP address: 192.168.0.10, Port:47011
Operation Instruction format:
Command + △(Space) + Parameter + Enter
[Command]
------------------------- -------------------------------------------
POWER△[d]
TX01△[b]
TX02△[b]
DXP H1010
Quick key 2
Quick key 3
Quick key 4
Quick key 5
Quick key 6
Quick key 7
Quick key 8
Quick key 9
OFF
Quick key 10
[Description]
Power on/off
Set Input #n to output 1
Set Input #n to output 2
User Manual
