4.2 Free-standing

If not installed in an equipment rack, PowerZone™ Connect
amplifiers can be placed free-standing on a flat surface.
Adhesive rubber feet are supplied for this purpose.
PowerZone™ Connect amplifiers can also be
attached to the underside of desks or wall
mounted using connecting plate hardware. The
adhesive rubber feet should also be used in these
circumstances to minimise the possibility of
vibration between the amplifier and mounting

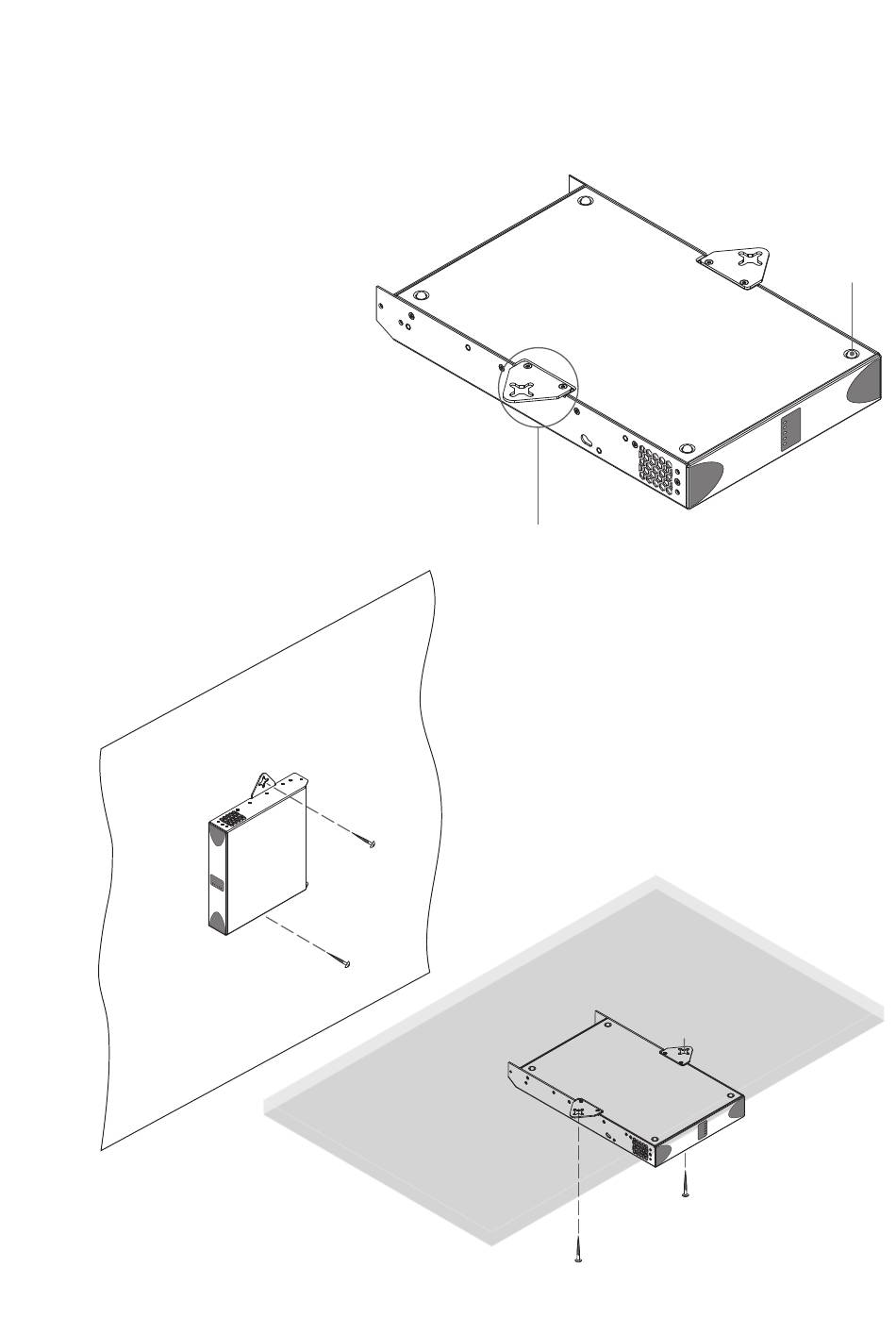

surface. Wall and desk mounting is illustrated in
Diagrams 4a and 4b.
It is important in any free standing installation that
airflow through the amplifier's side panel mounted
fans and rear panel ventilation apertures is not
compromised by adjacent items. At least 80mm of
free space behind the amplifier and 25mm along at
least one side should be retained at all times.
Diagram 4b
PowerZone™ Connect
wall and under-desk mount.
Installation
Mounting Plate +
2 x M3 x 6 countersunk
with desk/wall Mounting Plate and adhesive feet.
2 positions and 4 positions.
Diagram 4a
PowerZone™ Connect
Adhesive Foot
4 positions
