Select and adjust required EQ stages
A pink noise or sine wave audio signal generator, appropriate
for audio system testing and set up, can also be enabled,
disabled, and adjusted for gain and frequency via the Input Tab.

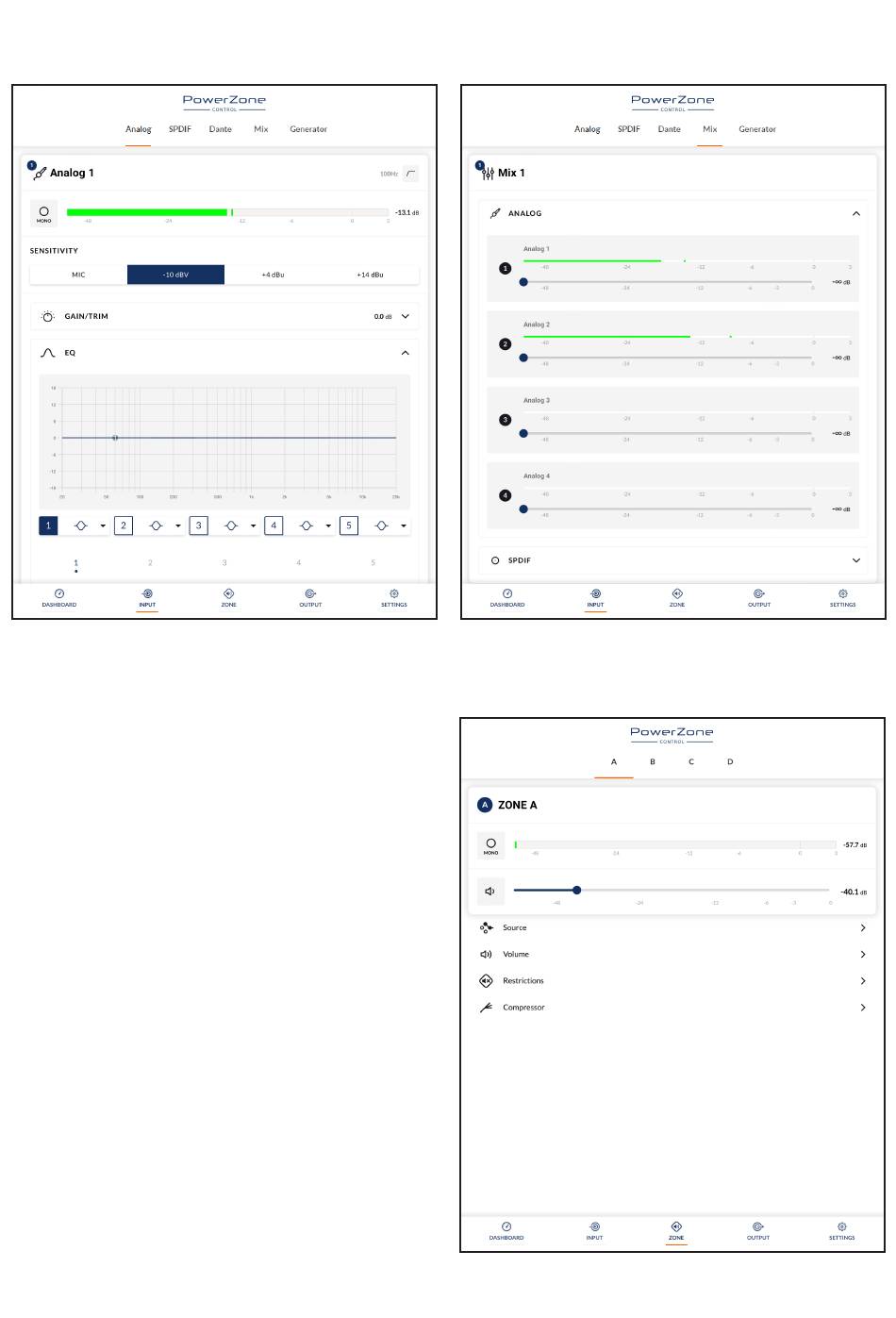

Diagrams 5B, 5C and 5D illustrate the Input Tab, Input EQ and
Input Mix displays respectively.
5.3.2 Zone Tab
The Zone Tab enables installation zones to be defined and
named, and provides access to further sub-menus. Zones
might be bar or restaurant areas for example, or different
rooms in a home. For all Zone Tab menus, the installation zone
under configuration is selected by highlighting one of the zone
identifiers (A, B, C or D) at the top of the display. Diagram 5E
and 5F illustrates the Zone Tab and Source menu displays.
• The Source menu enables inputs to be assigned to zones
and Input Priority or Input Ducking to be configured. The
Input Priority function enables an alternative input to
replace and mute the input primarily routed to the zone
under configuration when the alternative input exceeds a
preset level.
The Input Ducking function enables an alternative input to
replace and attenuate the input primarily routed to the zone
under configuration when the alternative input exceeds a
preset level.
Configuration
Diagram 5C
Input EQ display
Diagram 5E
Zone Tab display
Mix name - type to edit
Adjust mix input level
Zone name - type to edit
Select mono or stereo
Adjust zone volume
Select zone input
Configure zone volume options
Configure zone restrictions
Configure zone compressor
Select mix function
Diagram 5D
Input Mix display
Select zone
