• The Equalizer menu enables parametric equalization to be
applied to individual amplifier outputs. Equalizer settings
configured for one amplifier output can be copied and
applied to other outputs.
• The Speaker Preset menu enables a set of speaker
parameters to be adjusted, and preset configurations to be
created, exported, imported or cleared.
• Speaker Presets can be simply applied to the selected
amplifier output or imported, chosen from a library,
exported or cleared. The preset configurations can include
any or all of the parameters described in Section 5.3.4
and can be locked to prevent inadvertent modification.
Diagrams 5H to 5K illustrate the application of speaker
presets.
Speaker Preset data provided by third parties for use with
specific speakers can be imported and applied to amplifier
outputs. To import speaker preset parameters follow the
steps described below and illustrated in the diagrams.
1. Select either the IMPORT PRESET FROM LIBRARY
or SELECT PRESET FROM FILE option from the
Speaker Preset menu. If no import option is visible,
select CLEAR to delete any existing speaker preset
data.

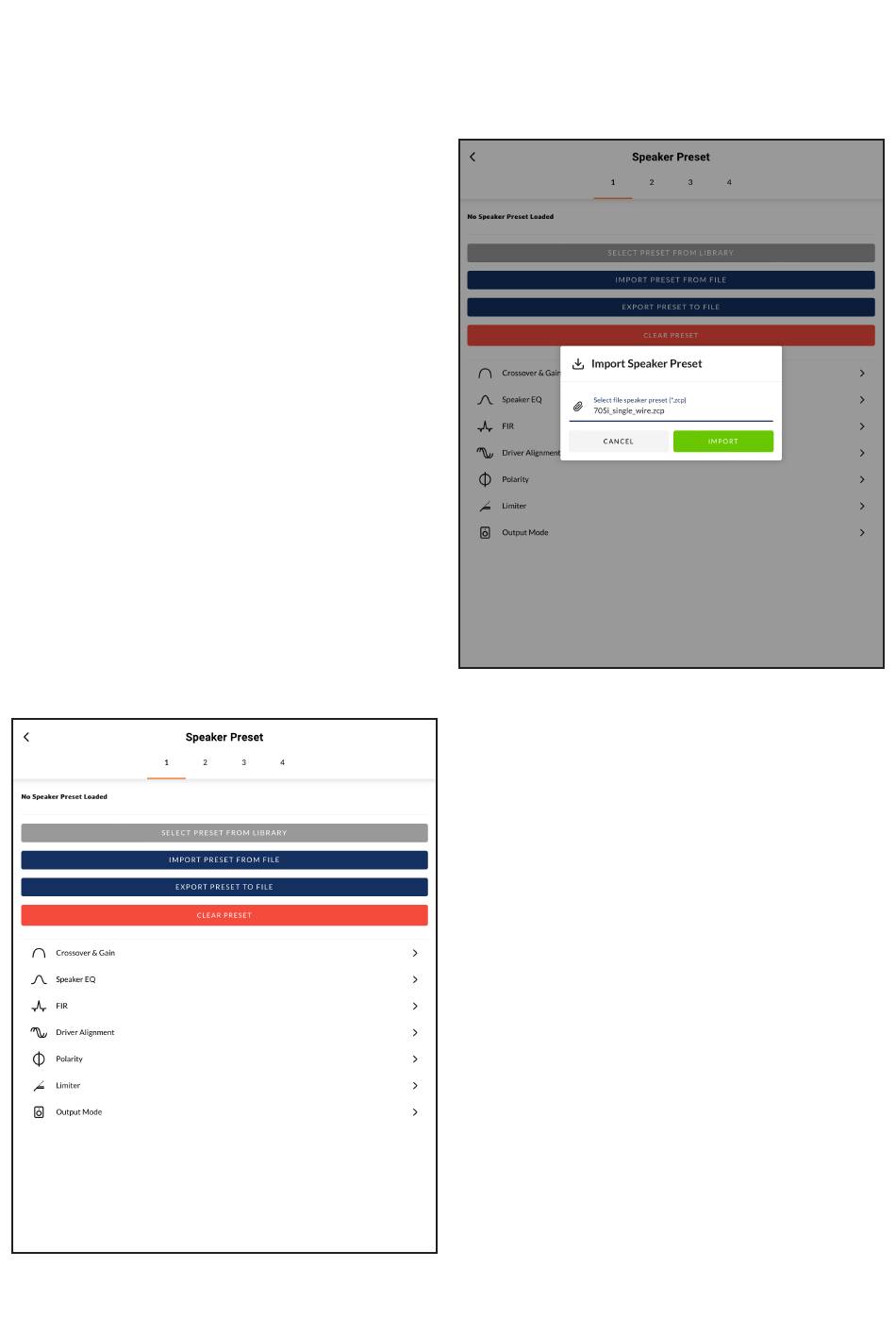

Diagram 5H
Speaker Preset Parameters
Configuration
Select output
Select to configure
Select to configure
Select to configure
Select to configure
Select to configure
Select to configure
Select to configure
Select to configure
Note: The SELECT PRESET FROM LIBRARY option will be
unavailable if no speaker preset libraries have been created. Speaker
preset library creation and management is described in Section
5.3.5. A variety of speaker preset files are available for download
from the Blaze website: www.blaze-audio.com.
2. Select the appropriate '.zcp' format speaker preset
data file to import from either a Library or a
computer folder. The preset data will be applied
to the selected amplifier output as soon as the file
import is complete.
3. If the Speaker Preset data requires modification it
can be customized by selecting the CUSTOMIZE
PRESET option.
Note: If an imported Speaker Preset data file includes locked
parameters, they will be unavailable for modification.
5.3.4 Speaker Preset Menu Parameters
• The Crossover & Gain preset menu enables high or low-
pass crossover filters and gain adjustment to be applied to
individual amplifier outputs.
• The Speaker EQ preset menu enables parametric
equalization to be applied to individual amplifier outputs.
Diagram 5I
Speaker Preset import file selection
