Blaze PowerZone Connect 252 Quick Start Manual

Carton Contents
• Amplifier unit • Output connector x 1 or 2
• Mains power cable • Adhesive rubber feet x 4
• Input connector x 2 • Document pack
• GPIO socket connector
Network
Control
Dante
(optional)
Installation Notes
• High or low impedance speaker connection options can
be selected independently for each output channel via the
PowerZone™ Control Web App.
• Analogue input sensitivity can be adjusted independently for
each channel via the PowerZone™ Control Web App.
• S/PDIF digital audio I/O routing can be configured via the
PowerZone™ Control Web App.
• GPIO (General Purpose Input/Output) options can be
configured via the PowerZone™ Control Web App.
PowerZone™ Connect 122/122D • 252 • 254 • 504/504D
A full user manual including information on installation, mounting
accessories and amplifier operation is available online.

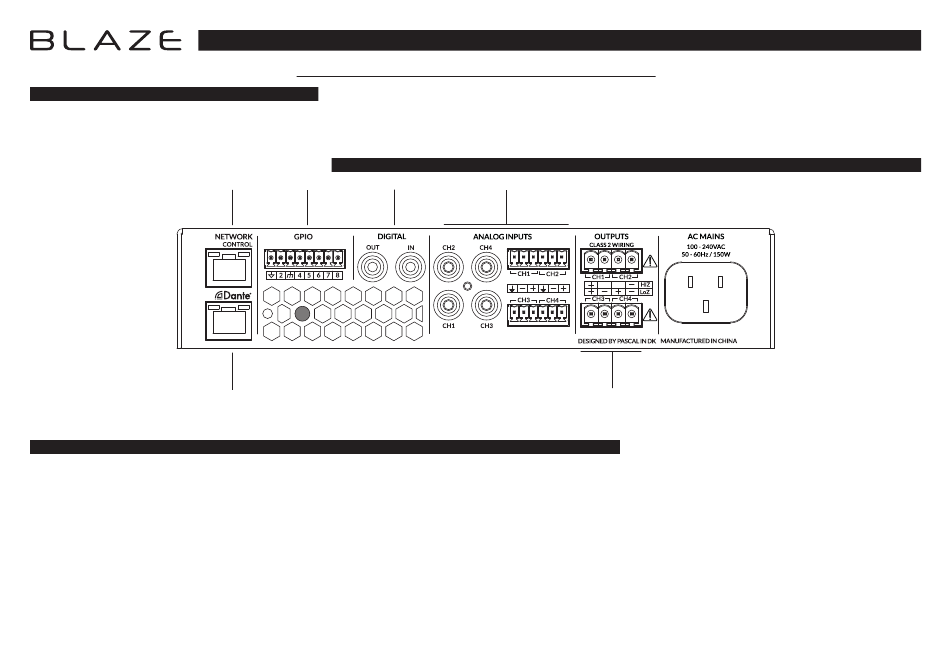

Connection Sockets
Configurable Configurable
GPIO S/PDIF Audio I/O
*Product shown as example is PowerZone Connect
®
4 Channel version (504)
• Optional Audinate Dante
over IP (AoIP) networks and installations.
• Ensure that rack or other confined installation does not
restrict the airflow required for safe and reliable operation
of the equipment. It is important to ensure that the 40°C
maximum operating temperature for the equipment is not
exceeded.
Blaze Audio HQ, Pascal A/S, Ellekaer 6, DK-2730 Herlev, Denmark. hello@blaze-audio.com, www.blaze-audio.com
Blaze Audio Americas, Pascal Inc., (888) 500-0109, help@blaze-audio.com
QUICK START GUIDE
Audio Inputs
Balanced: Euroblock - Unbalanced: RCA Phono.
Configurable
Speaker Outputs
interface for integration with audio
®
