5.3.5 Settings Tab
The Settings Tab enables miscellaneous amplifier settings
to be configured and installation data to be recorded. The
Settings Tab provides access to further sub-menus. Diagram 5L
illustrates the Settings Tab.
• The System Information menu provides text fields for the
recording of installation data.
• The Device menu records amplifier specific information
such as the model number and firmware version. A firmware
update routine and identifier button can also be found
under the Device menu.
• The External Devices menu enables Blaze Wall-S1 control
panels to be paired with an amplifier and configured. Each
individual amplifier zone to be controlled requires its own
Wall-S1 unit. Diagram 5M illustrates the External Devices
display.
Note: Full information on Wall-S1 installation and use can be found
in the Wall-S1 installation manual available for download from:
https://blaze-audio.com/products/control/wall-s1/
• The Backup & Restore menu enables amplifier
configuration data to be downloaded to an external archive,
and enables previously saved configuration files to be
uploaded and adopted by the currently connected amplifier.
Configuration

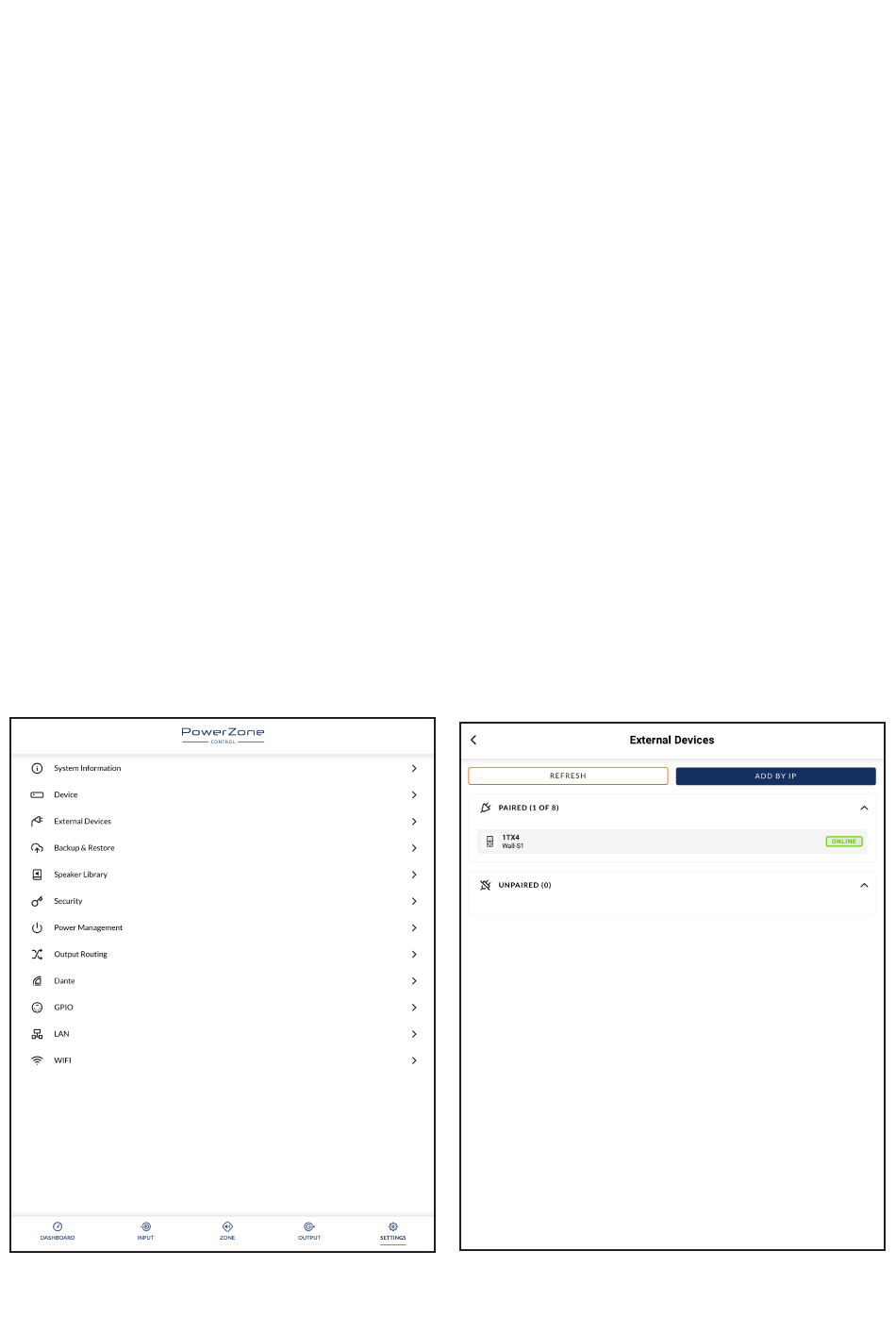

Diagram 5L
Settings Tab menu
External device - tap to configure
The External Devices display
Diagram 5M
