BUILT-IN OVEN
USER MANUAL
7NM30M1
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement. Consult
with your dealer or manufacturer for details.

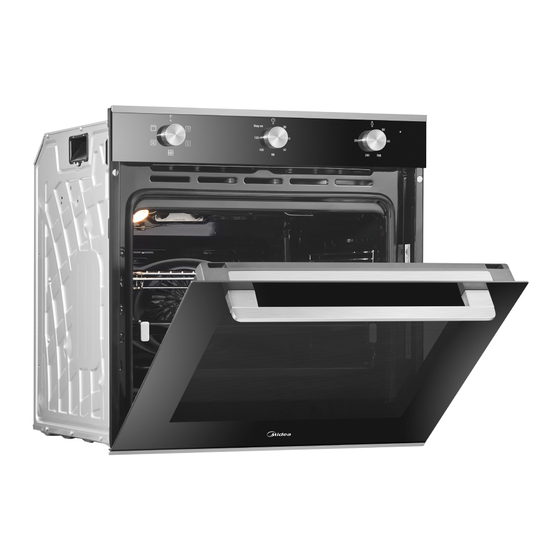

The diagram above is just for reference. Please take the appearance of the actual product as the standard.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7NM30M1 and is the answer not in the manual?

Questions and answers

Related Manuals for Midea 7NM30M1

Summary of Contents for Midea 7NM30M1

  • Page 1 BUILT-IN OVEN USER MANUAL 7NM30M1 Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.

  • Page 2: Table Of Contents

    THANK YOU LETTER THANK YOU LETTER Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS Intended Use The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer.
  • Page 4 Safety Information Intended Use • Thank you for buying Midea Built-in Oven. Before unpacking it, please read these instruc-tions carefully. Only then will you be able to operate your appliance safely and correctly. Warmly recommend retain the instruction manual and installation instructions for future use or for subsequent owners.
  • Page 5 Warning Risk of electric shock • Incorrect repairs are dangerous. Repairs may only becarried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switchff the circuit breaker in the fuse box. Contact the aftersales service.
  • Page 6 • Accessories and ovenware become very hot. Always use oven gloves to remove acces sories or ovenware from the cavity. • Alcoholic vapors may catch fire in the hot cooking compartment. Never prepare food containing large quantities of drinks with high alcohol content. Only use small quanti ties of drinks with high alcohol content.
  • Page 7 Risk of fire • Combustible items stored in the cavity may catch fire.Never store combustible items inthe cavity. Never open the appliance door if there is smoke inside. Switch off the appliance and unplug it from the circuit breaker in the fuse box. •...
  • Page 8 • Silicone pans: Do not use any silicone pans, or any mats, covers or accessories that contain silicone. The oven sensor may be damaged. • Water in a hot cooking compartment: do not pour water into the cavity when it is hot. This will cause steam.
  • Page 9 • Appliance door as a seat, shelf or worktop: Do not sit on the appliance door or place or hang anything on it. Do not place any cookware or accessories on the appliance door. • Inserting accessories: depending on the appliance model, accessories can scratch the door panel when closing the appliance door.

  • Page 10: Specification

    SPECIFICATION Model 7NM30M1 Rated Voltage: 220-240V~ 10A Rated Frequency: HZ z -60Hz Electric Power: 1.9 kW DATASHEET (EU 65/2014 & EU 66/2014) No of Cavities Heat Source Electric Usable Volume ECelectric, cavity (Conventional) / kWh/cycle ECelectric, cavity (Forced Air) 0.75kWh/cycle EEICavity 87.4...

  • Page 11: Product Overview 1

    PRODUCT OVERVIEW Know Your Appliance Identifying the appliance In this chapter, we will explain the control panel and accessories. At the same time you will also find out about the various functions of your appliance. Note: Depending on the appliance model, individual details and colors may different.
  • Page 12 Accessories Your appliance is accompanied by a range of accessories. Here, you can find an overview of the accessories included and information on how to use them correctly. Accessories included Your appliance is equipped with the following accessories: Wire Rack Wire Rack For ovenware, cake tins For ovenware, cake tins...
  • Page 13 Locking function Accessories can be approximately pulled halfway out until they lock in place. The locking function prevents accessories from tilting with the gravity of food and accessories themselves while they get pulled out. Accessories should be inserted into cavity correctly for the tilt protection.When inserting the wire rack, ensure the wire rack is onto the right facing direction like the picture When inserting the backing tray, ensure the backing tray is onto the right facing...

  • Page 14: Product Installation 1

    PRODUCT INSTALLATION Cupboard Diagram (Standing Cupboard) Air vents 6 0 0 5 6 0 M i n . 5 0 ≥ Minimum bottom ventilation area: 250 mm 2 Native appliance ≥ Reserve 5 mm for the door panel at the top and bottom respectively.
  • Page 15 Cupboard Diagram (Ground Cupboard) Air vents . 5 0 M i n 5 6 0 Minimum bottom ventilation area: 250 mm ≥ Native appliance Reserve 5 mm for the door panel at the top and bottom respectively. ≥ Reserve 20 mm for the door panel on the left and right respectively.
  • Page 16 Fix The Telescopic Runners ( take the left side for example, same for right side) • Put the point A and B of the telescopic runners horizontally on the outer wire. • Rotate the telescopic runners anti-clockwise （ clockwise for right side ） by 90 degrees.
  • Page 17 Remove The Telescopic Runners ( take the left side for example, same for right side) • Lift up one end of the telescopic runners hard. • Lift up the whole telescopic runners and remove backward. Change The Power Cord Position A show the terminal box position on the back of the back outer case and it’s closed.

  • Page 18: Operation Instructions 1

    OPERATION INSTRUCTIONS First Use Before using the appliance to prepare food for the first time, you must clean the cavity and accessories. 1. Remove all stickers, surface protection foils and transport protection parts. 2. Remove all accessories and the side-racks from the cavity. 3.
  • Page 19 Types of heating Heating Mode Temperature For lightening the cavity without any Lamp heating element switch on. Defrost For gently defrosting frozen food. For grilling small amounts of steaks or sausages. Grill 50°C~250°C The center area under the heating heating element becomes hot For baking and roasting on one or more levels.(But no more than 3)
  • Page 20 Selecting Modes The default operating mode is switching off. If you would like to select a cooking operat-ing mode, you can do so using left mode-control knob. There is a pointer on the knob, turn this knob to make the pointer to point to the mode which you would like to choose.
  • Page 21 NOTE For this appliance, to finish the setting of cooking time means to operate the appliance started. Since the second that you turn the knob away from the original position, the appliance will start to work. If you turn the time-control knob anti-clockwise, the gear that the knob will arrive is STAY ON, which means the oven will work continuously without timer controlling.
  • Page 22 Turn the time-control knob from present to others while the appliance is operating means to get the rest cooking time changed while food is being cooked. By this time, if you turn the knob back to the original position, it means the appliance is officially switched off.
  • Page 23 Tips And Tricks Try to use settings of similar recipes first and You want to cook your own recipe optimize the cooking process due to the result. Put a wooden stick inside the cake about 10 minutes before the given baking time is reached. Is the cake baked ready? If there is no raw dough at the stick after pulling out, the cake is ready.
  • Page 24 Use the tray filled with 2 liter of water in at level 1. How to keep clean the oven during Nearly all fluids drip down from the food placed grilling ? on the rack will captured by the tray. The heating element in all grilling It is a normal operation and depends on the modes are switching on and off over temperature setting.
  • Page 25 Energy E ciency According To En 60350-1 Please note the following information: 1. The measurement is carried out in the "Convection Mode" mode to determine the date regarding the forced air mode and the label-class. 2. The measurement is carried out in the “Top & Bottom Heating” mode to determine the data regarding the conventional mode.
  • Page 26 Energy E cient Use 1. Remove all accessories, which are not necessary during the cooking & baking process. 2. Do not open the door during the cooking & baking process. 3. If you open the door during cooking & baking, switch the mode to “Lamp”. (Without change the temperature setting) 4.

  • Page 27: Cleaning And Maintenance 2

    CLEANING AND MAINTENANCE Maintenance Your Appliance Cleaning Agent • With good care and cleaning, your appliance will retain its appearance and remain fully functioning for a long time to come. We will explain here how you should correctly care for and clean your appliance. To ensure that the different surfaces are not damaged by using the wrong cleaning agent, observe the information in the table.
  • Page 28 Hot soapy water: Clean with a dish cloth and then dry with a soft cloth. Door handle If descaler comes into contact with the door handle, wipe it off immediately. Otherwise, any stains will not be able to be removed. Enamel surfaces and self- Observe the instructions for the surfaces of the cooking cleaning surfaces...
  • Page 29 • Remove flecks of food with sugar content immediately, if possible, when the fleck is still warm. • Use suitable ovenware for roasting, e.g. a roasting dish. Appliance Door • With good care and cleaning, your appliance will retain its appearance and remain fully functional for a long time to come.
  • Page 30 Removing The Appliance Door • Open the appliance door fully. • Fold open the two locking levers on the left and right. • Close the appliance door as far as the limit stop. • With both hands, grip the door on the left- and right-hand side, and pull it out upwards.
  • Page 31 Fitting The Appliance Door Reattach the appliance door in the opposite sequence to removal. • When attaching the appliance door, ensure that both hinges are placed right onto the installing holes of the front panel of the cavity. Ensure that the hinges are inserted into the correct position. You must be able to insert them easily and without resistance.
  • Page 32 Removing The Door Cover The plastic inlay in the door cover may become discolored. To carry out thorough cleaning, you can remove the cover. Remove the appliance door like instructed above. • Press on the right and left side of the cover. •...

  • Page 33: Trouble Shooting

    TROUBLE SHOOTING Cure Your Appliance When Needed If a fault occurs, before calling the after-sales service, please ensure that is not because of incorrect operations and refer to the fault table, attempt to correct the fault yourself. You can often easily rectify technical faults on the appliance yourself. If a dish does not turn out exactly as you wanted, you can find many tips and instruc tions for preparation at the end of the operating manual.
  • Page 34 • A temperature different from the recipe is used. Double check the • The food is not suffcient cooked in the temperatures. The ingredient quantities time given by the recipe . are different to the recipe. Double check the recipe. •...
  • Page 35 • Place a towel in the cold cavity to prevent damage. • Turn the glass cover anti-clockwise to remove it. • Pull out the lamp – do not turn it. • Screw the glass cover back in. • Remove the towel and switch on the circuit breaker to see if lamp switches on. Insert the new lamp, making sure that the pins are in the correct position.

  • Page 36: Appliances Warranty Card

    APPLIANCES WARRANTY CARD Please Keep Your Receipt as This Will Authenticate Your Warranty WARRANTY PERIOD For the period of Three years from the date of original Retail purchase (the warranty period), we will warrant following “ ” appliances (Oven, Cooktop, Rangehood, Dishwasher) that fail to function properly under normal domestic use (single family use only) due to the manufacturers defect when installed and operated according to the “Instruction”...
  • Page 37 APPLIANCES WARRANTY CARD Please Keep Your Receipt as This Will Authenticate Your Warranty What’s not covered: This warranty • Does not cover any products used in multi families or outdoor or commercial or industrial applications. • Does not cover the cabinet, the floor or user attached things, any damage to the product resulting from alterations, neglect, accidents, shipping accident, incorrect installation, misuse or abuse, damage due to lightning or power surges, or work carried out by anyone other than an authorized Service Agent which list in this card.
  • Page 38 APPLIANCES WARRANTY CARD Please Keep Your Receipt as This Will Authenticate Your Warranty 24MONTH WARRANTY REGISTRATION CARD MODEL NUMBER: SERIAL NUMBER: RECIEPT NUMBER: PURCHASE DATE: PURCHASE FROM: OWNERS NAME & PHONE NUMBER: ADDRESS: TO REGISTER YOUR PRODUCT FOR ITS 24 MONTHS WARRANTY, PLEASE COMPLETEAND KEEP THIS DOCUMENT IN AND YOUR RECIEPT IN A SAFE PLACE.

  • Page 39: Trademarks, Copyrights And Legal Statement

    Midea may constitute trademark infringement or unfair competition in violation of relevant laws. This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.

  • Page 40: Data Protection Notice

    European Economic Area. Further information are provided on request. You can contact our Data Protection info@midea.n .au To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via info @midea.
