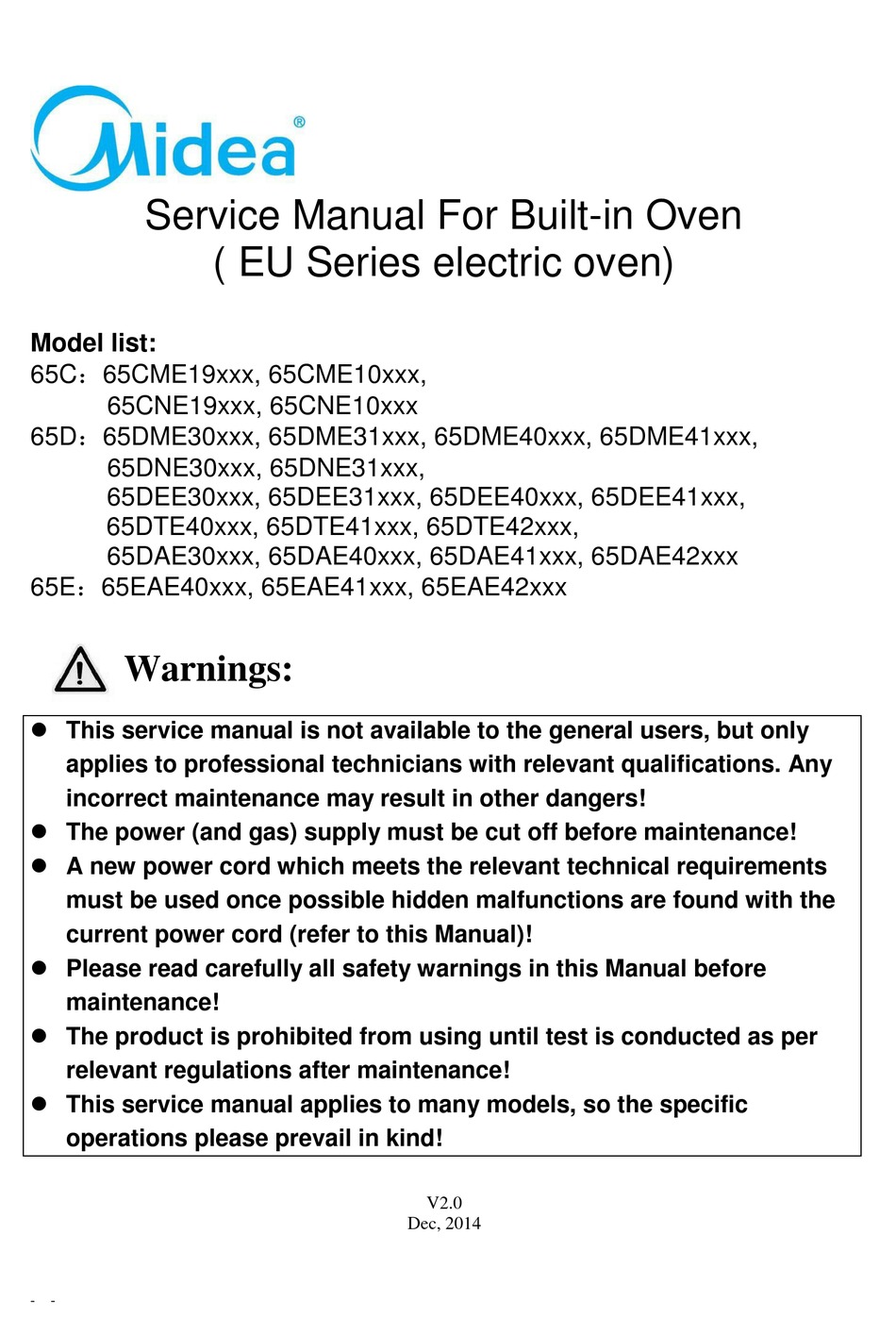

Service Manual For Built-in Oven
Model list:
65C：65CME19xxx, 65CME10xxx,
65CNE19xxx, 65CNE10xxx
65D：65DME30xxx, 65DME31xxx, 65DME40xxx, 65DME41xxx,
65DNE30xxx, 65DNE31xxx,
65DEE30xxx, 65DEE31xxx, 65DEE40xxx, 65DEE41xxx,
65DTE40xxx, 65DTE41xxx, 65DTE42xxx,
65DAE30xxx, 65DAE40xxx, 65DAE41xxx, 65DAE42xxx
65E：65EAE40xxx, 65EAE41xxx, 65EAE42xxx
Warnings:
This service manual is not available to the general users, but only
applies to professional technicians with relevant qualifications. Any
incorrect maintenance may result in other dangers!
The power (and gas) supply must be cut off before maintenance!
A new power cord which meets the relevant technical requirements
must be used once possible hidden malfunctions are found with the
current power cord (refer to this Manual)!
Please read carefully all safety warnings in this Manual before
maintenance!
The product is prohibited from using until test is conducted as per
relevant regulations after maintenance!
This service manual applies to many models, so the specific
operations please prevail in kind!
- -
( EU Series electric oven)
V2.0
Dec, 2014
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Midea 65CME19 series
Summary of Contents for Midea 65CME19 series
- Page 1 Service Manual For Built-in Oven ( EU Series electric oven) Model list: 65C：65CME19xxx, 65CME10xxx, 65CNE19xxx, 65CNE10xxx 65D：65DME30xxx, 65DME31xxx, 65DME40xxx, 65DME41xxx, 65DNE30xxx, 65DNE31xxx, 65DEE30xxx, 65DEE31xxx, 65DEE40xxx, 65DEE41xxx, 65DTE40xxx, 65DTE41xxx, 65DTE42xxx, 65DAE30xxx, 65DAE40xxx, 65DAE41xxx, 65DAE42xxx 65E：65EAE40xxx, 65EAE41xxx, 65EAE42xxx Warnings: This service manual is not available to the general users, but only applies to professional technicians with relevant qualifications.
-
Page 2: Table Of Contents
Contents Precaution ...............................1 Safety Precaution ........................1 Warning ............................1 Dimension..............................1 Function ..............................2 Function adjustment ........................2 Temperature adjustment ......................2 Timer function ..........................3 Display introduction ........................3 Circuit diagram ............................4 65CME19xxx ..........................4 65CNE19xxx ..........................4 65CME10xxx ..........................4 65CNE10xxx .......................... - Page 3 Installation .............................12 Preparation before installation ....................12 Install the oven to the cabinet ....................12 Disassembly ............................13 Tools ............................13 Remove the oven from the cabinet ..................14 Disassembly of oven door ......................15 6.3.1 Remove the door from oven ....................15 6.3.2 Disassembly of enamel door ....................
-
Page 4: Precaution
1. Precaution 1.1 Safety Precaution 1. To prevent injury to the user or other people and property damage, the following instructions must be followed. 2. Incorrect operation due to ignoring instructions will cause harm or damage. 3. Before maintenance, please read carefully the following instructions at first. Warning . -
Page 5: Function
3. Function 3.1 Function adjustment Rotate the knob to the related function position. (Model: 65CME\65CNE\65DME\65DNE\65DEE) Rotate the knob and watch the display, rotate it to the related function icon. (Model: 65DAE\65EAE) Select the related function by touching control buttons. (Model: 65DTE) 3.2 Temperature adjustment Rotate the knob to the expected temperature position. -
Page 6: Timer Function
3.3 Timer function Rotate the knob to the expected timer position. (Model: 65CME\65DME) Set the timer by the buttons. (Model: 65DEE) Set the timer by the buttons。 (Model: 65DAE\65EAE) Set the time by the touching control buttons (Model: 65DTE) 3.4 Display introduction (Model: 65DAE\65EAE) Heating functional combination icon Time display and error code display... -
Page 7: Circuit Diagram
4. Circuit diagram 4.1 65CME19xxx 4.2 65CNE19xxx 4.3 65CME10xxx... -
Page 8: 65Cne10Xxx
4.4 65CNE10xxx 4.5 65DEE30xxx 4.6 65DEE31xxx... -
Page 9: 65Dee40Xxx
4.7 65DEE40xxx 4.8 65DEE41xxx 4.9 65DME30xxx... -
Page 10: 65Dme31Xxx
4.10 65DME31xxx 4.11 65DME40xxx 4.12 65DME41xxx... -
Page 11: 65Dne30Xxx
4.13 65DNE30xxx 4.14 65DNE31xxx 4.15 65DTE40xxx... -
Page 12: 65Dte41Xxx
4.16 65DTE41xxx 4.17 65DTE42xxx 4.18 65DAE30xxx... -
Page 13: 65Dae40Xxx
4.19 65DAE40xxx 4.20 65DAE41xxx 4.21 65DAE42xxx... -
Page 14: 65Eae40Xxx
4.22 65EAE40xxx 4.23 65EAE41xxx 4.24 65EAE42xxx... -
Page 15: Installation
5. Installation 5.1 Preparation before installation 1 Assembly shall be refered to the measurements in the following specification after the package is removed. (The packing material shall be handled properly.) 2 Please use the handle boxes on the sides if the oven is required to be lifted or moved. It is prohibited from using door handle directly to lift the oven. -
Page 16: Disassembly
6. Disassembly 6.1 Tools Most of the tools that you might need are shown below. Some are optional. ELECTRICAL PLIERS or STRIPPERS : For cutting and stripping small electrical wire. VOM (VOLT-OHM METER): For testing electrical circuits. If you do not have one, please get one. An inexpensive one will suffice, as long as it has both "AC Voltage"... -
Page 17: Remove The Oven From The Cabinet
6.2 Remove the oven from the cabinet WARNING： 1 Use a trolley to move the oven when installing it or removing it from the cabinet for service. Use a trolley will minimize the risk of personal injury as a result of the oven tipping. -
Page 18: Disassembly Of Oven Door
6.3 Disassembly of oven door 6.3.1 Remove the door from oven Step 1: Open the door to the maximum angle and then pull backward the movable buckle of door hinge (as indicated in Fig ) to the other side (position as indicated in Fig ). Step 2: Hold the oven door and lift up (open the door 30°... -
Page 19: Disassembly Of Enamel Door
6.3.2 Disassembly of enamel door (Type: 2 layers of glass or 4 layers of glass) Step 1: Remove the door from oven (please refer to Point 6.3.1), and put it horizontally on the table. Step 2: Use a screwdriver to remove two screws on the bottom of the oven door. Step 3: Hold the bottom of the door by one hand on each side, lift it up until the door frame bottom edge releases from the door frame brackets. - Page 20 Step 4: Use a screwdriver to remove the screws fixed the door handle, and disassemble the door handle. Step 5: Use a screwdriver to remove the screws fixed the hinges, and disassemble the hinges. Warning: Don’t try to use hard stuff forcibly to pull the hinges out, and shall be prevented glass smashing during the disassembly process.
-
Page 21: Disassembly Of Flat Door
6.3.3 Disassembly of flat door (Type: 2 layers of glass, 3 layers of glass or 4 layers of glass) Step 1: Remove the door from oven (please refer to Point 6.3.1), and put it horizontally on the table. Step 2: Hold the door by hand on the bottom side of the inner glass, push the inner glass down and pull the inner glass upward (See No.1, No.2 indicated in Fig), take the inner glass out (See No.3 indicated in Fig). - Page 22 Step 4: Use a screwdriver to remove the screws fixed the door handle, and disassemble the door handle. Step 5: Use a screwdriver to remove the screws fixed the hinges, and disassemble the hinges. Note: When assemble the middle glass, please make sure the glass is put in the right place (See the following figure).
-
Page 23: Disassembly Of Control Panel
6.4 Disassembly of control panel 6.4.1 Remove the control panel from oven WARNING: 1 Turn off the electrical power supply to the appliance prior to servicing it. Failure to disconnect the power supply during service may result in an electrical shock or fire hazard. -
Page 24: Disassembly Parts Of Control Panel
6.4.2 Disassembly parts of Control panel Step 1: Remove the control panel from oven (please refer to Point 6.4.1), and put it horizontally on the table. Step 2: Pull the knobs out of the control panel assembly by hands. (Model: 65CME\65CNE\65DME\65DNE) Step 3: Use a screwdriver to remove the screws on control panel holder (on the back of knob decoration ring), remove the knob assembly by screwing it off the control panel holder. - Page 25 Step 5: Use a screwdriver to remove the screws on the back of the control panel assembly. (Type: glass control pane appearance.) Step 6: Press the clips on both sides of the indicator, meanwhile rotate the indicator to the aligned position with the hole on the control panel holder, and pull the indicator out of the it (Model: 65CME\65CNE\65DME\65DNE\65DEE) Step 7: Use a screwdriver to remove the screws which fixed the electric components on the control panel.
-
Page 26: Disassembly Of
6.5 Disassembly of back cover WARNING: Turn off the electrical power supply to the appliance prior to servicing it. Failure to disconnect the power supply during service may result in an electrical shock or fire hazard. Step 1: Disassemble the control panel cover and control panel back cover (please refer to Point 6.4.1 step 1). -
Page 27: Disassembly Of Convection Motor, Turbo Heating Element
6.6 Disassembly of convection motor, turbo heating element WARNING: Turn off the electrical power supply to the appliance prior to servicing it. Failure to disconnect the power supply during service may result in an electrical shock or fire hazard. Step 1: Remove the door from oven (please refer to Point 6.3.1), and put it horizontally on the table. -
Page 28: Disassembly Of Top, Bottom Heating Element
Step 7: Disconnect the wires from the turbo heating element. For the sake of reassembly convenience, please mark the connection positions before moving the wires. Remove the screws on the turbo heating element, and then take it out of from clipping hole. Screw Clipping 6.7 Disassembly of top, bottom heating element... -
Page 29: Disassembly Of Cooling Fan Motor
6.8 Disassembly of cooling fan motor WARNING: 1 Turn off the electrical power supply to the appliance prior to servicing it. Failure to disconnect the power supply during service may result in an electrical shock or fire hazard. 2 Access the cooling fan motor requires that oven's control panel cover and control panel back cover were removed. -
Page 30: Disassembly Of Rotary Motor
6.10 Disassembly of rotary motor Step1: Disassemble the control panel cover and control panel back cover (please refer to Point 6.4.1 step 1). Step 2: Disassemble the back cover (please refer to Point 6.5). Step3: Disconnect wires on the rotary motor. For the sake of reassembly convenience, please mark the connection positions before moving the wires. -
Page 31: Disassembly Of Door Lock
6.12 Disassembly of door lock (Model: 65EAE) Step1: Remove the door from oven (please refer to Point 6.3.1), and put it horizontally on the table. Before removing the door, please make sure the door lock is out of the lock buckle. Step2: Disassemble the control panel cover and control panel back cover (please refer to Point 6.4.1 step 1). -
Page 32: Disassembly Of Rail Bracket, Slider, Automatic Clean Fender
6.13 Disassembly of rail bracket, slider, automatic clean fender Step1: Remove the door from oven (please refer to Point 6.3.1), and put it horizontally on the table. Step2: Remove the screws connected the rail bracket and the cavity, and take it out from the clipping hole. -
Page 33: Troubleshooting
Troubleshooting OPERATIONAL DIFFICULTIES AND POSSIBLE CAUSES Symptom Cause / Source Troubleshooting Checks Solution User Actions / Solutions Oven is set for delay timed Oven will turn on automatically at Oven will turn on automatically at Oven will turn on automatically at cooking preset time. -
Page 34: Error Codes
8. Error codes Displayed Error code Description / Failure Criteria Software Logic Description Solution (1) Turn off the power, 1 minute later, Er-1 Temperature sensor open circuit All load stopped working turn on the power, checked whether display error code or not. (2) Turn off the power, open the oven Er-2 Temperature sensor short circuit... - Page 36 Model 65DAE40041 型 Part name Chinese Part name English 序 中文 称 英文 称 腔体组件 cavity ass'y 电源板 Power PCB 温控器250℃ thermostat 温控器125℃ thermostat 电源线 power cord 炉门组件 door ass'y 控制板组件 control panel ass'y 铰链支架 左 fixed frame(Left) 紧固件组件 fastener assembly 外罩...
- Page 37 腔体 cavity 发热管罩组件 under heating element cover 热风发热管 turbo heating element 热风扇 covection fan blade 热风电机罩 convection motor cover 炉灯 lamp 炉门组件 door ass'y 门铰链组件 door hinge ass'y 门内窗玻璃 door inner glass 门体玻璃卡位弹片 door galss spring piece 门体 装 件 左 door frame top decorate(left) 门体...
- Page 38 Part Code 量 物料编码 see below expansion 17171100000320 17471100000222 17471100000217 17471100000217 see below expansion see below expansion 12971100000534 12971100001049 12271100002382 12271100000530 12271100000536 17471100000141 12271100002353 12271100002368 12271100002372 12171100000295 12271100002346 12971100000470 12271100001474 12671100000394 12271100000413 12971100000500 12971100000563 12271100003072 17471100000574 12971100000628 12971100002664 17471100000149 12271100003042 12471100000008 12471100000049...
- Page 39 12271100001613 17471100001480 17471100000261 12971100001067 12271100004265 17471100000586 12971100000870 12571100A01257 12971100000386 12171100000708 12171100000715 12271100004966 12671100000096 12171100000172 12971100000484 12971100000436 12971100000485 12971100000439 12571100A03037 12971100000926 17171100000181 17171100000084 12171100000390 12271100004305 12171100000390 12971100004510...
