BUILT-IN OVEN
USER MANUAL
7NM30E4
Advertisement
Related Manuals for Midea 7NM30E4
Summary of Contents for Midea 7NM30E4

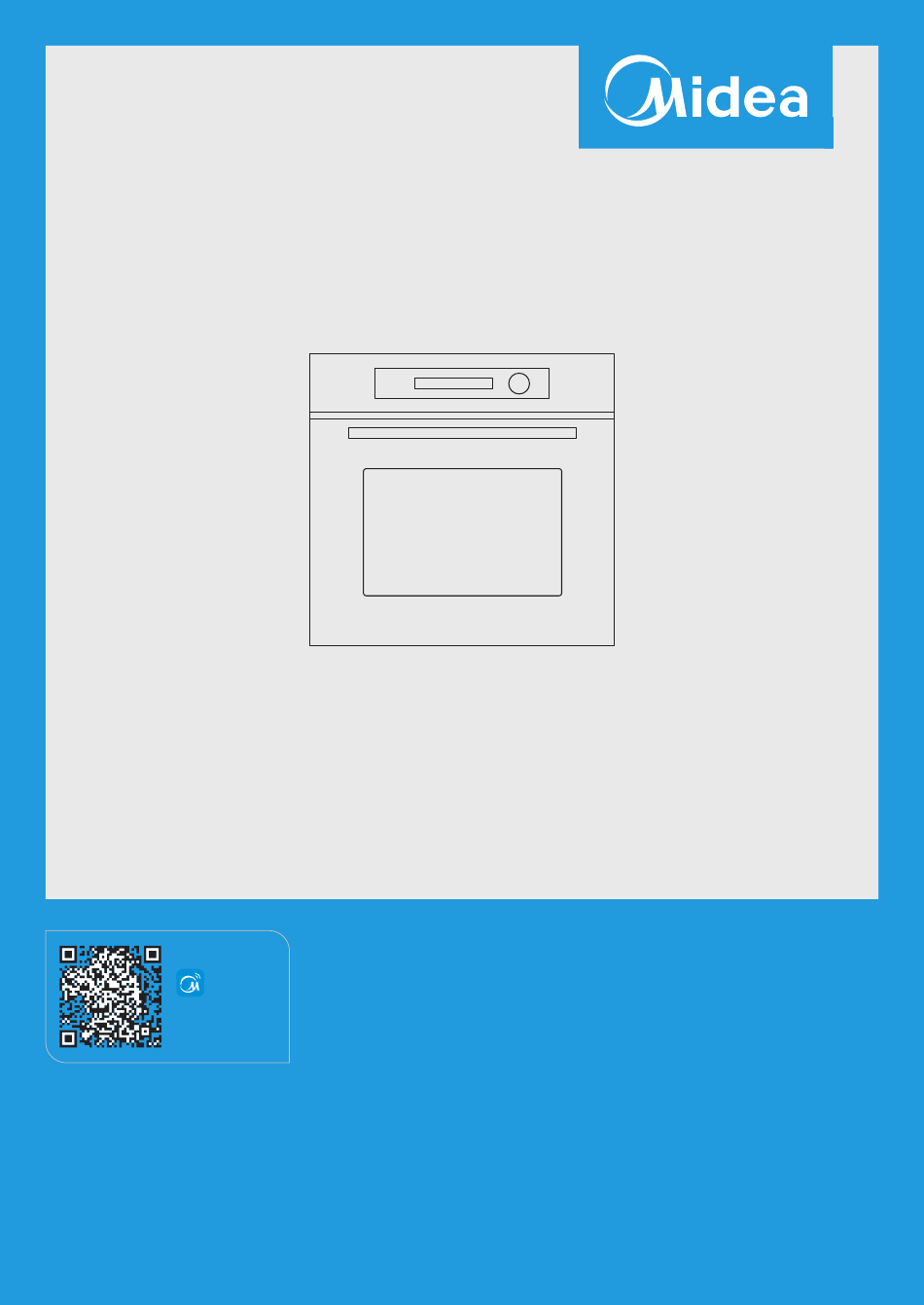

- Page 1 BUILT-IN OVEN USER MANUAL 7NM30E4 MSmartHome Download the app & activate product Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement.
-
Page 3: Table Of Contents
THANK YOU LETTER Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and CONTENTS THANK YOU LETTER SAFETY INSTRUCTIONS SPECIFICATIONS PRODUCT OVERVIEW QUICK START GUIDE... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Intended use The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. - Page 5 WARNING The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a...
- Page 6 Hereby, [Guangdong Midea Kitchen Appliances Manufacturing Co.], declares that this [7NM30E4] is in compliance with the essen- tial requirements and other relevant provisions of RE Directive 2014/53/EU and other relevant provisions of the Radio Equipment Regulations 2017.
- Page 7 ATTENTION When the oven is first switched on, it may give o an unpleasant smell. This is due to the bonding agent used for the insulating panels within the oven. Please run the new empty product with the conventional cooking function, 250°C, for 30 minutes to clean oil impurities inside the cavity.
-
Page 8: Specifications 0
SPECIFICATIONS Model 7NM30E4 Type of oven Built-In Oven Power Supply 220-240V~ , 50Hz-60Hz Electric Power 3.2kW Lamp Power Product Size Number of cavities Heat source Electricity Energy consumption with a standard load 1.05kWh/cycle* Energy consumption with a standard load 0.51kWh/cycle* Energy E ciency Index 59.8... -
Page 9: Product Overview
PRODUCT OVERVIEW Oven When taking out food, please wear heat-insulating gloves to prevent burns! Pay attention to the hot air when opening the oven door. Control panel Ventilating openings Mounting fixing hole Mounting fixing hole Oven door Handle Accessories Grill rack x1 Grill tray x1 Grill food or place heat-resistant Cooking food or receiving food scraps... - Page 10 Accessories Use For the oven to work properly, the grill rack and grill tray should only be placed between the first and fifth levels. When used together, place the grill tray under the grill rack. When cooking a large volume of food, you can remove the brackets on both sides of the cavity and put the food and grill tray at the bottom of the oven.
-
Page 11: Quick Start Guide
QUICK START GUIDE Oven Control Panel icon Introduction Cancel Cancel the current setting and return to the standby state. Press and hold for 3 seconds to enter the connection network settings. Wireless Press and hold for 8 seconds to disconnect the network. Press this key briefly to turn the lamp on or o . - Page 12 Mode Introduction The top and bottom heating elements work together to provide convectional cooking. Conventional In convection mode, the fan turns on automatically to provide even heat for single or multi-layer baking. This is particularly suitable for baking Convection foods that require even colouring. The combination of the fan and the top and bottom heating elements provides more even heat penetration and colouration, primarily for cooking meat.
-
Page 13: Automatic Menu
High-temperature menu Code Menu name Mode Time Temperature Preheat Honey glazed pork hock 25min 210℃ Panko-Breaded Pork Chops 15min 260℃ Jugged Duck Legs 20min 250℃ Pork marsala with sautéed 10min 280℃ spinach and mushroom Roast chicken 20+25min 250--180℃ 90+15min 110--280℃ St. - Page 14 Automatic menu Code Menu name Mode Time Temperature Preheat Roasted Salmon with 6min 220℃ watercress salad and caviar Salt-crusted sea bass 13min 250℃ Sou é 13min 200℃ Chocolate delight 40min 150℃ Pizza with Tomatoes, 7min 250℃ Mozzarella and Basil 50min 180℃...
-
Page 15: Product Installation
PRODUCT INSTALLATION Cupboard Diagram (Standing Cupboard) Air vents 6 0 0 5 6 0 M in . 5 0 ≥ Minimum bottom ventilation area: 250 mm 2 Native appliance ≥ Reserve 5 mm for the door panel at the top and bottom respectively. - Page 16 Cupboard Diagram (Ground Cupboard) Air vents . 5 0 M i n 5 6 0 Minimum bottom ventilation area: 250 mm ≥ Native appliance Reserve 5 mm for the door panel at the top and bottom respectively. ≥ Reserve 20 mm for the door panel on the left and right respectively.
- Page 17 Installation Important Instructions Content that means [mandatory] The safe operation of this appliance can only be guaranteed if it has been installed to a professional standard by these installation instructions. The installer shall be liable for any damage resulting from incorrect installation. The entire installation process requires two professional installers.
-
Page 18: Installation Steps
Installation steps Please customize the cupboard according to the "Cupboard Diagram". Before installation, please check for normal power sockets and appropriate grounding, and check whether the cupboard dimension meets the installation requirements. Place the appliance in designated locations in the kitchen, install it in a vertical cupboard, and connect the power supply. - Page 19 Accessory installation (Only for some models) 90°...
-
Page 20: Operation Instructions
OPERATION INSTRUCTIONS First Use Before using it for the first time, please clean the oven and accessories to a certain extent. Remove the oven packaging shipping protection parts. Remove all acces- sories (eg: baking trays, grills, foam, etc.) from the cavity. Thoroughly clean the attachment with soapy water and a rag or soft brush. -
Page 21: Baking Function
Baking function In standby state, turn the knob to select the mode. Press the " " key or " " key and turn the knob to adjust the temperature. Press the " " key and turn the knob to adjust the time. Press the "... -
Page 22: Cleaning And Maintenance
CLEANING AND MAINTENANCE Cleaning Disconnect the power supply before cleaning and maintenance. In order to ensure the life of the oven, it should be thoroughly cleaned frequently. The cleaning steps are as follows: After cooking, wait for the oven to cool completely. Remove oven accessories, rinse with warm water and dry. -
Page 23: Lamp Replacement
Lamp Replacement Switch o and disconnect the power from the oven. Ensure that the internal parts are cool before touching the internal parts. Remove the lamp cover by turning it counter-clockwise (note, it may be sti ), and replace the bulb with a new one of the same type. Insert the new bulb, which should be resistant to 300°C. -
Page 24: Troubleshooting
TROUBLESHOOTING If the problem cannot be solved or other problems occur, please contact the after- sales service. Problem Possible reason Solution Power is not connected connect power supply The main power switch is Turn on the power switch Unable to start not turned on The oven door is not closed Close the oven door... -
Page 25: Disposal And Recycling 2
DISPOSAL AND RECYCLING Important instructions for the environment Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with the EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life.
