Summary of Contents for SHOWTEC XB-Dreamer DMX V2

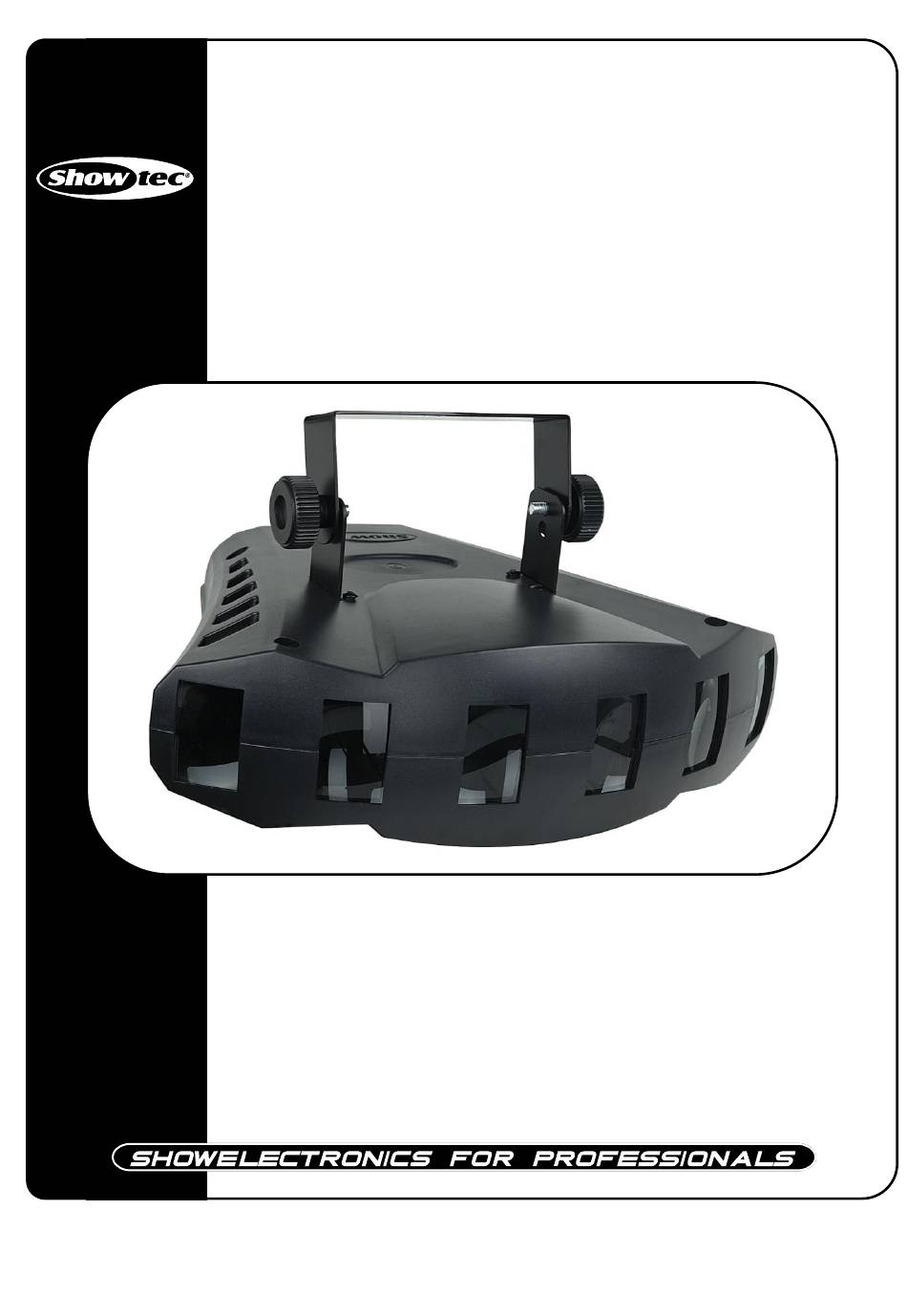

- Page 1 XB-Dreamer DMX ORDERCODE 43069...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec XB-Dreamer Product Guide ™ Warning.................…...……………..…………………………….…………. Safety-instructions………………………………………………………………………………………………………. Operating Determinations.…………………………………………………………………………………………… Rigging.…………………………………………………………………………………………………………………… Return Procedure……………………………………………………………………………........Claims……………………………………………………………………………............Description................…...………………………………………….………… Features and Overview ………………………………...….……………….………….……….……….…………… Backside…………………………………………………...…...….……………….…………………...………………. Installation................…...……………………………………………………. Set Up and Operation..............……..……………………………………………. Control Modes…………………………………………………………………………………………………….……. One XB-Dreamer (Auto Program 1-10)……..……………………………………………….……………….. One XB-Dreamer (Sound control)………………………………………………….………………………….. Multiple XB-Dreamers (Master/Slave control).……………………………..……………………………….. -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Showtec XB-Dreamer DMX with IEC powercable 0,9m • User manual LED Expected Lifespan LEDs gradually decline in brightness over time. - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
OPERATING DETERMINATIONS • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light-output and the illuminated surface must be more than 1 meter. •... -
Page 7: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description
Description of the device Features The Showtec XB-Dreamer is a light effect with very high output and great effects. • Blackout/static/strobe • Individual control of red, green and blue LEDs within each cluster (6 total) • Mount multiple units together with adjustable, optional bracket (XB-BRACKET) •... -
Page 9: Backside
Backside Fig. 2 2) Safety Eye 6) IEC Powerconnector + Fuse 1A/250V 3) Dipswitches 7) Earth connection 4) DMX Out 8) Built-in Microphone 5) DMX In 9) Audio Sensitivity Installation Remove all packing materials from the XB-Dreamer. Check that all foam and plastic padding is removed. -
Page 10: Control Modes
Control Modes There are 4 Modes: 1) Auto Program 1-10 Sound-controlled 3) Master/Slave 4) DMX512 (10 Channels) One XB-Dreamer (Auto Program 1-10) 1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. When the XB-Dreamer is not connected by a DMX-cable, it functions as a stand-alone device. -
Page 11: One Xb-Dreamer (Sound Control)
One XB-Dreamer (Sound-control) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. Plug the end of the electric mains power cord into a proper electric power supply socket. The dipswitces have no influence during the Sound controlled modus. When the device is not connected by a DMX-cable, it functions as a stand-alone device. -
Page 12: Multiple Xb-Dreamers (Dmx Control)
Multiple XB-Dreamers (DMX Control) 1. Fasten the effect light onto firm trussing Leave at least 1 meter on all sides for air circulation. Always use a safety cable (ordercode 70140 / 70141). 3. Use a 3-p XLR cable to connect the XB-Dreamers and other devices. 4. -
Page 13: Dipswitch Setting For Dmx Mode
Addresses on the controller are set by flipping the appropriate DMX dip switches #1 - #9. You need to know that DMX address settings are the sum of the dip switch values. A standard DMX address for a Showtec XB-Dreamer, which has 8 channels is as follow: Example... -
Page 15: Fixture Linking
Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 16: Dmx Channels
DMX Channels Channel 1 – Colors 0-14 Blackout 15-19 Red + Blue 20-24 Green + Blue 25-29 Red+Green 30-34 Single Red + single Blue / Double Green + single Blue 35-39 Single Red + single Green / Single Green + single Blue 40-44 Double Green + single Red / Single Green + single Blue 45-49... -
Page 17: Maintenance
Maintenance The Showtec XB-Dreamer requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and a soft cloth. -
Page 18: Product Specifications
Product Specification Model: Showtec XB-Dreamer Power: AC110-230V, 50Hz/60Hz Power consumption: 24 Watt Light source: 192 LEDs (72 Red, 72 Green, 48 Blue) Coverage angle: 96° 3-pin DMX In and 3-pin DMX Out DMX-controlled 10 DMX Channels Music-controlled via built-in microphone...
